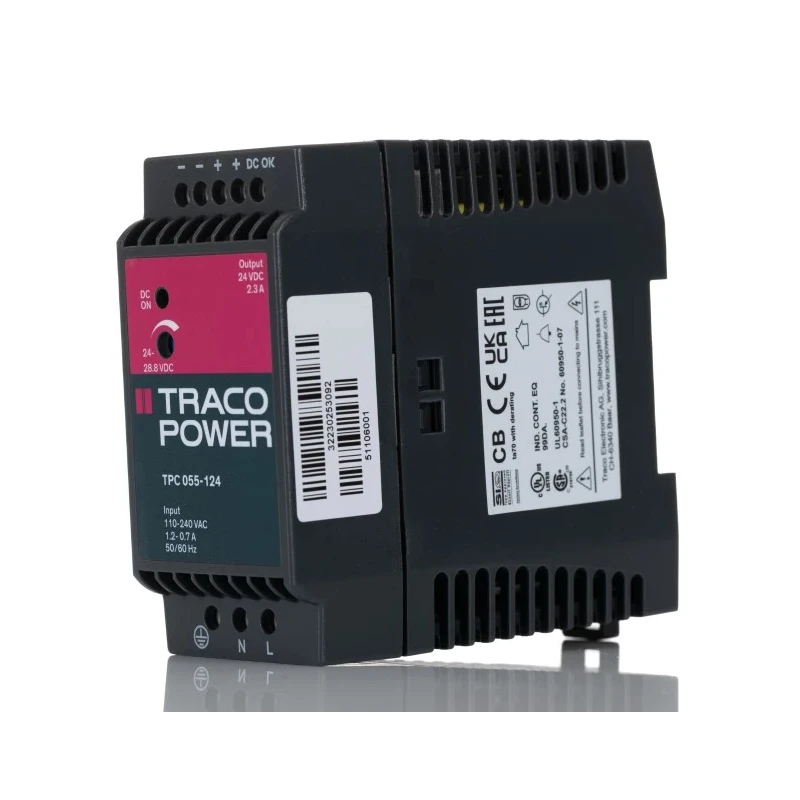

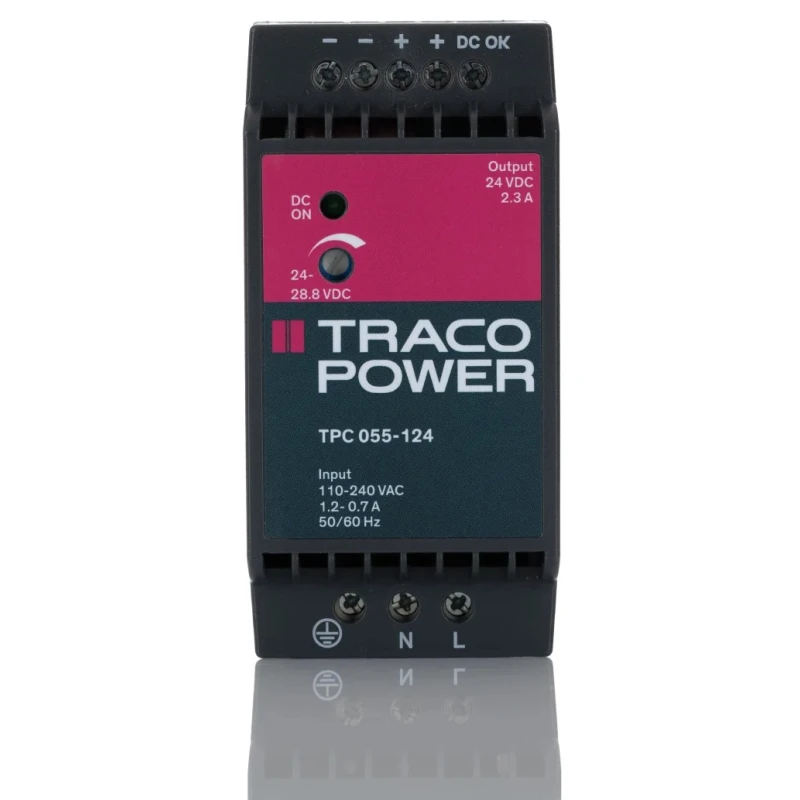

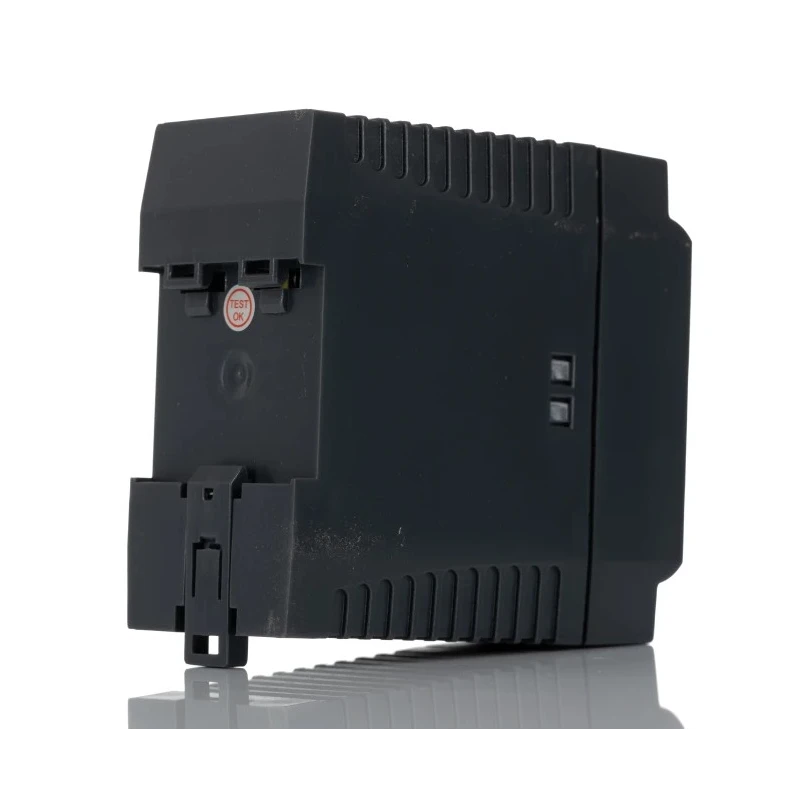

TRACOPOWER TPC Switched Mode DIN Rail Power Supply 85-264V AC/DC Input 28.8V DC 2.3A Output 55W TPC 055-124
Specifications
| Country of Origin | China |
|---|---|
| Brand | TRACOPOWER |
| Power | 55W |
| Efficiency | 87% |
| Height | 90mm |
| Model | TPC 055-124 |
| Depth | 96.5mm |
| IP Rating | IP20 |
| Width | 45mm |
| Series | TPC |
| Output Current | 2.3A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 375, 264V dc |
| Electrical Phase | 1 |
| Standards/Approvals | EN 60950-1 |
| Maximum Output Voltage | 28.8V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Supports wide input voltage range for industrial and commercial applications.
- Compact DIN rail mount design measures 45mm x 90mm x 96.5mm for space-constrained setups.
- High efficiency of 87% minimizes energy loss and heat generation.
- Output voltage is adjustable within 24-28.8V DC ensuring precise power delivery.
- Provides built-in short circuit and overload protection for enhanced reliability.
- Operates reliably between -25°C and 70°C in harsh environments.
- Low ripple and noise of 100mV peak-to-peak protects sensitive electronics.
- Designed for heavy-duty applications such as machine control and industrial automation.
Product Description
TRACOPOWER TPC 055-124 is a high-reliability switched mode DIN rail power supply providing 55 watts of output power with a maximum output voltage of 28.8V DC and output current of 2.3A. It accepts a wide input voltage range from 85 to 264V AC, and up to 375V DC maximum input voltage, making it suitable for various industrial and commercial power sources.
This power supply features a compact form factor with dimensions of Width 45mm, Height 90mm, and Depth 96.5mm, allowing installation in constrained spaces commonly found in electrical panels and control cabinets. It complies with EN 60950-1 standard ensuring safety and reliability.
The device offers adjustable output voltage, enabling adaptation to dynamic energy requirements. It incorporates comprehensive protections including short circuit and overload safeguards to prevent damage to connected equipment.
With an operating temperature range from -25°C up to 70°C, the TPC 055-124 is designed for harsh industrial environments, supporting applications such as production lines, industrial automation systems, and commercial office power needs.
The power supply operates at an efficiency of 87%, which reduces power consumption and heat generation. It produces low ripple and noise output (100mV peak-to-peak) for interference-free DC power supply, contributing to prolonged equipment life.
Its IP20 rating confirms adequate protection against solid objects while being suitable for indoor panel applications. The product is manufactured in China to strict quality controls, delivering more than 1.7 million hours mean time between failures for dependable performance.
Supports wide input voltage range for industrial and commercial applications. Compact DIN rail mount design measures 45mm x 90mm x 96.5mm for space-constrained setups. High efficiency of 87% minimizes energy loss and heat generation.
Output voltage is adjustable within 24-28.8V DC ensuring precise power delivery. Provides built-in short circuit and overload protection for enhanced reliability. Operates reliably between -25°C and 70°C in harsh environments.
Low ripple and noise of 100mV peak-to-peak protects sensitive electronics. Designed for heavy-duty applications such as machine control and industrial automation.
This TRACOPOWER DIN rail power supply is ideal for use in production lines, industrial automation, and commercial offices. For reliable power distribution in electrical panels and control systems, it represents a robust and efficient solution.
Explore more power supply options and accessories in the Power Supplies & Transformers category on EnvMart to complete your industrial and commercial power management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an output power of 55 watts.
It accepts a wide input voltage range from 85V AC to 264V AC, and up to 375V DC maximum input voltage.
The maximum output voltage is 28.8V DC.
It operates with an efficiency of 87%, which helps minimize energy loss and heat generation.
The dimensions are 45mm in width, 90mm in height, and 96.5mm in depth.
Yes, it features built-in short circuit and overload protection for enhanced reliability.
It produces low ripple and noise of 100mV peak-to-peak, which protects sensitive electronics.
It complies with the EN 60950-1 standard, ensuring safety and reliability.
This unit is designed for DIN rail mounting, making it suitable for installation in electrical panels and control cabinets.
The output current is 2.3A.
It is manufactured in China under strict quality controls.
