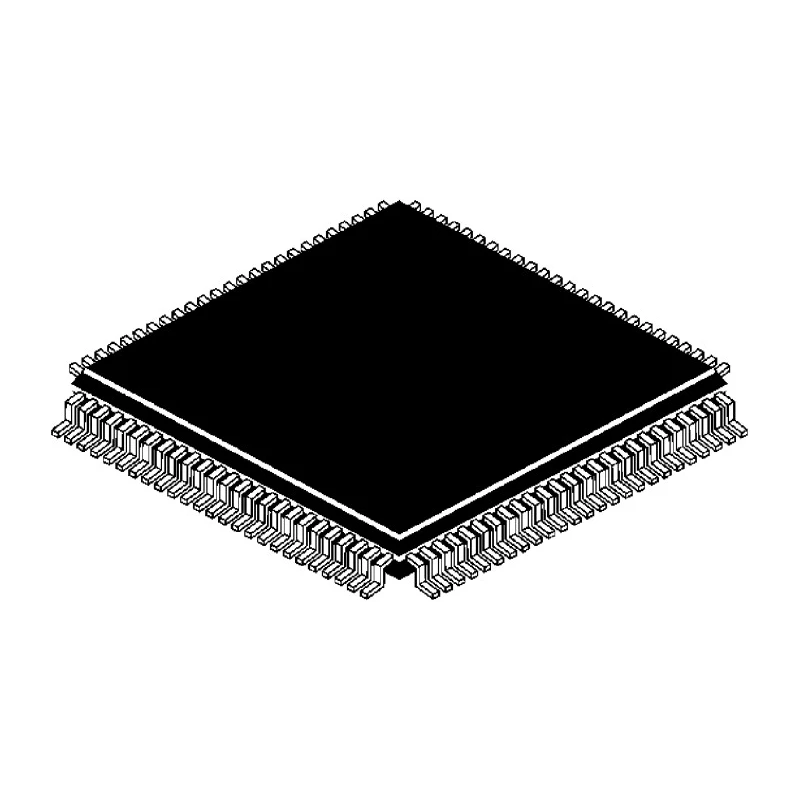

STMicroelectronics 32 bit ARM Cortex M4 STM32F3 Microcontroller 72 MHz 256kB FLASH 100-Pin LQFP STM32F302VCT6
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 14.2mm |
| Model | STM32F302VCT6 |
| Width | 14.2mm |
| Mount Type | Surface |
| Series | STM32F3 |
| Communication Interface | USB FS and CAN 2.0B |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 40kB |
| Pin Count | 100 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 488mW |
| Minimum Supply Voltage | 2V |
| Device Core | ARM Cortex M4 |
| Program Memory Size | 256kB |
| Maximum Clock Frequency | 72MHz |
| Analogue Comparators | 4 |
| Number of Timers | 8 |
| Instruction Set Architecture | RISC |
| ADCs | 2 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 12 Bit |
| Memory architecture for RAM | CCM (Core Coupled Memory) |
Key Features
- Features 32-bit ARM Cortex M4 core operating at 72 MHz clock speed.
- Includes 256kB FLASH memory and 40kB RAM with Core Coupled Memory (CCM).
- Supports USB FS and CAN 2.0B communication interfaces.
- Operates at supply voltage between 2V to 3.6V and temperature range -40°C to 85°C.
- Compact 100-Pin LQFP package measuring 14.2mm x 14.2mm x 1.45mm.
- Contains 8 timers and supports motor control timers up to 144 MHz.
- Program memory type is FLASH with RISC instruction set architecture.
Product Description
STMicroelectronics STM32F302VCT6 is a high-performance 32-bit ARM Cortex M4 microcontroller from the STM32F3 series, designed for mixed-signal and motor control applications. Operating at 72 MHz, it integrates 256KB of FLASH program memory and 40KB of RAM with CCM architecture for enhanced speed.
This microcontroller includes advanced analogue peripherals such as a 12-bit DAC, dual 12-bit ADCs capable of multisampling (up to 18 MSPS in interleaved mode), and four fast analogue comparators with 50ns response time. It features programmable gain amplifiers and 8 flexible timers including motor control timers with timing resolution better than 7ns.
Communication capabilities include USB Full Speed and CAN 2.0B interfaces, enabling integration into complex embedded systems requiring reliable data exchange. The device supports a wide operating supply voltage from 2V to 3.6V and is rated for industrial temperature ranges from -40°C to 85°C.
The STM32F302VCT6 comes in a compact 100-pin LQFP package, measuring 14.2mm x 14.2mm with a 1.45mm height profile, suitable for surface mounting in compact embedded system designs.
This microcontroller is well suited for industrial automation, motor control, consumer electronics, and communication applications requiring digital signal processing and floating point computations.
Features 32-bit ARM Cortex M4 core at 72 MHz clock frequency. Includes 256kB FLASH and 40kB RAM with CCM architecture. Integrated 12-bit DAC, dual 12-bit ADCs, and four analogue comparators. Communication interfaces include USB FS and CAN 2.0B.
Operating voltage from 2V to 3.6V and industrial temperature range. Compact 100-pin LQFP surface mount package. Explore a wide selection of high-quality Microcontrollers at EnvMart to support your embedded design and industrial automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM32F302VCT6 operates at a maximum clock frequency of 72 MHz.
This microcontroller includes 256 kB of FLASH program memory.
It supports USB Full Speed (FS) and CAN 2.0B communication interfaces.
The STM32F302VCT6 operates at a supply voltage between 2V and 3.6V.
This microcontroller is rated for an operating temperature range of -40°C to 85°C.
The STM32F302VCT6 features 8 timers, including motor control timers.
It comes in a compact 100-pin LQFP package, measuring 14.2mm x 14.2mm x 1.45mm.
It includes 40 kB of RAM with Core Coupled Memory (CCM) architecture.
This microcontroller integrates a 12-bit DAC, dual 12-bit ADCs, and four fast analogue comparators.
The maximum power dissipation for the STM32F302VCT6 is 488 mW.
It uses a RISC instruction set architecture.
This microcontroller is well suited for industrial automation, motor control, consumer electronics, and communication applications.
