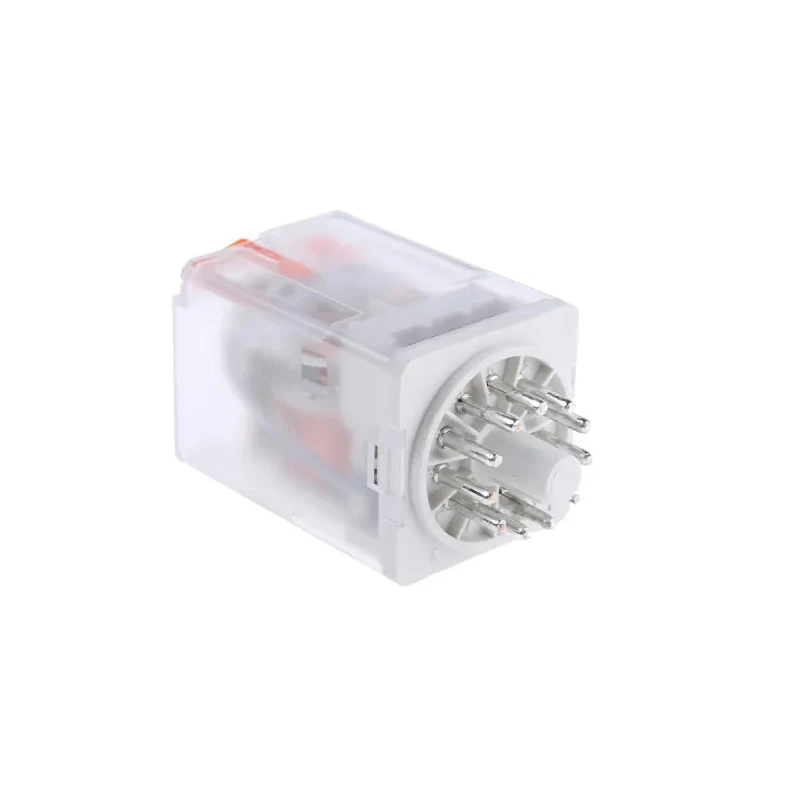

Relpol Power Relay 230V ac Coil 10A Switching Current 3PDT R15-2013-23-5230-WTL

Relpol R15-2013-23-5230-WTL is a high-quality power relay designed for general industrial and automation use. Featuring a 230V alternating current coil and 10A switching current capability, this relay is well-suited for controlling electrical circuits requiring reliable switching performance.

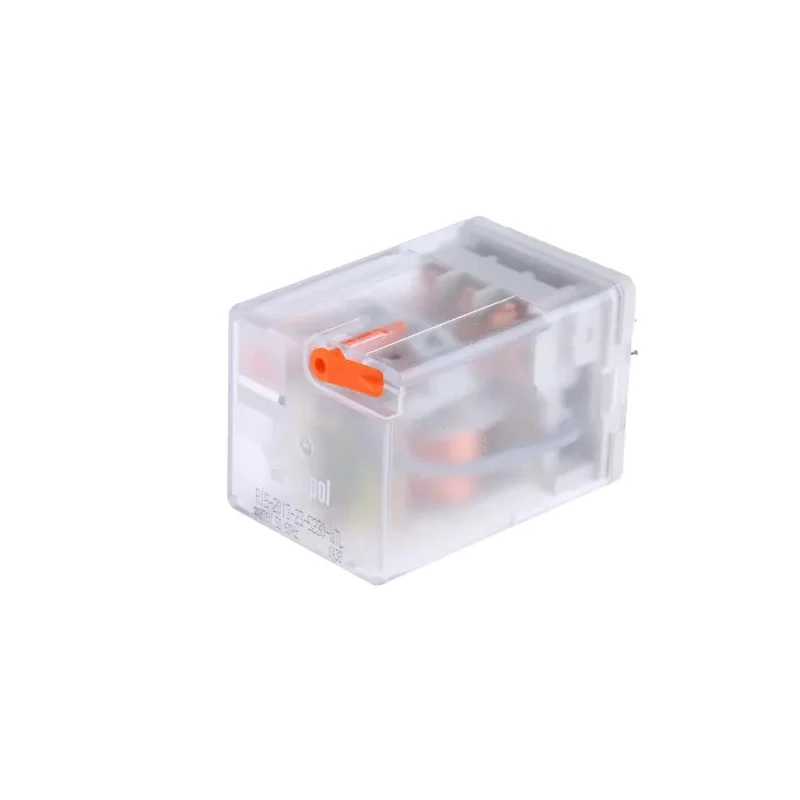

The device incorporates a 3PDT contact configuration, allowing for triple pole double throw switching, enhancing versatility in circuit applications. Its compact miniature dimensions of 54.4mm width, 35mm height, and 35mm length facilitate mounting onto standard plug-in sockets with WT features including a mechanical indicator and lockable front test button for safe operation and testing.

The contacts are constructed from silver alloy, ensuring excellent electrical conductivity and robust performance over prolonged use. Suitable for operation within a temperature range from -40°C to 55°C, it supports industrial environments with varying conditions. The coil resistance is 7.1 kilo-ohms, consuming 2.8 watts of power, optimized for energy efficient operation.

This relay complies with international certifications including CSA, UL, and UR standards and is RoHS compliant, promoting environmental safety by employing cadmium-free contacts. The plug-in terminal design simplifies installation and enhances maintenance accessibility.

Reliable 230V AC coil voltage for consistent relay operation. Triple pole double throw (3PDT) contact configuration for flexible switching. Handles switching current up to 10 amperes for diverse electrical loads. Compact form factor suits plug-in mounting sockets with mechanical indicator and test functions.

Constructed with durable silver alloy contacts ensuring longevity and conductivity. Operational temperature range from -40°C to 55°C adapts to industrial environments. Low coil power consumption of 2.8 watts facilitates energy efficient use.

Certified to CSA, UL, and UR standards, ensuring compliance and safety. Environmentally friendly with cadmium-free contacts compliant with RoHS.

This industrial-grade power relay is ideal for automation, manufacturing, electrical systems control, and various industrial applications requiring dependable electromechanical switching. Its plug-in design and test features provide maintenance ease. For additional product resources, design documentation and 3D models are available to support integration into complex configurations.
