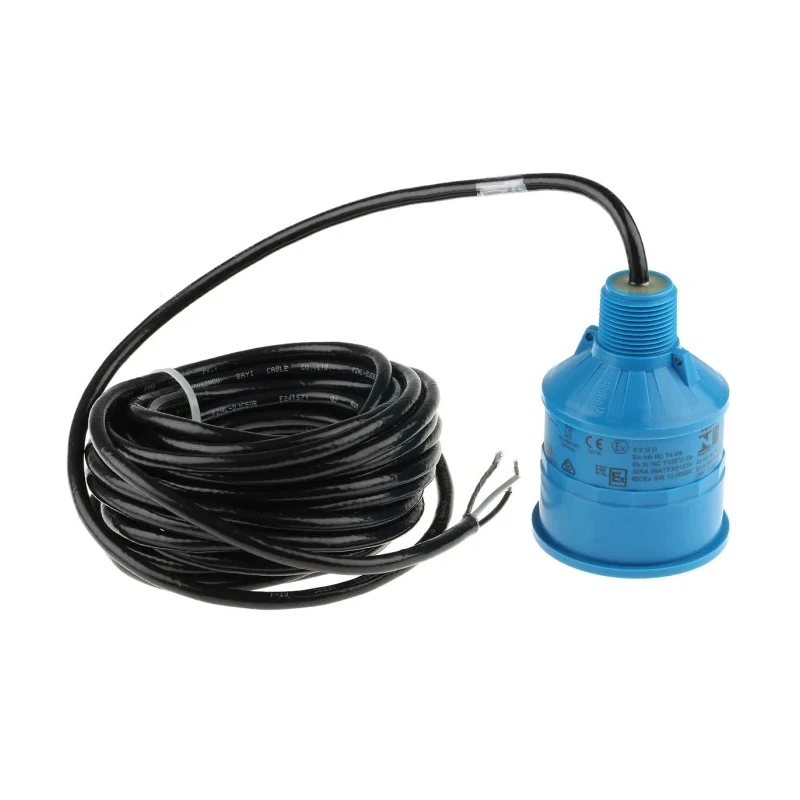

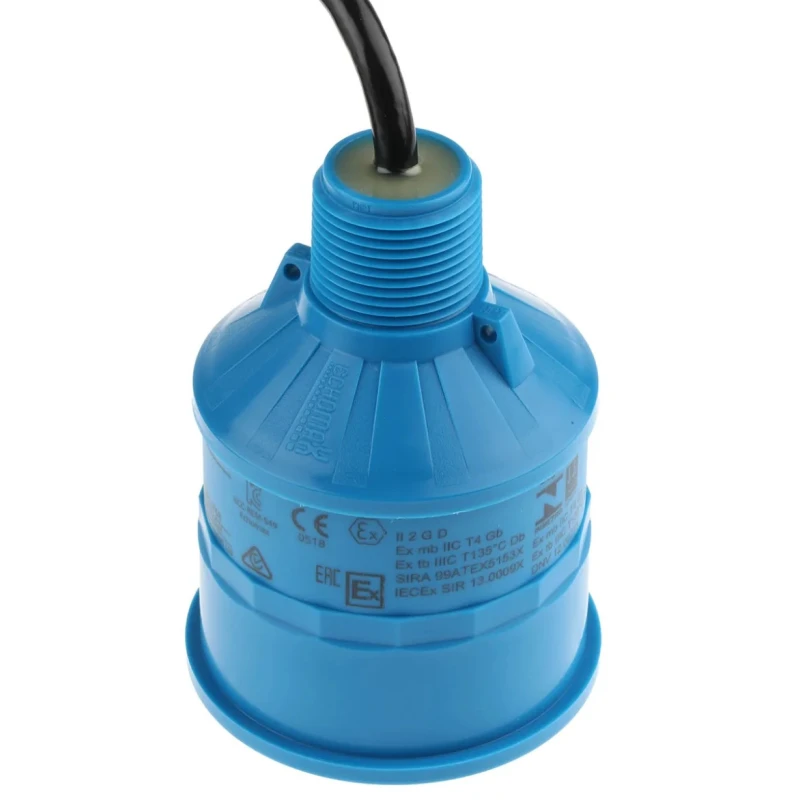

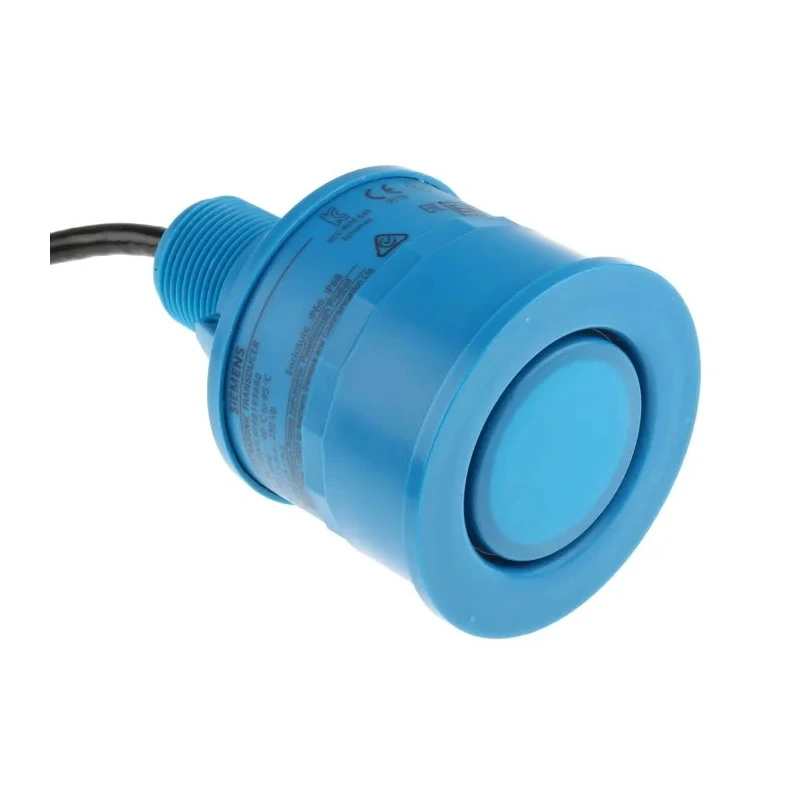

Siemens Echomax XPS Series Ultrasonic Level Transducer 44kHz Flange Mount ATEX Rated Polyvinylidene Fluoride 7ML1115-0CA30

Siemens 7ML1115-0CA30 Echomax XPS Series Ultrasonic Level Transducer with flange mount and ATEX certification is designed for high precision level measurement in industrial environments, capable of sensing liquids, solids, and slurries with a 44kHz ultrasonic frequency.

The transducer's housing is constructed from polyvinylidene fluoride (PVDF), offering excellent resistance to steam, chemicals, and harsh environmental conditions, thus ensuring durability and extended service life.

Equipped with integral temperature compensation, it automatically adjusts readings to maintain accuracy despite temperature fluctuations, delivering dependable and consistent measurements.

The device features a narrow 12 degree beam angle which minimizes interference and reflections from nearby structures, enhancing measurement reliability especially in confined or complex installations.

This level sensor is rated IP68, ensuring complete protection against dust ingress and water immersion, suitable for wet well environments and other demanding industrial applications.

With a maximum operating pressure of 8 bar and a broad temperature range of -20°C to 95°C, the transducer is suitable for diverse industrial and manufacturing processes, including chemical processing, water treatment, and storage tank level monitoring.

The included 10 meter cable provides installation flexibility, allowing the sensor to be positioned at an optimal distance from control systems for ease of integration.

The ATEX hazardous area certification guarantees that this sensor is suitable for use in areas classified for explosive atmospheres, making it reliable for safety-critical industrial applications.

Operates at 44kHz frequency ensuring accurate liquid, solid, and slurry level sensing. Flange mount design facilitates secure and easy installation in tanks. Durable polyvinylidene fluoride (PVDF) housing resists steam and chemicals effectively.

ATEX certified for safe use in hazardous environments. Gasket made of polytetrafluoroethylene enhances sealing and chemical resistance. Wide operating temperature range from -20°C to 95°C suitable for challenging industrial conditions.

Maximum pressure tolerance of 8 bar enables reliable performance under varying pressures. Comes with a 10 meter cable for flexible positioning relative to the control system. IP68 rated for complete protection against dust and water ingress.

Ideal for industrial, manufacturing, construction, and water treatment sectors, this high-performance ultrasonic level transducer ensures precise measurements and robust operation. Explore more Siemens sensors and automation products on EnvMart for comprehensive solutions.
