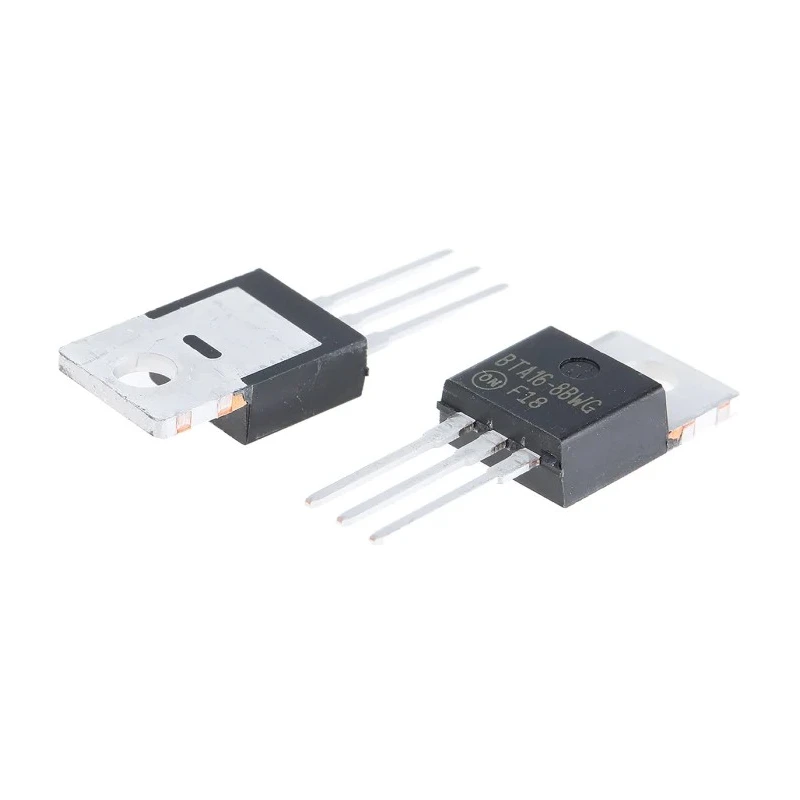

Littelfuse Through Hole 3-Pin TRIAC 800 V Gate Trigger 1.7 V BTA16-800BW3G

Littelfuse BTA16-800BW3G Through Hole 3-Pin TRIAC is a high-performance silicon bidirectional thyristor designed to provide efficient AC switching and control for industrial and electronic applications. This TRIAC supports an 800 V repetitive peak reverse voltage, making it suitable for switching currents up to 16 A average on-state current. It is packaged in a TO-220 form factor for easy through-hole mounting on PCBs.

The device features a low gate trigger voltage of 1.7 V, enabling precise gate control with a maximum gate trigger current of 50 mA. It can also sustain high surge currents up to 170 A, offering robustness during transient overloads. The maximum holding current of 60 mA provides stability in holding the device in the on-state.

Operating temperature ranges from -40°C to 125°C ensure reliable operation across wide ambient conditions. The TRIAC's compact size with a height of 15.75 mm and length of 10.28 mm facilitates easy integration into a variety of electronic circuits while meeting Pb-free environmental standards.

This Littelfuse TRIAC is ideal for industrial automation, AC motor control, light dimming, and heating control applications. It provides dependable switching and efficient performance in power semiconductor circuits.

Rated for 16A average on-state current. Silicon bidirectional thyristor configuration. TO-220 through-hole package type. 800 V rated repetitive peak reverse voltage. Maximum gate trigger current of 50 mA. Supports surge current rating of 170 A.

Wide operating temperature range from -40°C to 125°C. Peak gate power dissipation of 20 Watts. Compact dimensions: 15.75 mm height, 10.28 mm length. Lead-free, Pb-free environmental compliance. Explore more Littelfuse semiconductor components and TRIAC devices through EnvMart for industrial, electronic, and manufacturing use cases.
