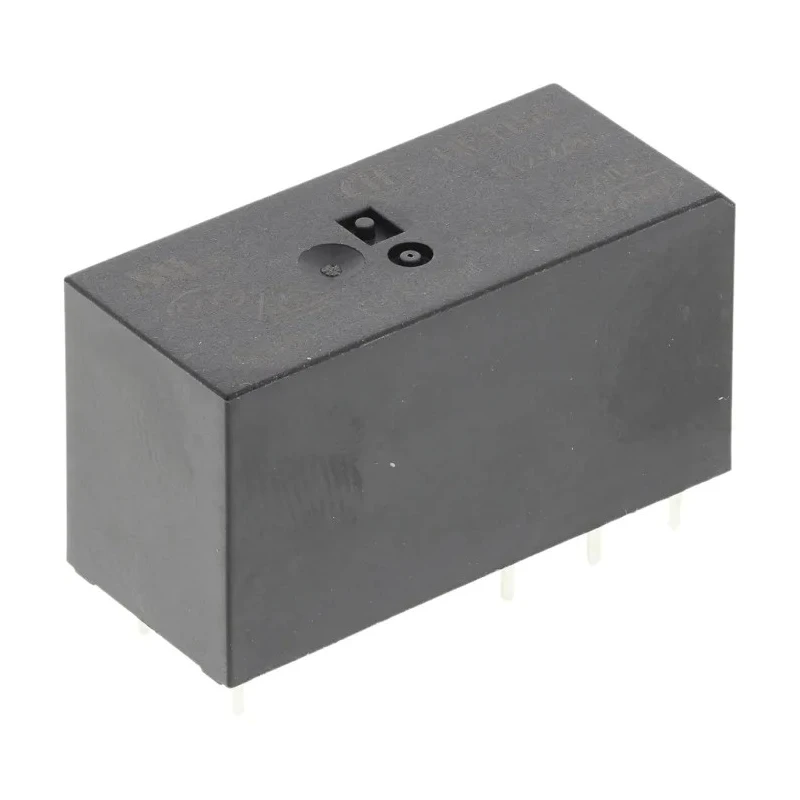

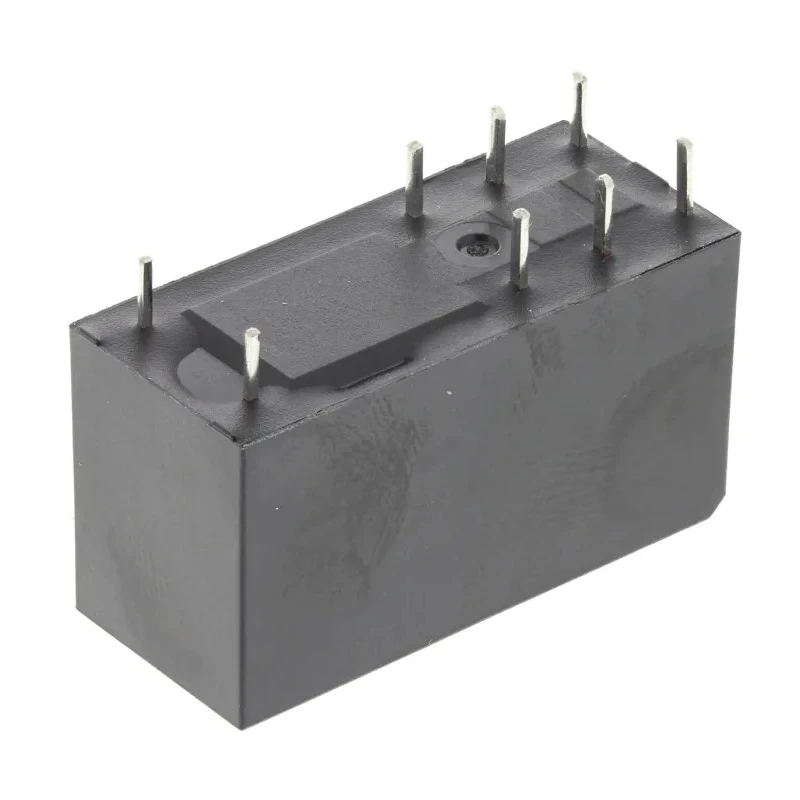

RS PRO 12V DC Coil PCB Power Relay, DPDT Contact Configuration, 8A Switching Current, Silver Alloy Contacts 8004441P
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 15.7mm |
| Length | 29mm |
| Model | 8004441P |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CQC, UR |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 400mW |
Key Features
- This relay has a coil power of 400 mW ensuring efficient operation.
- The contact material consists of durable silver alloy for reliable conductivity.
- The coil resistance is 360 Ω, supporting stable coil activation.
- Rated switching voltages reach up to 300 V DC and 440 V AC.
- It is designed for PCB mounting using solder terminals for easy integration.
- The relay houses two poles (DPDT), suitable for versatile circuit designs.
- Operating temperature range extends from -40°C to +85°C for wide application suitability.
- It is capable of 100,000 electrical operations and 100 million mechanical operations.
Product Description
RS PRO 8004441P PCB Power Relay is a non-latching relay with a 12V DC coil and DPDT (Double Pole Double Throw) contact configuration, ideal for power switching applications in industrial, automation, electronics, and control circuits. It offers a switching current capacity of 8A, making it suitable for controlling moderate power loads on printed circuit boards.
The relay features silver alloy contacts ensuring reliable switching performance and a coil power consumption of 400 mW with a coil resistance of 360 Ω. It supports switching voltages up to 300 V DC and 440 V AC, enabling usage in various electrical environments.
Designed to be mounted directly on PCBs, it uses solder terminals for stable electrical connections. The relay is compact with dimensions of length 29 mm, width 12.7 mm, and height 15.7 mm, allowing integration into tight circuit designs.
It operates within a temperature range of -40°C to +85°C and is flux proof, assuring durability and safety under typical industrial environments. The relay boasts a long lifespan of 100,000 electrical switching operations and up to 100 million mechanical operations.
This model complies with international standards including CQC, UR, RoHS, UL, and VDE certifications, meeting quality and environmental regulations. Its isolation voltage between coil and contacts is rated at 5 kV AC, ensuring safety in electrical isolation.
This relay provides reliable power switching solutions for automation, manufacturing, control panels, HVAC systems, and electronic equipment. PCB mounting capability streamlines assembly and reduces wiring complexity. DPDT configuration allows flexible circuit control options with two poles and double throw contacts.
Silver alloy contacts maximize conductivity and durability during switching cycles. Wide temperature range and flux proof design enable use in harsh industrial environments.
Choose RS PRO for dependable performance in electronics and electrical applications requiring compact, efficient, and durable PCB power relays. Explore more products in Power Relays on EnvMart for various technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It has a maximum switching current capacity of 8A.
The relay measures 29 mm in length, 12.7 mm in width, and 15.7 mm in height.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
The operating temperature range extends from -40°C to +85°C.
It uses solder terminals for PCB mounting.
The coil resistance is 360 Ω.
The contacts are made of silver alloy, ensuring reliable conductivity.
It supports a maximum switching voltage of 300 V DC and 440 V AC.
It is rated for 100,000 electrical operations.
The relay complies with CQC, UR, RoHS, UL, and VDE certifications.
The coil power consumption is 400 mW.
