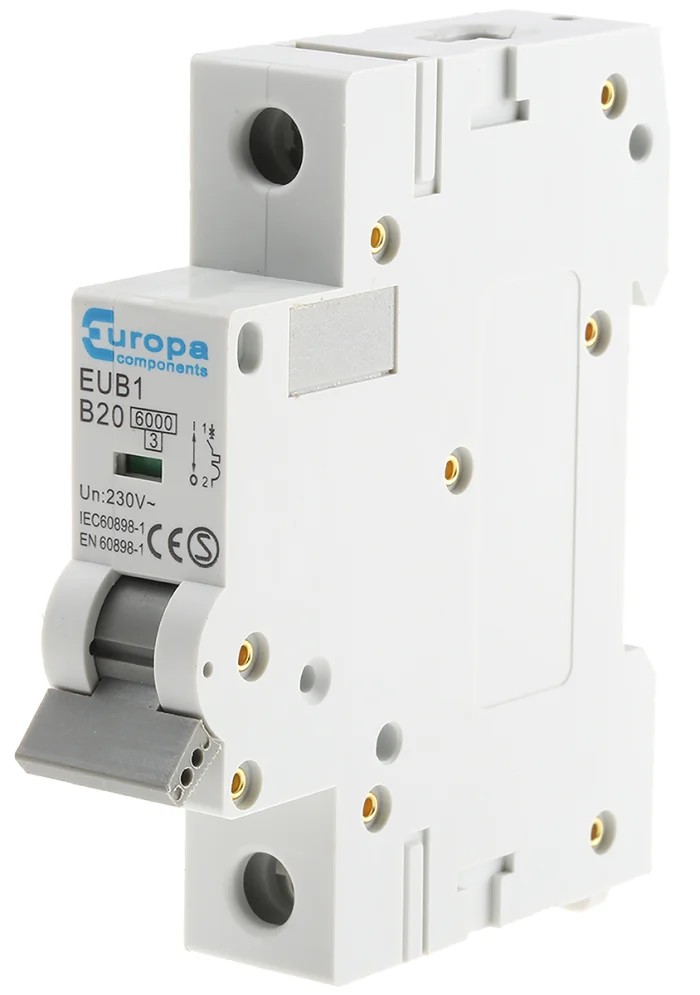

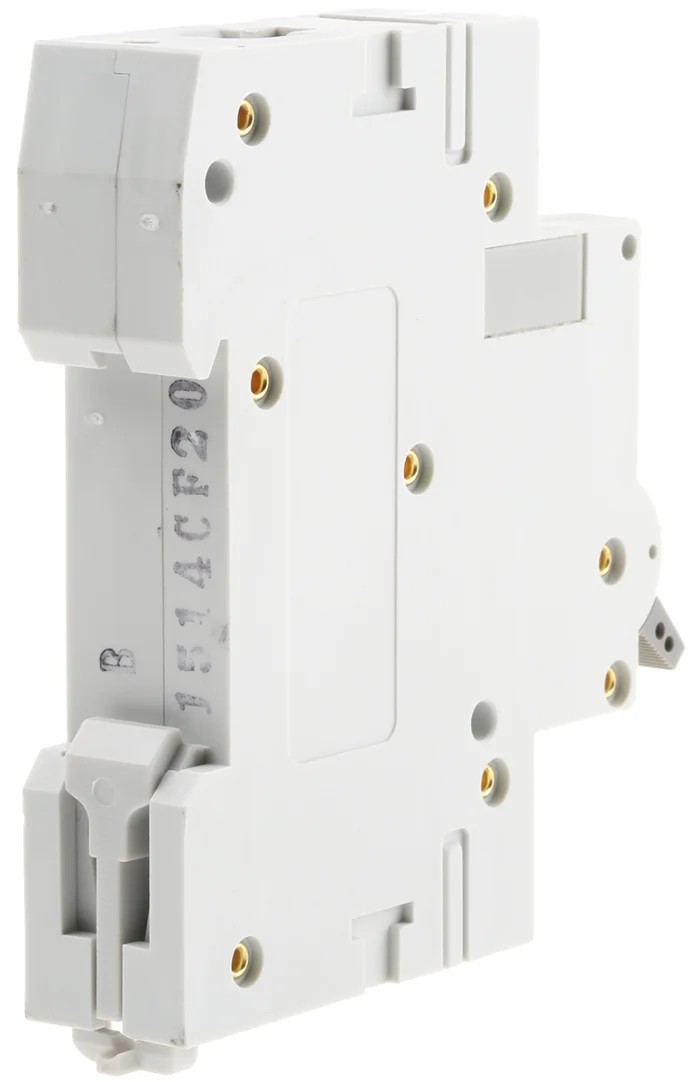

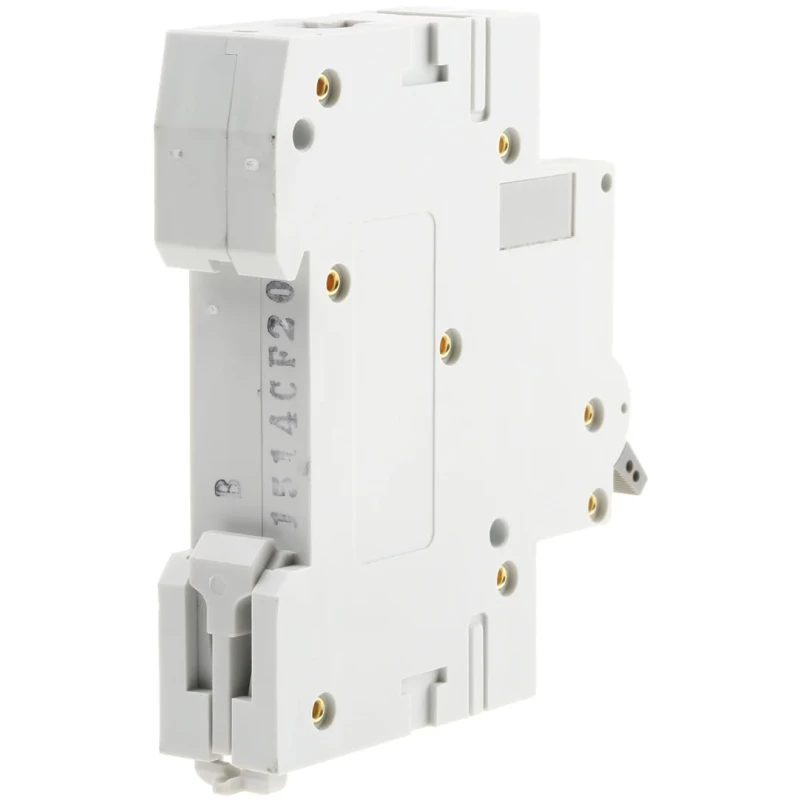

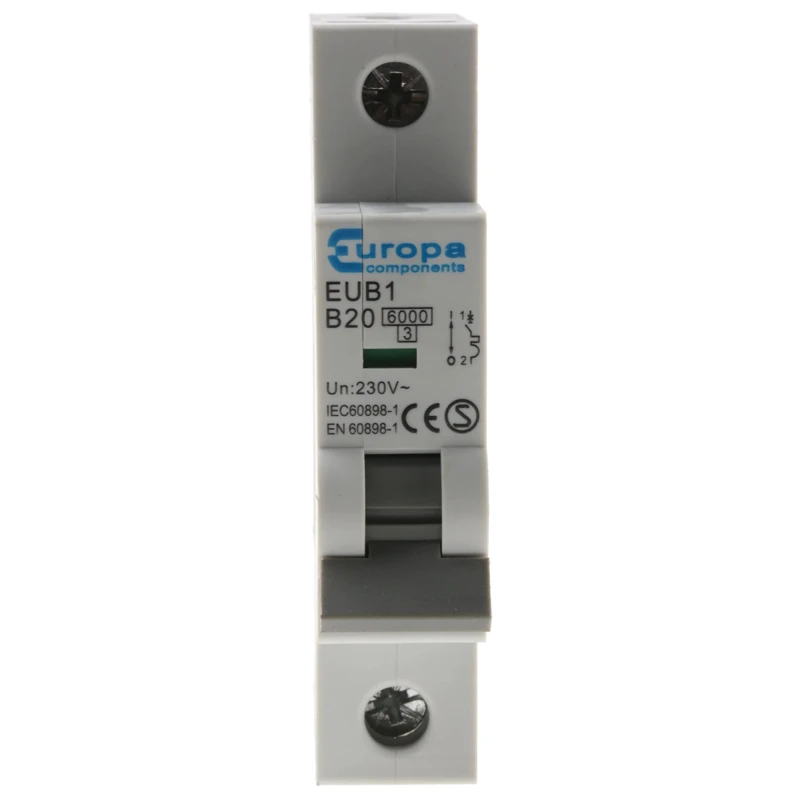

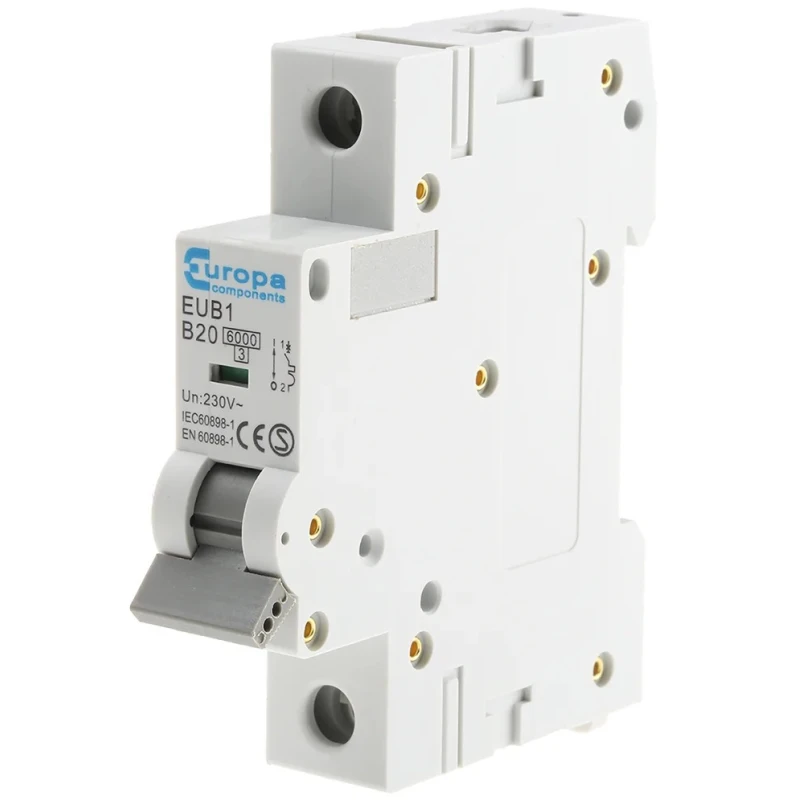

Europa Miniature Circuit Breaker 1-Pole 20A Type B 240V AC 6 kA Breaking Capacity EUB1
Specifications
| Country of Origin | China |
|---|---|
| Range | EUB1 |
| Brand | Europa |
| Height | 87mm |
| Model | EUB1 |
| Depth | 66mm |
| IP Rating | IP20 |
| Width | 18mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Terminal Capacity | 1mm2 to 25mm2 |
| Series | EUB1 |
| Terminal type | Tunnel |
| Breaking Capacity | 6kA |
| Number of Poles | 1 |
| Standards/Approvals | CE, EN 60898, IEC 60898, SEMKO |
| Rated AC Voltage | 240V ac |
| Tripping Characteristics | Type B |
| Reset Actuator Type | Toggle Switch |
| MK Electric Sentry 20A1P Curve BBrand | MK Electric |
| Crabtree Starbreaker B Series, EMBH, S800 MCB1P, 20A Curve BBrand | Crabtree |
| Eaton Memera ALB MCB, 1P, 20A Curve B, 6 kA Breaking CapacityBrand | Eaton |
Key Features
- Rated current of 20A ensures reliable circuit overload protection.
- Type B tripping characteristic for standard residential and light commercial use.
- Mounting on 35mm DIN Rail for easy installation.
- Compact dimensions with 18mm width, 87mm height, and 66mm depth.
- IP20 rating provides protection against finger contact and ingress of solid objects.
- Toggle switch actuator allows quick manual reset of the breaker.
- Terminal capacity supports conductors from 1mm² to 25mm².
- Complies with IEC 60898, EN 60898 standards and is CE and SEMKO approved.
Product Description
Europa EUB1 Miniature Circuit Breaker (MCB) Model EUB1 is a single-pole device designed for circuit protection applications in electrical installations with a rated voltage of 240V AC. It supports a current rating of 20A and features a Type B tripping characteristic, making it ideal for residential and light commercial environments. The device offers a robust breaking capacity of 6 kA, ensuring resilience during fault conditions.
Mounting on a 35mm DIN Rail enables straightforward installation in electrical panels, while the compact form factor of 18mm width, 87mm height, and 66mm depth saves space within consumer units or distribution boards. Its IP20 rating protects against accidental contact and dust ingress, promoting user safety.
The toggle switch actuator facilitates quick manual resetting of the breaker after tripping events. Terminal connections accommodate conductors ranging from 1mm² to 25mm², providing versatility across various wiring setups.
Manufactured following IEC 60898 and EN 60898 standards and approved by CE and SEMKO, this circuit breaker guarantees compliance with international safety norms. It is primarily suited for use in residential, commercial, and light industrial electrical protection schemes.
Rated current of 20A ensures reliable circuit overload protection. Type B tripping characteristic suitable for common load types. Mountable on standard 35mm DIN Rail systems. Compact size optimizes panel space usage. IP20 protection level for safety against physical ingress.
Easy reset with toggle switch actuator. Terminals support a broad conductor size range. Compliance with IEC and EN standards. CE and SEMKO certifications affirm product reliability and safety.
This Miniature Circuit Breaker is essential for maintaining electrical safety and protecting circuits from overloads and short circuits in various environments such as residential buildings, commercial establishments, and light industrial setups. Explore more mini circuit breakers and related electrical protection devices in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 6 kA, ensuring resilience during fault conditions.
It has a rated current of 20A, providing reliable circuit overload protection.
This unit features a Type B tripping characteristic, making it suitable for standard residential and light commercial use.
The dimensions are 18mm in width, 87mm in height, and 66mm in depth, allowing for compact installation.
It is designed for mounting on a standard 35mm DIN Rail, facilitating easy installation in electrical panels.
It has an IP20 rating, providing protection against finger contact and ingress of solid objects.
The terminal connections support conductors ranging from 1mm² to 25mm², offering versatility for various wiring setups.
It complies with IEC 60898 and EN 60898 standards and is CE and SEMKO approved, ensuring adherence to international safety norms.
It features a toggle switch actuator that allows for quick manual resetting after tripping events.
It is primarily suited for use in residential, commercial, and light industrial electrical protection schemes.
This model has tunnel-type terminals for secure conductor connections.
The rated AC voltage for this miniature circuit breaker is 240V AC.
