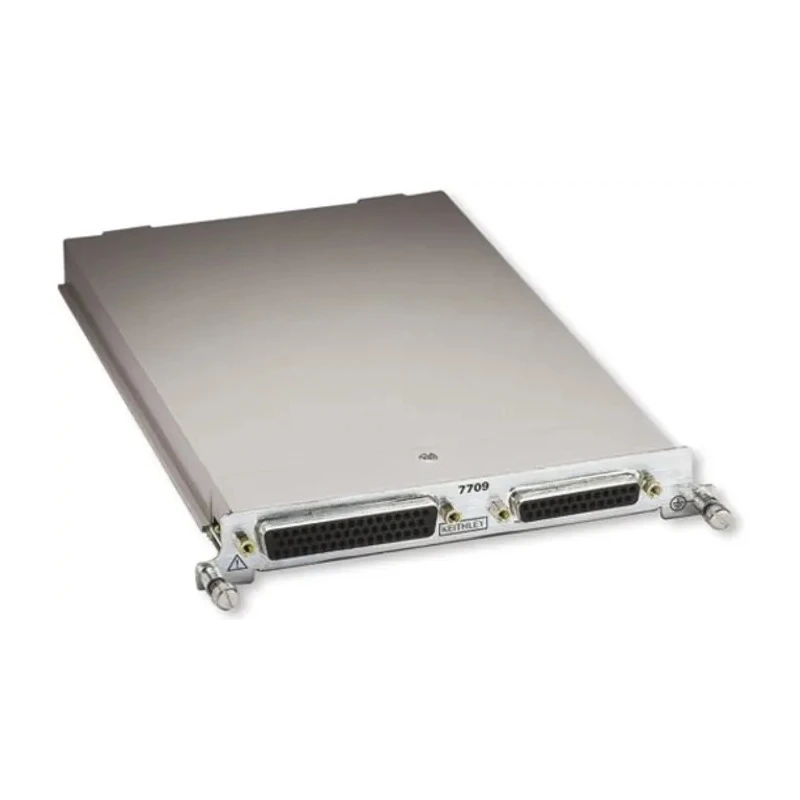

Keithley Data Acquisition Coupler Multiplexer Module 7709

Keithley 7709 Data Acquisition Coupler Multiplexer Module is a high-precision 6x6 matrix module designed for use with Keithley systems 2700, 2701, and 2750, delivering flexible connectivity between instrumentation channels and device-under-test channels.

This module supports automatic 2-wire or 4-wire connections to digital multimeters, enabling accurate measurements in a variety of testing environments.

The 7709 module features a 6 row by 8 column matrix design, allowing dynamic combination of differential channels suitable for both AC and DC sources, internal or external meters, and oscilloscopes.

Expandable to larger switch configurations via daisy-chaining or cascading multiple modules, this setup enhances versatility in complex test systems.

For secure and quick connection and teardown, the unit provides two female D-sub connectors. It supports switching up to 300 volts and 1 ampere to accommodate various instrumentation requirements.

This multiplexer accessory is essential for industrial laboratory, manufacturing, and electronics testing applications, providing consistent and adaptable data acquisition capabilities.

Compatible with Keithley 2700, 2701, and 2750 systems. Automatic 2-wire or 4-wire connection to DMM. Expandable matrix configurations through daisy-chaining. Two female D-sub connectors for robust connections. Rated for 300V, 1A capacity.

Suitable for AC and DC sources and meters. Explore more advanced data acquisition and logging accessories at EnvMart to enhance your instrumentation systems.
