Artesyn Single Output Switching Power Supply 15V dc 60W Chassis Mount Medical Approved NPS64-M

Free Delivery in India | Lowest Global Shipping Charges

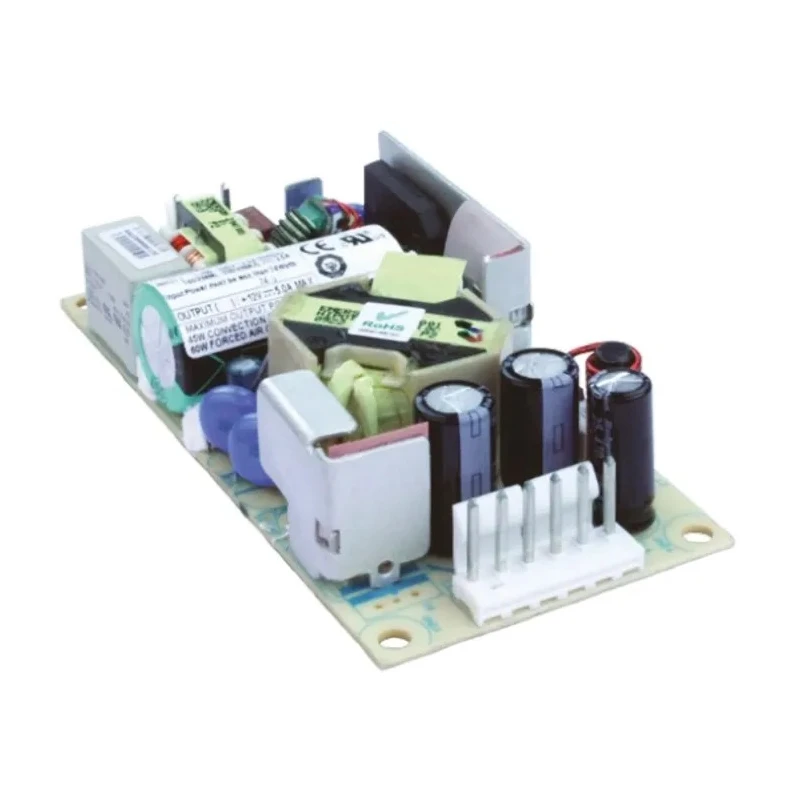

Artesyn Single Output Switching Power Supply 15V dc 60W Chassis Mount Medical Approved NPS64-M

Name: Artesyn Single Output Switching Power Supply 15V dc 60W Chassis Mount Medical Approved NPS64-M
Brand: Artesyn
SKU: 131652



Category Switching Power Supplies Brand Artesyn Condition New

Specifications

Country of Origin	Philippines
Brand	Artesyn
Power	60W
Efficiency	87%
Length	101.6mm
Model	NPS64-M
Depth	32.1mm
Gross Weight	118g
Width	50.8mm
Mount Type	Chassis
Series	NPS64-M
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
Number of outputs	1
Maximum Input Voltage	300V dc
Standards/Approvals	UL, CE, CSA, NEMKO, RoHS
Maximum Output Voltage	15V dc
SMPS Output Current	4A
Minimum Input Voltage	127, 90V dc
Harmonic Current compliance	EN61000-3-2

Key Features

Offers single output voltage of 15V dc at 4A current capacity.
Medical and ITE approved with low safety ground leakage current.
High efficiency of 87% with universal AC input and adjustable output voltage.
Built-in EMI filter complying with CISPR 22 Class B standards.
Overload and overvoltage protections ensure reliable operation.
Compact chassis mount with dimensions 101.6 x 50.8 x 32.1 mm.
Operating temperature range from 0°C to 50°C with derating above 50°C.
Meets international safety standards including UL, CE, CSA, NEMKO, and RoHS.

Product Description

Artesyn NPS64-M is a switching power supply designed for industrial, medical, dental, laboratory, and information technology equipment requiring a reliable 15V dc output at 60W power. It features a single output with 4A capacity, chassis mount format, and is compliant with medical and ITE standards.

This power supply provides a universal AC input voltage range from 90V to 300V dc, with an adjustable output voltage and built-in EMI filtering to minimize electromagnetic interference, complying with CISPR 22 Class B and FCC Class B.

The unit offers high efficiency rated at 87%, and built-in protections against overload and overvoltage, enhancing safety and durability. The safety ground leakage current is very low at 275µA at 50/60 Hz mains frequency, suitable for medical applications.

Compact in size with dimensions of 101.6 mm length, 50.8 mm width, and depth of 32.1 mm, it fits into industrial chassis mount environments easily. The operating temperature range of 0°C to 50°C supports a wide range of environments with derating from 50°C to 80°C.

Certifications and approvals include UL, CE, CSA, NEMKO, RoHS, and TUV standards relevant to both IT and medical equipment, making it fit for applications in commercial, laboratory, dental, and light industrial systems.

Single output 15V dc, 4A current capacity. Chassis mount form factor with compact footprint. Universal AC input with adjustable output voltage. Built-in EMI filter meeting CISPR and FCC Class B standards. Low safety ground leakage current, compliant with medical safety requirements.

Overload and overvoltage protection for system safety. High efficiency of 87% for energy saving operation. Wide operating temperature range with thermal derating. Certified to international safety standards including UL, CE, CSA, NEMKO, and RoHS.

This Artesyn NPS64-M switching power supply is an ideal choice for embedded power supply needs in medical devices, laboratory equipment, and information technology hardware requiring safe, reliable, and efficient power delivery.
