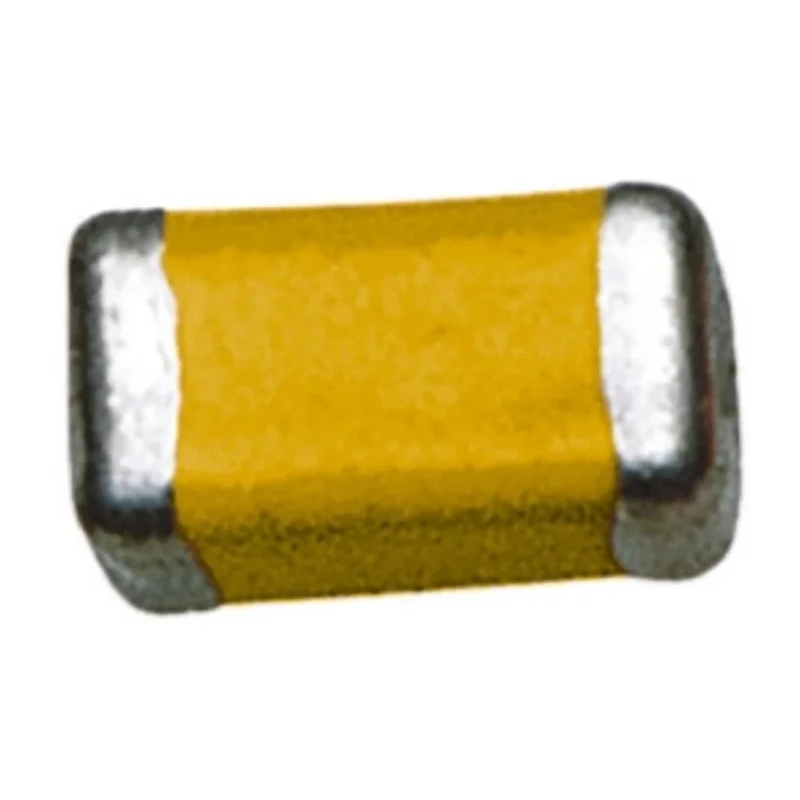

TDK 100 nF Multilayer Ceramic Capacitor, 50V DC, ±10% Tolerance, Surface Mount, Package 0402 CGA2B3X7R1H104K050BB

Free Delivery in India | Lowest Global Shipping Charges

TDK 100 nF Multilayer Ceramic Capacitor, 50V DC, ±10% Tolerance, Surface Mount, Package 0402 CGA2B3X7R1H104K050BB



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	50V dc
Brand	TDK
Height	0.5mm
Length	1mm
Model	CGA2B3X7R1H104K050BB
Packaging	Tape & Reel
Width	0.5mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	100nF
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Package/Case	0402
Dielectric	X7R
Automotive Standard	AEC-Q200

Key Features

Constructed with X7R dielectric for excellent heat resistance and stability.
Highly reliable Automotive AEC-Q200 qualified capacitor.
Low equivalent series resistance ensuring high ripple current performance.
Suitable for automotive electronics such as battery line smoothing and sensor modules.
Comes in tape and reel packaging for automated mounting.
Operating temperature range from -55°C to 125°C for versatile conditions.

Product Description

TDK CGA2B3X7R1H104K050BB is a high-reliability Multilayer Ceramic Capacitor (MLCC) designed for surface mount applications. This capacitor features a capacitance of 100 nF, voltage rating of 50V DC, and a tolerance of ±10%. The device utilizes X7R dielectric material, providing excellent heat resistance and stable performance across its rated temperature range of -55°C to 125°C.

This component is RoHS compliant and meets the rigorous automotive AEC-Q200 standard, ensuring suitability for critical automotive applications including battery line smoothing, sensor modules, engine control units, and infotainment systems. Its compact 0402 package dimensions of 1mm length, 0.5mm width, and 0.5mm height make it ideal for high accuracy automatic pick-and-place mounting processes.

The low equivalent series resistance (ESR) and low equivalent series inductance (ESL) contribute to its excellent frequency characteristics and reliable ripple current handling. The capacitor is supplied on tape and reel packaging to streamline automated assembly with improved production efficiency.

Typical industrial and commercial uses include automotive systems, smart meters, solar inverters, AC-DC battery chargers, transportation, and agriculture electronics. Constructed with X7R dielectric for superior mechanical strength and heat resistance.

Meets automotive industry AEC-Q200 qualification for enhanced reliability. Compact 0402 package ensures suitability for space constrained boards. Low ESR and ESL ensure minimal self-heating and stable operation. Tape and reel packaging supports efficient automatic mounting and production.

Wide operating temperature range supports harsh environmental conditions. Suitable for diverse applications including battery, sensor, and control modules. Explore more high-quality Multilayer Ceramic Capacitors and other passive components in the Electronics & Electricals category at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The capacitance value of this model is 100 nF.

It has a voltage rating of 50V DC.

The tolerance of this capacitor is ±10%.

The operating temperature range is from -55°C to 125°C.

This capacitor utilizes X7R dielectric material, providing excellent heat resistance and stability.

Yes, it meets the automotive AEC-Q200 standard and is RoHS compliant.

The dimensions of the 0402 package are 1mm in length, 0.5mm in width, and 0.5mm in height.

It comes in tape and reel packaging, suitable for automated mounting processes.

It is suitable for automotive electronics such as battery line smoothing, sensor modules, and engine control units.

The termination type is surface mount.

This model features low equivalent series resistance (ESR) and low equivalent series inductance (ESL), contributing to its excellent frequency characteristics.

The country of origin for this capacitor is Japan.
