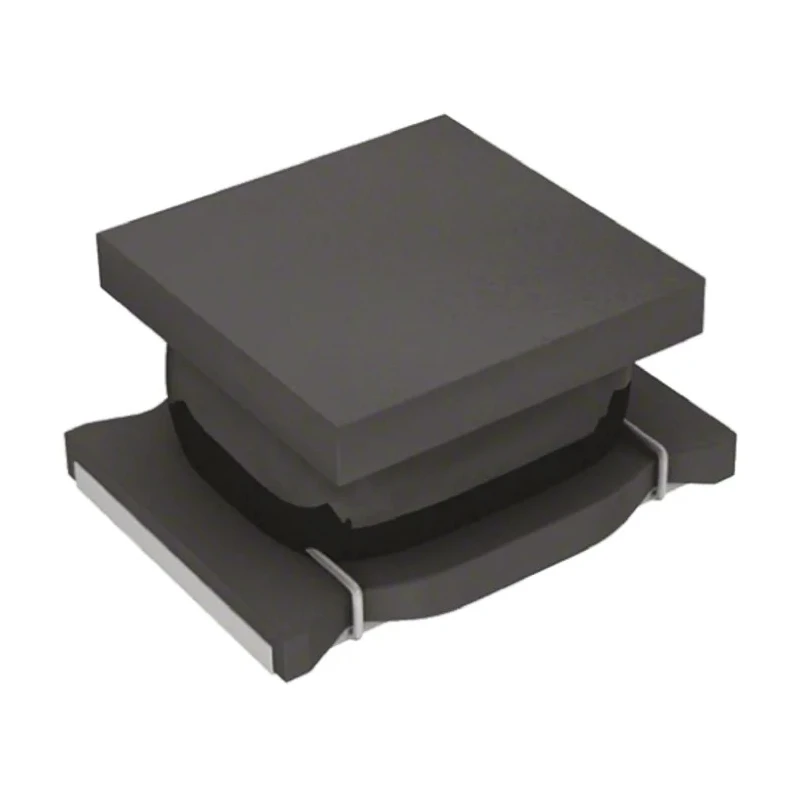

Murata 1210 Wirewound Surface Mount Inductor with Ferrite Core 22 μH ±20% 450 mA DC Current LQH32PN220MN0L

Murata LQH32PN220MN0L is a 1210 wirewound surface mount inductor designed with a ferrite core to provide an inductance of 22 μH with ±20% tolerance. It supports a maximum DC current of 450 mA and features a low DC resistance of 180 mΩ, making it highly efficient for choke and filtering applications in electronic power supply circuits.

The compact 1210 package (length 3.2mm, depth 2.5mm, height 1.55mm) allows easy integration into dense printed circuit board layouts. Its magnetically shielded wirewound construction reduces electromagnetic interference, improving circuit stability in both automotive and industrial electronics.

This inductor is RoHS compliant and uses tin-plated terminations, enhancing soldering consistency and long-term reliability. It operates reliably over a temperature range of -40°C to 85°C, suitable for demanding environments.

With a maximum self-resonant frequency of 20 MHz, it maintains inductive performance in high-frequency applications, particularly in switching power supplies and DC/DC converters. Manufactured in Japan, this component ensures high manufacturing quality and consistency.

Magnetically shielded to minimize EMI effects. Compact, standard 1210 footprint for surface mount assemblies. Low DC resistance improves power efficiency. Wide operating temperature range for harsh environments. RoHS compliant ensuring environmental safety.

Reliable tin-plated terminations for soldering. Suitable for power supply choke and filtering applications. High self-resonant frequency supports high-frequency designs.

This Murata surface mount inductor is ideal for industrial, automotive, consumer electronics, and power management applications. Explore other Surface Mount Inductors and electronic components on EnvMart for your project needs.
