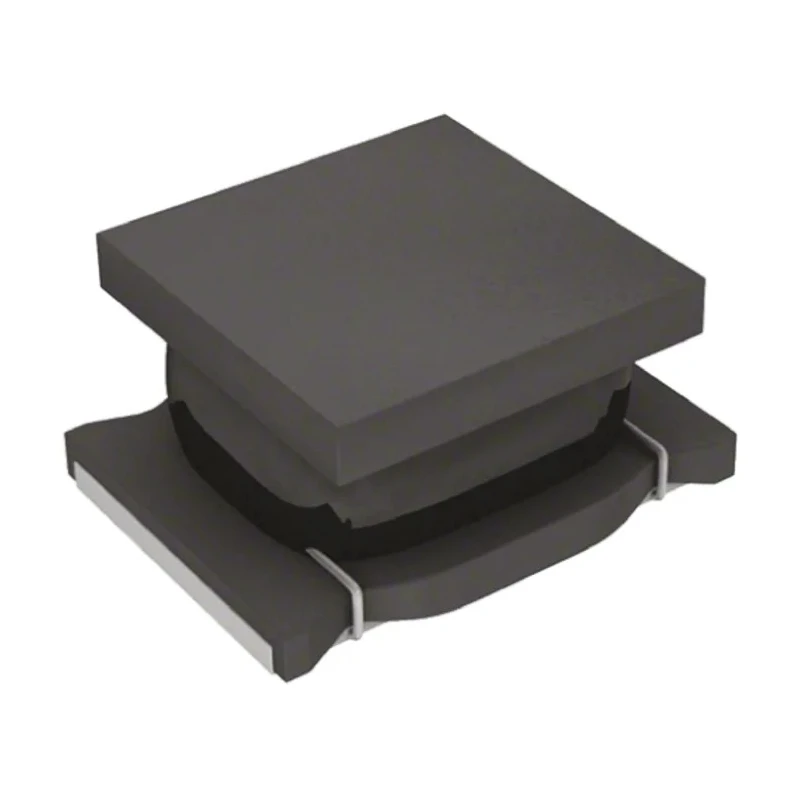

Murata 1210 Shielded Wirewound Surface Mount Inductor 15 μH ±20 % 520 mA Idc Ferrite Core LQH32PN150MN0L

Murata LQH32PN150MN0L is a 1210 shielded wirewound surface mount inductor featuring a ferrite core designed for choke use in DC power supply circuits. This inductor provides an inductance of 15 μH with a tolerance of ±20 %, coupled with a maximum DC current rating of 520 mA. Its magnetic shielding reduces electromagnetic interference, making it ideal for compact electronic applications requiring stable inductance and high current handling.

The wirewound construction combined with a ferrite core ensures low DC resistance of 570 mΩ and reliable performance across a temperature range from -40°C up to 85°C. The compact 1210 package with dimensions of 3.2 mm length, 2.5 mm depth, and 1.55 mm height enables space-saving PCB designs.

Packaged on embossed tape reels, these inductors are suitable for automated surface mounting processes, enhancing production efficiency. The solder termination style guarantees a secure and consistent attachment to PCBs. With a maximum self-resonant frequency of 20 MHz, these inductors maintain impedance integrity in high-frequency environments.

This product complies with RoHS standards ensuring environmental safety and quality. This 1210 package inductor offers a high current capacity of 520 mA. Features a magnetically shielded wirewound construction for minimal electromagnetic interference.

Ferrite core enhances inductance stability and performance. Inductance tolerance is ±20 % suited for choke applications in DC power circuits. Maximum DC resistance is 570 mΩ ensuring efficient operation. Supports operating temperature range from -40°C to 85°C.

Embossed tape packaging optimized for automated surface mounting. Termination style is solder for reliable PCB mounting. Maximum self-resonant frequency is 20 MHz for stable performance at high frequencies. Compact size with dimensions 3.2 mm length, 2.5 mm depth, and 1.55 mm height.

This Surface Mount Inductor is suitable for various industrial and commercial electronic applications including power supply circuits, automotive electronics, and telecommunications equipment where reliable inductance and current handling are critical.
