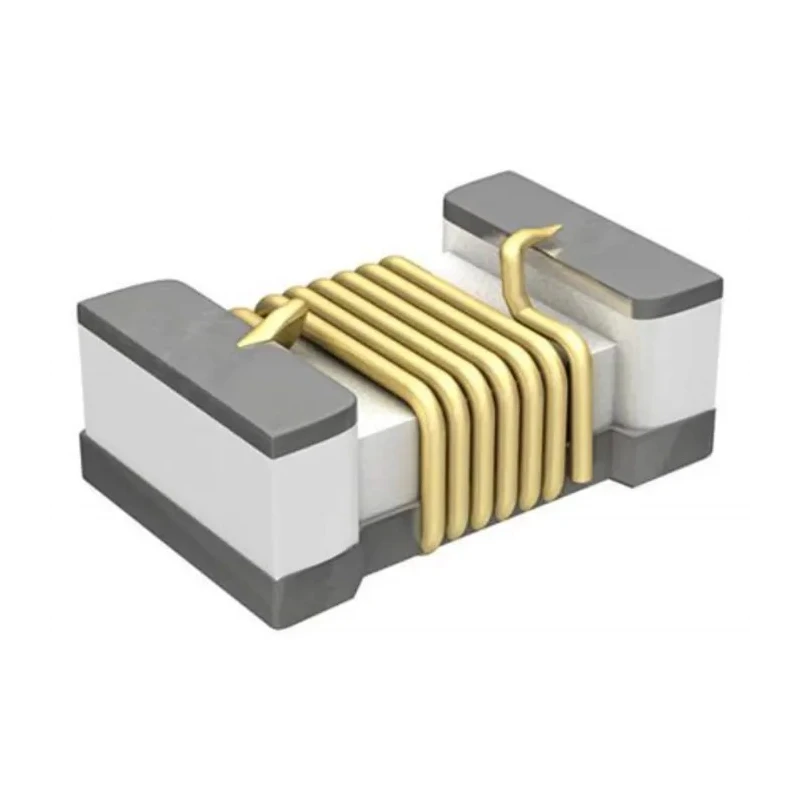

Murata 0402 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 36nH ±5% 260mA Idc Q:25 LQW15AN36NJ00D

Murata LQW15AN36NJ00D is a high-quality 0402 unshielded wirewound surface mount inductor featuring a ferrite core with an inductance of 36nH and tolerance of ±5%. Designed for use in high frequency circuits such as wireless telecommunications including Bluetooth, GSM, and W-LAN, it supports a maximum DC current of 260mA.

The inductor is constructed with wirewound technology, offering a low DC resistance of 630mΩ that contributes to energy efficient operation. Its thermal operating range spans from -55°C to 125°C, ensuring reliable performance in diverse environments.

With a high self-resonant frequency of 3.1GHz and minimum quality factor of 25, the component is ideal for VHF and UHF applications requiring precise inductance values and high resonance frequency. The ferrite core material enhances magnetic properties for improved signal integrity.

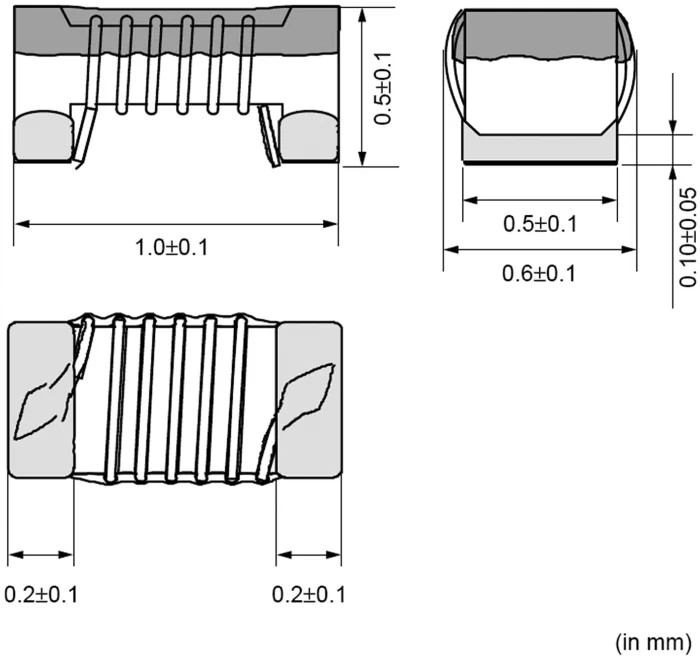

The component package is 0402 size with dimensions of 1mm length, 0.5mm height, and 0.5mm depth, making it suitable for compact assembly on PCBs. It is terminated by solder style for solid and consistent electrical connection. Packaging on paper tape supports automated manufacturing processes.

This RoHS-compliant surface mount inductor is manufactured in Japan under Murata's LQW series, reflecting high quality and compliance with international environmental standards. It includes 2 pins and is moulded to protect the inductor coil and core for enhanced durability.

Compact 0402 package suitable for high-density PCB designs. Low DC resistance of 630mΩ ensures efficiency. Operates reliably between -55°C to 125°C temperature range. High self-resonant frequency of 3.1GHz suitable for VHF and UHF applications.

Constructed with a ferrite core and wirewound inductor construction. Maintains minimum quality factor of 25 for effective performance. RoHS compliant ensuring environmental safety. Packaging in paper tape, supporting automated insertion.

Terminated using solder style termination for reliable connections. Manufactured in Japan to high-quality standards.

This Murata LQW15AN36NJ00D 0402 wirewound surface mount inductor is ideal for electronics manufacturing, industrial equipment, telecommunications, and high frequency applications. Explore related Murata Surface Mount Inductors and components for comprehensive circuit design and prototyping at EnvMart.
