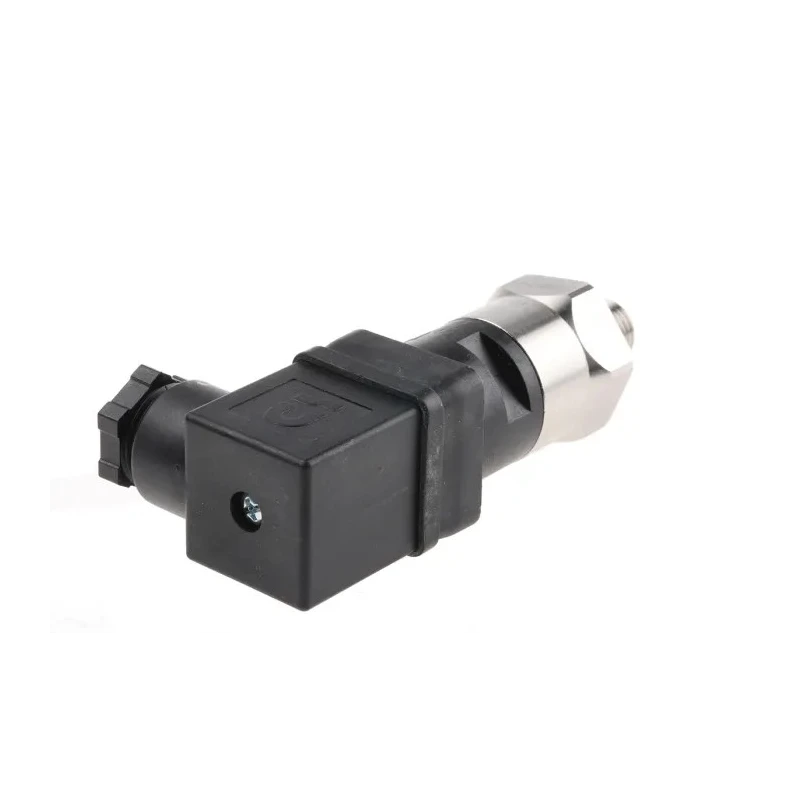

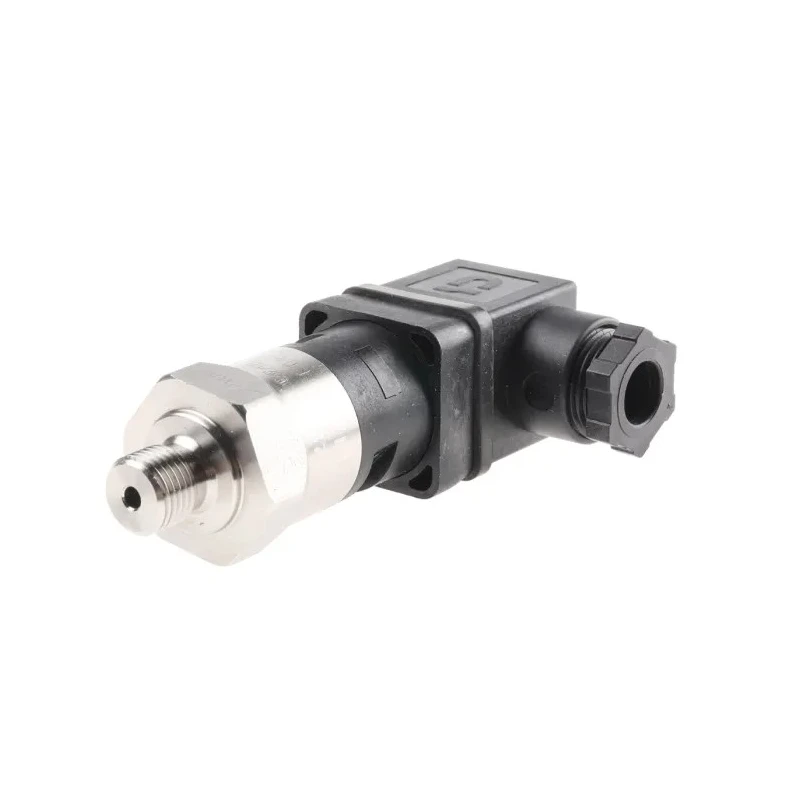

Gems Sensors Stainless Steel General Purpose Mini Pressure Switch 65 psi to 300 psi SPDT Output 250V Max Supply 210062-RS

Gems Sensors 210062-RS is a high-quality general purpose mini pressure switch featuring a stainless steel housing suitable for varied industrial uses such as hydraulic and pneumatic systems. It operates effectively across a pressure range of 65 psi minimum to 300 psi maximum and employs a piston/diaphragm design that guarantees superior accuracy. The switch supports a maximum supply voltage of 250V and includes a snap action microswitch output of SPDT type, enabling reliable switching performance.

Built for durability, the device is rated IP65, providing strong protection against dust and water ingress, enhancing suitability for demanding environments. The maximum operating temperature is 85°C, allowing usage in elevated temperature conditions commonly found in industrial settings. Gems Sensors provides a range of pressure fittings and electrical terminations for customization and ease of integration.

The unit has achieved CE and UL approvals, ensuring it meets stringent international compliance requirements. Applications include hydraulic and pneumatic monitoring, automation controls, and process regulation in sectors such as manufacturing, construction, and water treatment.

With a compact modular construction, this pressure switch is highly adaptable to user needs and simplifies system integration. Designed and manufactured in the United States, it reflects high-quality engineering and robust build standards for reliability and longevity.

Durable stainless steel housing ensures protection and longevity. Wide pressure range from 65 psi to 300 psi meets diverse application needs. Accurate piston/diaphragm design for precise pressure measurement. SPDT snap action microswitch output enhances switching reliability.

Rated for 250V maximum supply voltage suitable for industrial circuits. IP65 rating provides dust and water resistance. Maximum operating temperature of 85°C supports elevated temperature environments. CE and UL certifications guarantee compliance with safety standards.

Modular construction allows easy customization and installation. Suitable for hydraulic, pneumatic, automation, and control applications. Explore more industrial sensors and Pressure Switches from our extensive Electronics & Electricals sensors category at EnvMart.
