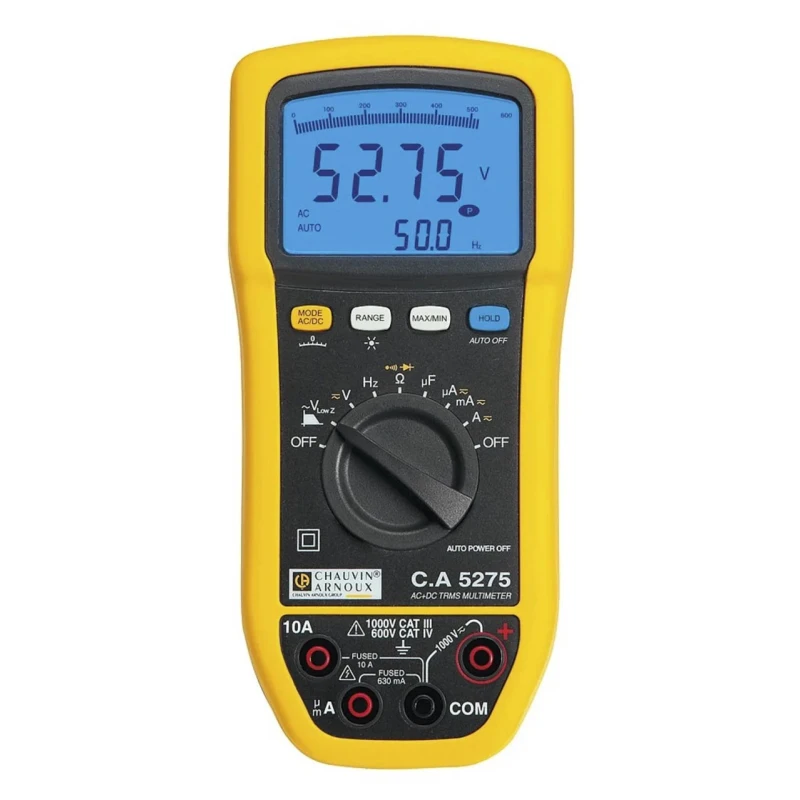

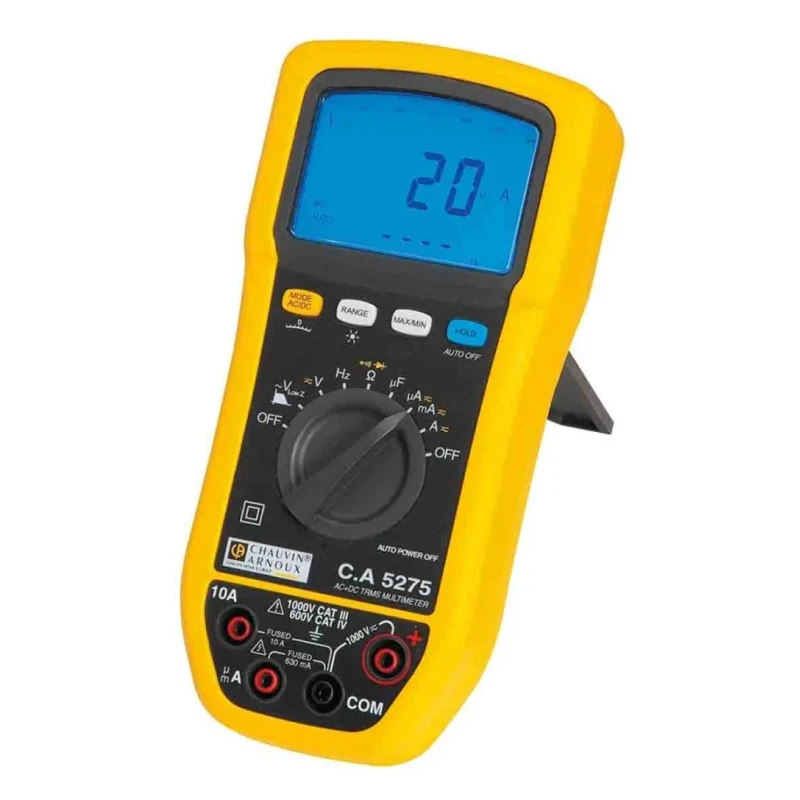

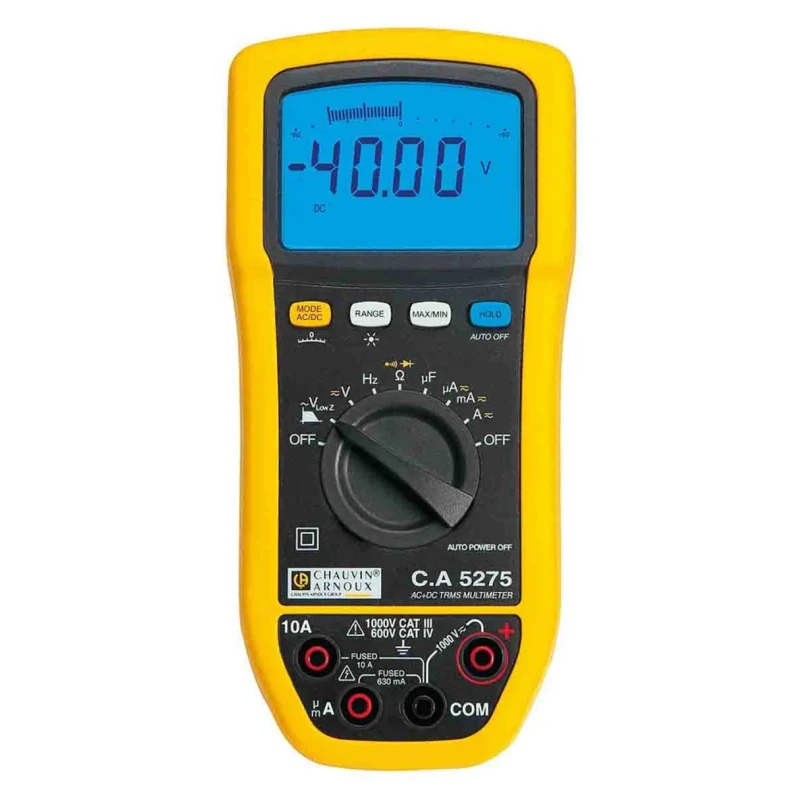

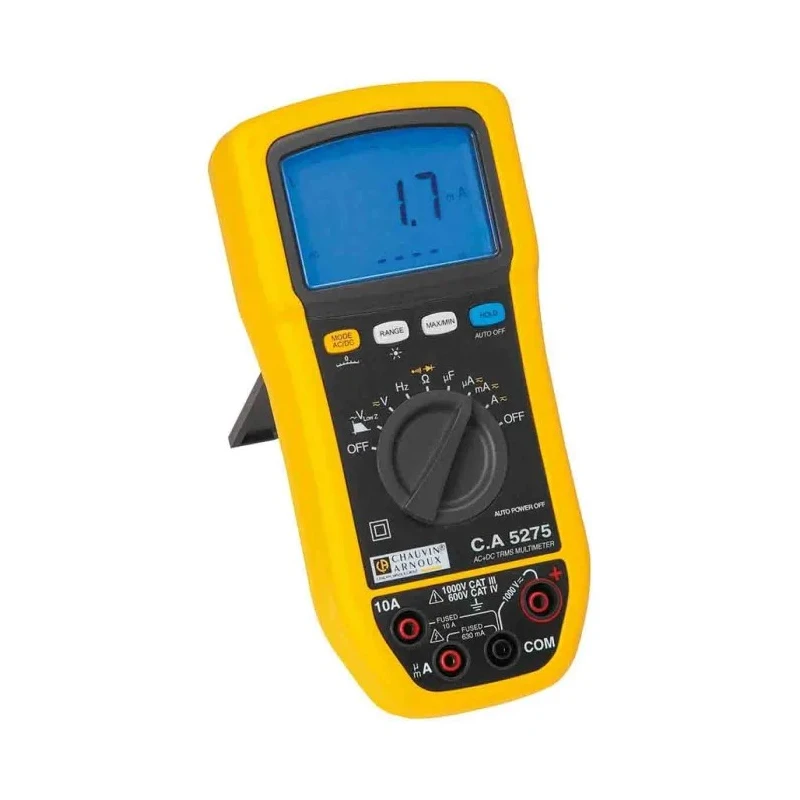

Chauvin Arnoux Handheld Multimeter CA 5275 True RMS 1kV DC Voltage 150h Battery Life P01196775
Specifications
| Country of Origin | France |
|---|---|
| Display Type | LCD |
| Brand | Chauvin Arnoux |
| Battery Life | 150h |
| Battery type | IEC 6LR61 |
| Height | 190mm |
| Length | 90mm |
| Model | P01196775 |
| Gross Weight | 400g |
| Width | 45mm |
| Maximum Operating Temperature | 50°C |
| AC Voltage Resolution | 0.01mV ac |
| Minimum Operating Temperature | -10°C |
| DC Current Accuracy | ±0.8 % rdg + 2 Digits |
| DC Voltage Resolution | 0.01 mV dc |
| AC Current Accuracy | ±1 % rdg + 3 Digits |
| Resistance Resolution | 100mΩ |
| DC Current Resolution | 1μA ac |
| Multimeter Type | Handheld |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Low Impedance Voltage, Resistance, Temperature |
| Maximum DC Voltage Measurement | 1kV dc |
| Maximum Frequency | 10kHz |
| Safety Category Level | CAT III, CAT IV |
| Safety Category Voltage | 1kV |
Key Features
- Compact and easy to handle with a bright dual backlit LCD display.
- True RMS AC and DC voltage and current measurements up to 1000 V and 10 A respectively.
- Advanced functions including capacitance, frequency, diode and continuity testing.
- Built to safety standards CAT IV 600 V and CAT III 1000 V for industrial and professional use.
- Long battery life of up to 150 hours with IEC 6LR61 type battery.
- Robust IP54 protection rating suitable for field environments.
- Measures resistance up to 60 MΩ with 100mΩ resolution.
- Designed and manufactured in France ensuring high quality and reliability.
Product Description
Chauvin Arnoux P01196775 handheld multimeter CA 5275 is a versatile and robust Digital Multimeter designed for electrical maintenance on installations and equipment. The device provides precise and true RMS measurements for AC and DC parameters, supporting voltages up to 1000 V and currents up to 10 A. It includes multiple functions such as AC/DC voltage and current, resistance, capacitance, frequency, temperature, diode, and continuity tests, making it suitable for comprehensive field diagnostics.
The multimeter features a dual backlit LCD display with 6000 counts and bar graph, enabling easy readability in various lighting conditions. Automatic or manual range selection, low impedance voltage position with low-pass filter, and peak +/ - hold functions increase measurement accuracy and convenience.
Built to meet stringent safety categories CAT IV 600 V and CAT III 1000 V, the CA 5275 ensures operator safety in industrial and commercial settings. Its IP54 rated casing offers protection against dust and water splashes, enhancing durability in demanding environments.
This multimeter has a compact design with dimensions of 190 mm height, 90 mm length, and 45 mm width, and weighs approximately 400 g. It runs on a standard IEC 6LR61 9V battery lasting around 150 hours of operation. The package includes one set of banana leads, one set of test probes, a shoulder bag, a multiFix mounting accessory, and a quick start guide for immediate use.
Ideal for electricians, maintenance teams, and testing professionals in industrial, commercial, and laboratory settings, the CA 5275 delivers reliable performance with added convenience and safety.
Country of origin: France. Compact and easy to handle with a bright dual backlit LCD display. True RMS AC and DC voltage and current measurements up to 1000 V and 10 A respectively. Advanced functions including capacitance, frequency, diode and continuity testing.
Built to safety standards CAT IV 600 V and CAT III 1000 V for industrial and professional use. Long battery life of up to 150 hours with IEC 6LR61 type battery. Robust IP54 protection rating suitable for field environments.
Measures resistance up to 60 MΩ with 100mΩ resolution. Includes accessories: banana leads, test probes, shoulder bag, mounting accessory, and quick start guide. Designed and manufactured in France ensuring high quality and reliability.
Explore more precision measuring instruments and multimeters by Chauvin Arnoux on EnvMart for your industrial and laboratory requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure DC voltages up to 1000 V.
It has a battery life of up to 150 hours when using an IEC 6LR61 type battery.
It is built to safety standards CAT IV 600 V and CAT III 1000 V, ensuring operator safety in various environments.
It can measure AC and DC voltage, AC and DC current, resistance, capacitance, frequency, temperature, diode, and continuity tests.
The multimeter has dimensions of 190 mm in height, 90 mm in length, and 45 mm in width, weighing approximately 400 g.
This unit can measure DC currents up to 10 A.
It features a dual backlit LCD display with a count capacity of 6000 and a bar graph for easy readability.
It measures resistance up to 60 MΩ with a resolution of 100 mΩ.
The maximum frequency measurement capability is 10 kHz.
The package includes banana leads, test probes, a shoulder bag, a multiFix mounting accessory, and a quick start guide.
The minimum operating temperature is -10°C and the maximum is 50°C.
This multimeter is designed and manufactured in France, ensuring high quality and reliability.
