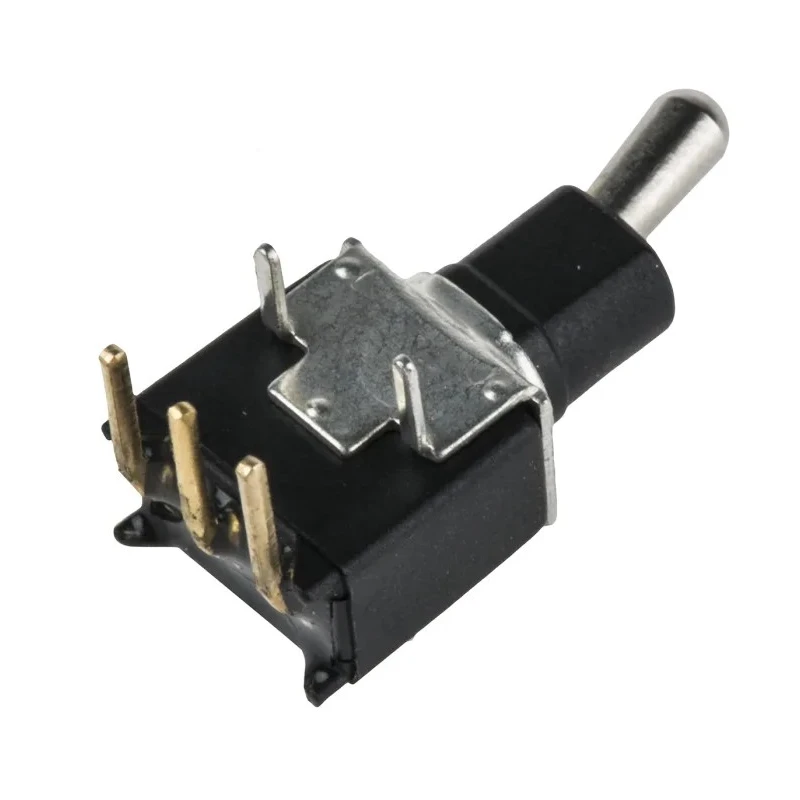

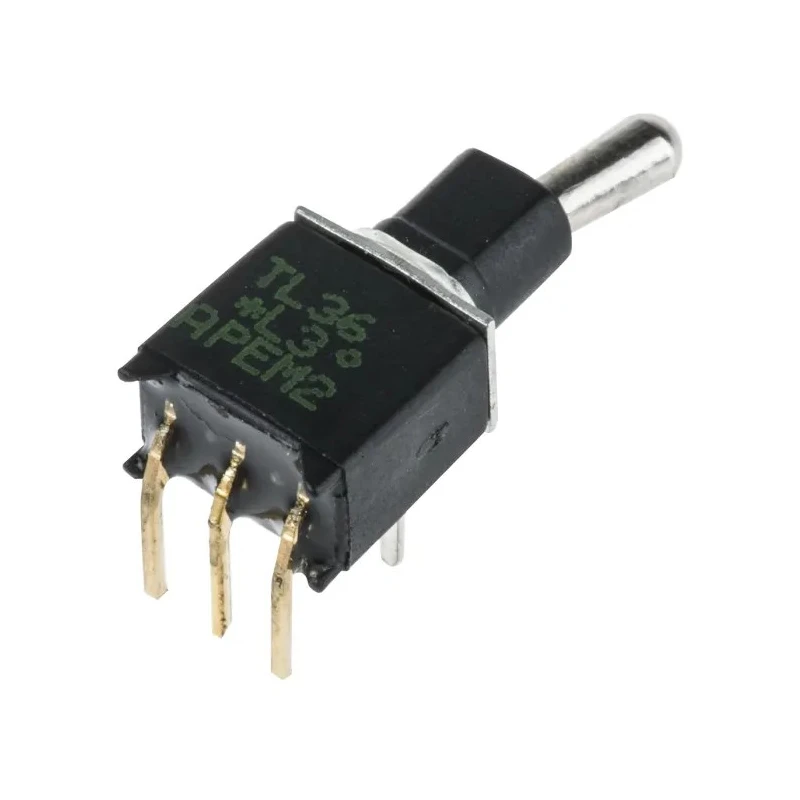

APEM Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 20V DC 20V AC TL36W0050
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 19.58mm |
| Length | 9.6mm |
| Model | TL36W0050 |
| Width | 8.1mm |
| Mount Type | PCB |
| Series | TL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Number of Operations | 60000 (2 pos), 30000 (3 pos) |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 5.3mm |
| Contact DC Voltage | 20V dc |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 20V ac |
| Actuator Material | Brass |
| Minimum load current | 10mA at 50mV - 10μA at 5Vdc |
| RS PRO Toggle Switch, PCB Mount, On-On, SPDT, Through Hole TerminalBrand | RS PRO |
Key Features
- SPDT contact configuration ensures versatile circuit control.
- On-On switch operation for stable dual position functionality.
- Designed for PCB mounting with through-hole terminals for secure connection.
- Operates reliably within a temperature range of -30°C to 85°C.
- Features brass actuator and gold plated brass terminals for enhanced conductivity and durability.
- Meets RoHS standards and suitable for sealed immersion cleaning.
- Capable of wave soldering at 260°C for 5 seconds without damage.
- Minimum load current of 10mA at 50mV and 10μA at 5V DC for precise switching.
Product Description
APEM TL36W0050 Toggle Switch PCB Mount On-On SPDT is a precision-engineered toggle switch designed for electronics and electrical applications requiring reliable low voltage switching. This ultra-miniaturized component features PCB mounting capability via through-hole terminals, facilitating easy integration into printed circuit boards.
With a contact configuration of Single Pole Double Throw (SPDT) and an On-On switch operation, this switch delivers accurate and stable switching functionality with a contact current rating of 400mA. It supports a contact DC voltage of 20V and an AC voltage of 20V, making it suitable for various low power signal routing and control applications.
The actuator is made of brass while the terminals are gold plated brass to ensure optimal conductivity and corrosion resistance. The robust PBT casing combined with a sealed design allows for immersion cleaning without damage, ideal for manufacturing environments with rigorous cleaning requirements.

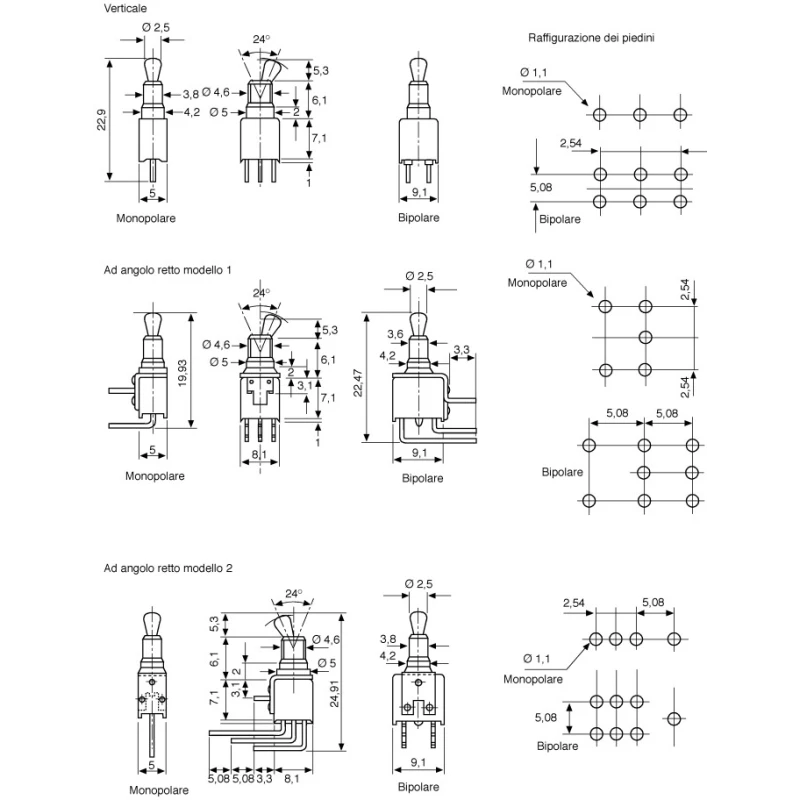

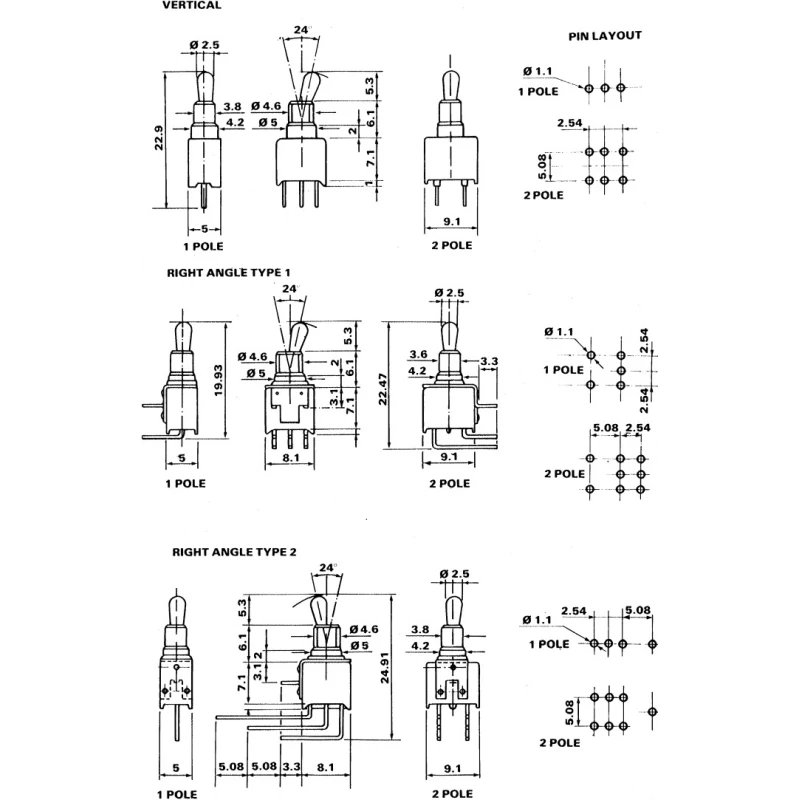

Physically compact, the switch measures 19.58mm in height, 8.1mm in width, and 9.6mm in length, with a 5.3mm brass actuator length. It operates within a temperature range from -30°C to 85°C, ensuring durability and performance under diverse environmental conditions.
This toggle switch complies with RoHS standards, confirming environmentally responsible manufacturing practices. It withstands wave soldering processes at up to 260°C for 5 seconds, making it compatible with modern automated PCB assembly lines.
SPDT contact configuration for versatile circuit applications. Durable brass actuator with gold plated terminals. Sealed design suitable for immersion cleaning. Wave solderable at 260°C for 5 seconds. High operational endurance with up to 60,000 cycles for 2-position use.
Compact form factor for space-constrained PCB designs. Wide operating temperature range from -30°C to 85°C. Compliance with RoHS environmental standards. Low minimum load current supports sensitive electronic circuits.
This Toggle Switch is ideal for industrial electronics, automation systems, instrumentation, communication devices, and other electrical applications requiring compact, reliable low voltage switching components. Explore more quality switches and electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile circuit control.
The maximum operating temperature for this toggle switch is 85°C, ensuring it can function in various environments.
The minimum load current is 10mA at 50mV and 10μA at 5V DC, making it suitable for sensitive electronic circuits.
This toggle switch measures 19.58mm in height, 8.1mm in width, and 9.6mm in length, with an actuator length of 5.3mm.
It supports a contact DC voltage of 20V and an AC voltage of 20V, suitable for various low power applications.
Yes, this model meets RoHS standards, confirming its environmentally responsible manufacturing practices.
The toggle switch is rated for up to 60,000 cycles for 2-position use, ensuring longevity in applications.
It features through-hole terminals, designed for secure PCB mounting and connection.
The actuator is made of brass, which contributes to its conductivity and durability.
Yes, it has a sealed design that allows for immersion cleaning without damage, making it suitable for rigorous cleaning environments.
This model operates with an On-On switch configuration, providing stable dual position functionality.
