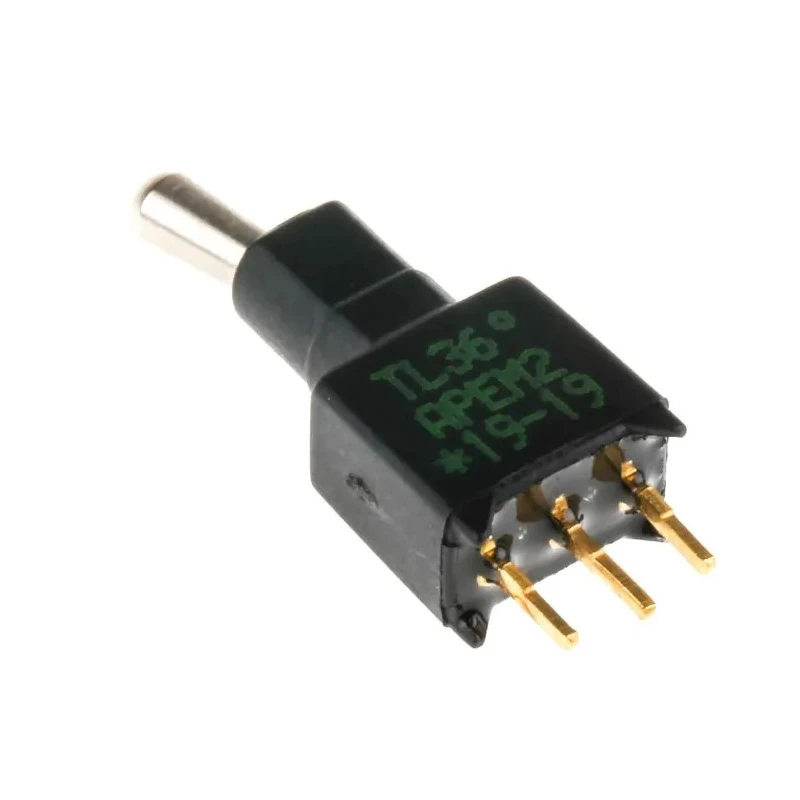

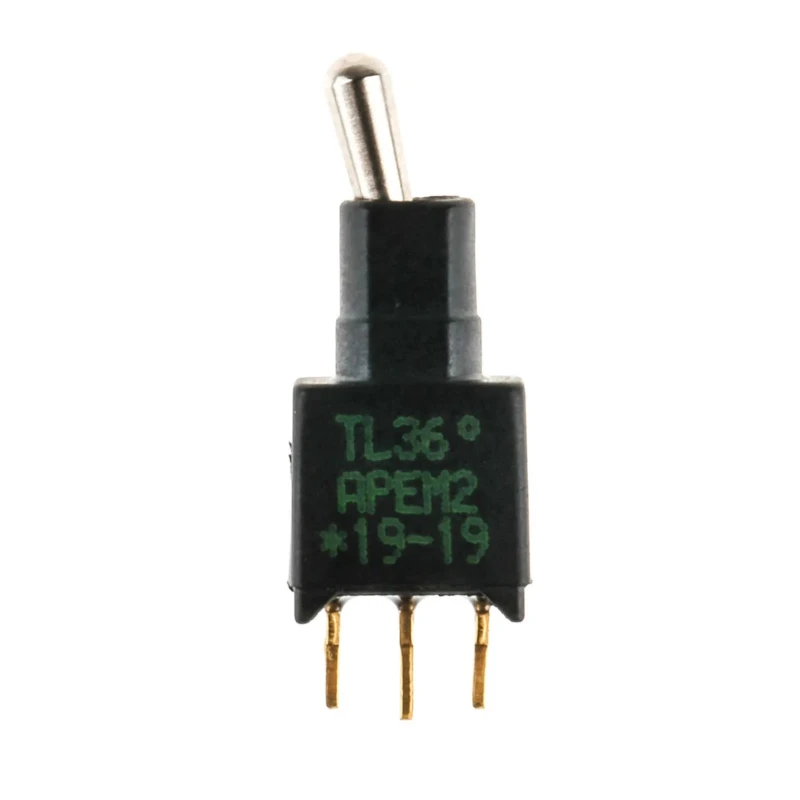

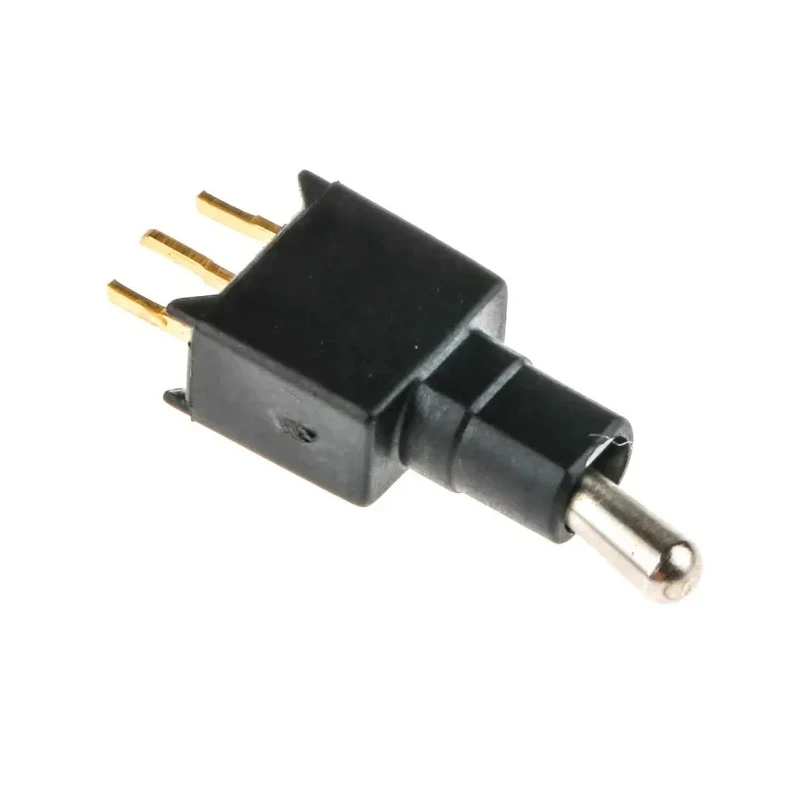

APEM Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 20 V DC 20 V AC TL36P0050

APEM TL36P0050 Toggle Switch is a precision engineered PCB mount switch featuring On-On SPDT (Single Pole Double Throw) contact configuration suitable for both AC and DC low-level switching applications. Rated for 20 V DC and 20 V AC, this switch is specifically designed for integration into circuit boards where reliable, compact and durable switch operation is essential.

The actuator is crafted from brass with an effective length of 5.3 mm housed in a PBT plastic case, offering excellent mechanical strength and resistance to environmental factors. The gold plated brass terminals ensure superior conductivity and corrosion resistance. The device supports wave soldering at temperatures up to 260°C for 5 seconds allowing easy PCB assembly.

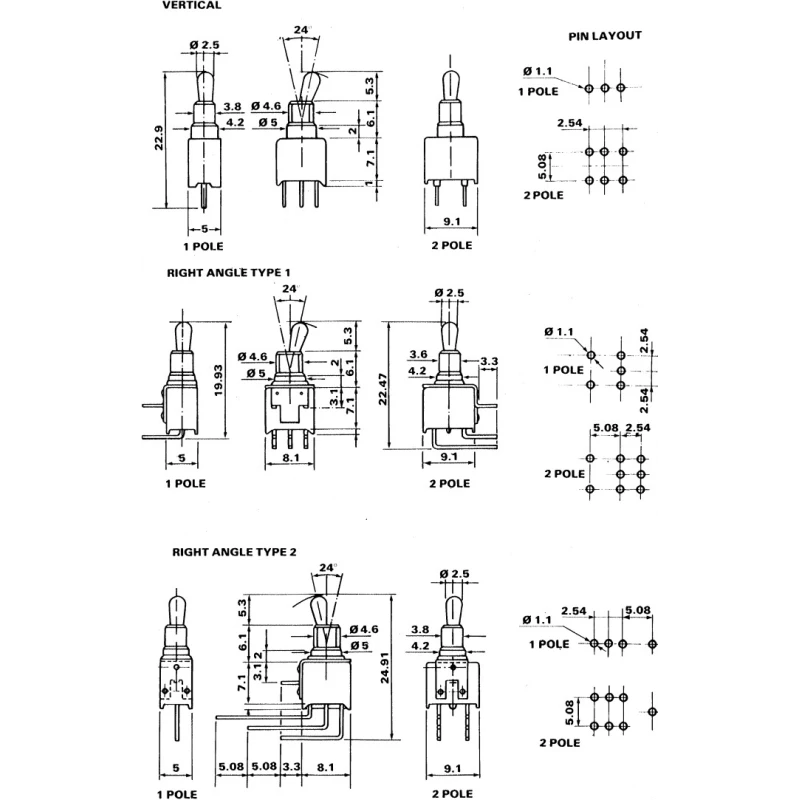

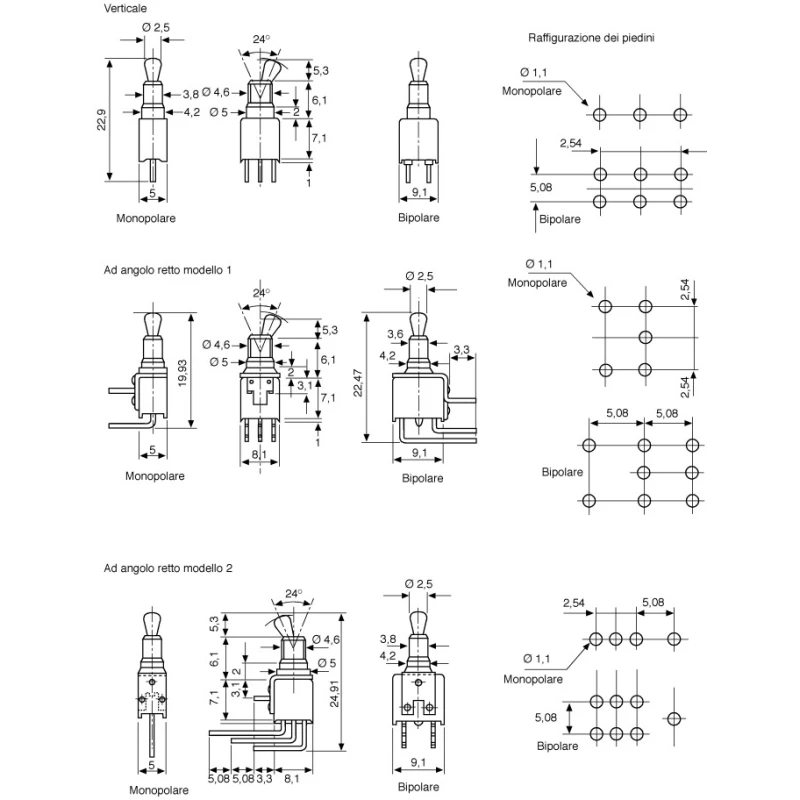

With a compact footprint of 22.8 mm height, 9.1 mm length, and 8.1 mm width, this switch can fit in tight circuit layouts while maintaining robust functionality. It operates within a broad temperature range (-30°C minimum to 85°C maximum) making it suitable for various industrial environments.

The TL36P0050 switch delivers outstanding durability with a minimum operational life of 60,000 cycles (for the 2 position operation) and features a sealed design that is washable and suitable for immersion cleaning, ideal for industrial and manufacturing processes. Its minimum load current down to 10μA at 5V DC makes it sensitive for low power electronic applications.

This toggle switch is perfectly suited for electronics manufacturing, industrial automation control panels, laboratory equipment, and other applications requiring reliable and precise switching solutions compliant with RoHS standards. Country of origin is France, under the TL series.

The switch features a double throw (SPDT) contact configuration with On-On switch operation. Brass actuator and PBT case construction provide mechanical durability. Gold plated brass terminals are wave solderable and corrosion resistant.

The component is fully sealed for immersion cleaning environments. Operating temperature range from -30°C to 85°C suits diverse industrial conditions. Compact footprint and PCB mounting design ensure easy integration. Minimum load current of 10 mA at 50 mV and down to 10 μA at 5 V DC supports low power circuits.

Longevity assured with a minimum of 60,000 operations (2 position). Explore an extensive range of high-quality Toggle Switches and electrical components at EnvMart for industrial, laboratory, manufacturing, and automation applications.
