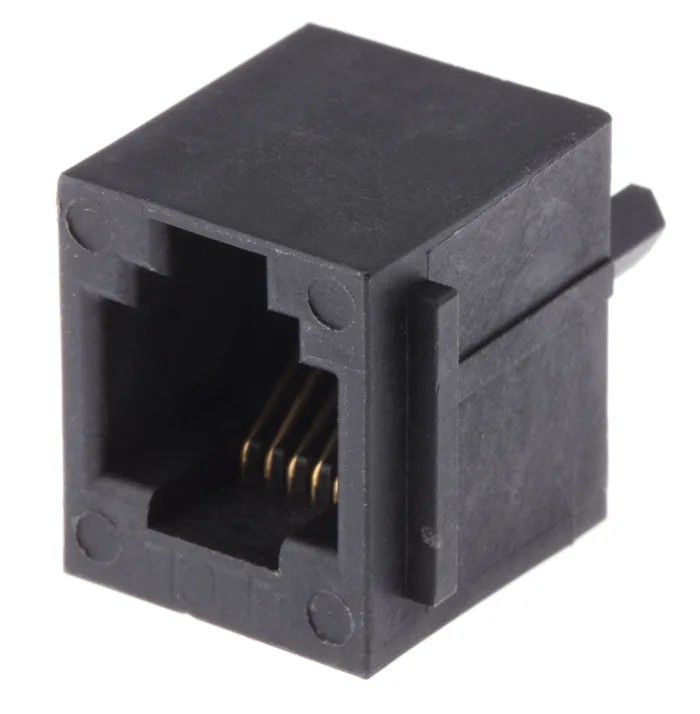

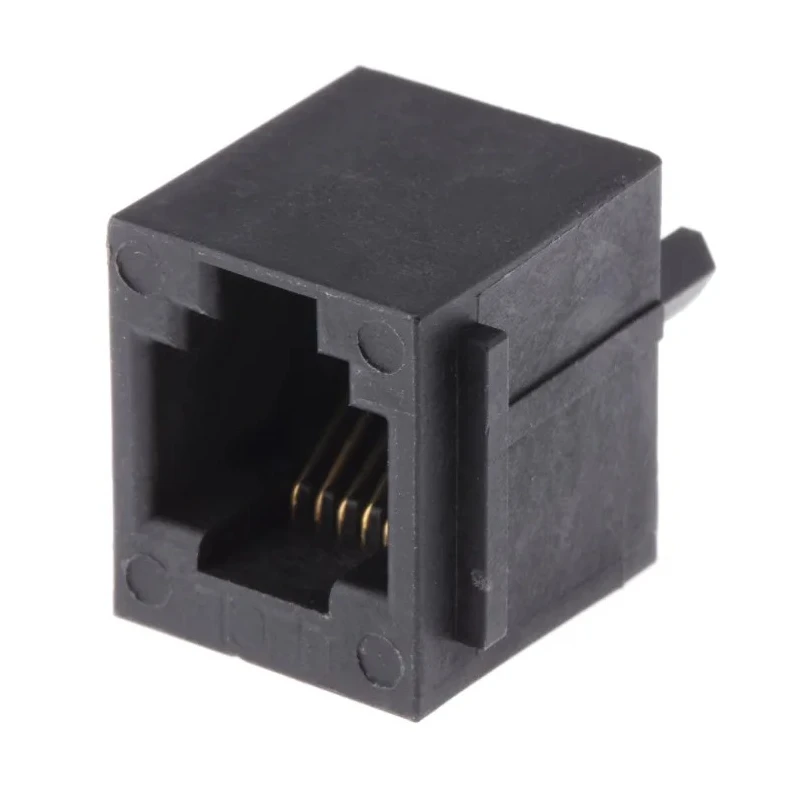

Amphenol ICC MOD JACK Series RJ45 Cat3 Unshielded Female Connector Through Hole 6 Way RJ45
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol ICC |
| Orientation | Straight |
| Length | 15.87mm |
| Model | RJ45 |
| Depth | 15.62mm |
| Connector Type | Modular Jack |
| Number Of Ways | 6 |
| Width | 15.75mm |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | MOD JACK |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -65°C |
| Shield Type | Unshielded |
| Contact Plating | Gold |
| Connector Gender | Female |
| LAN Category | Cat3 |
| Ethernet Connector Type | RJ45 |
Key Features
- Supports Cat3 LAN category for low speed data transmission.
- Through hole mount type ensures secure PCB attachment.
- Connector has a straight orientation and solder termination type.
- Constructed with copper alloy contacts plated with gold for reliability.
- Operating temperature ranges from -65°C to 125°C.
- Compact dimensions allow easy integration in telecom and network equipment.
- Unshielded design suitable for non-EMI sensitive environments.
- Designed for use in telecom, data networking, and home entertainment hardware.
Product Description
Amphenol ICC 69254-001LF MOD JACK Series RJ45 connector is a high-quality female modular jack connector designed for Cat3 LAN applications. Featuring a through hole mount, this unshielded and straight 6-way connector supports 1 port for versatile Ethernet connectivity. It is constructed with copper alloy contacts plated in gold to ensure excellent electrical performance and durability over a wide operating temperature range from -65°C to 125°C.
This connector offers a compact form factor with dimensions approximately 15.87mm length, 15.75mm width, and 15.62mm depth, making it ideal for integration into telecom systems, POS terminals, security systems, set-top boxes, and legacy modems requiring Cat3 compatibility. Its solder termination and PCB board lock design secure reliable attachment to printed circuit boards with ease of wave soldering during manufacturing.
The unshielded design caters to environments where EMI/ESD shielding is not critical, enabling cost-effective deployment for low-speed networking. It supports data rates typical of Cat3 standards, up to 16 Mbps, providing dependable communication for voice, security, and data applications.
Amphenol ICC's MOD JACK series connectors are side-by-side stackable, supporting space-saving PCB layouts and easy installation. They come with options such as inverted latch and panel stops for specialized mounting needs and are designed for compatibility across various telecom and networking hardware.
Selective one-piece loaded design offers convenience and robustness. Side-by-side stackability enhances PCB space management. Wave solder compatible with PCB board locks for secure retention. Supports numerous telecom and data networking applications.
Manufactured under strict quality controls in China.
This product is suitable for industrial, telecom, and commercial electronics applications with requirements for Cat3 RJ45 female modular jack connectors. Explore Amphenol ICC Ethernet Connectors in EnvMart for a complete range of networking solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this RJ45 connector is 125°C.
The length of this connector is approximately 15.87mm and the width is 15.75mm.
This modular jack supports Cat3 LAN category for low-speed data transmission.
This connector uses a through hole mount type for secure PCB attachment.
The contact material used in this connector is copper alloy, plated with gold for reliability.
This RJ45 connector has 6 ways.
The termination type of this connector is solder.
The minimum operating temperature for this model is -65°C.
This modular jack is suitable for telecom, data networking, and home entertainment hardware applications.
This connector is unshielded, making it suitable for non-EMI sensitive environments.
The orientation of this RJ45 connector is straight.
This connector is manufactured in China.
