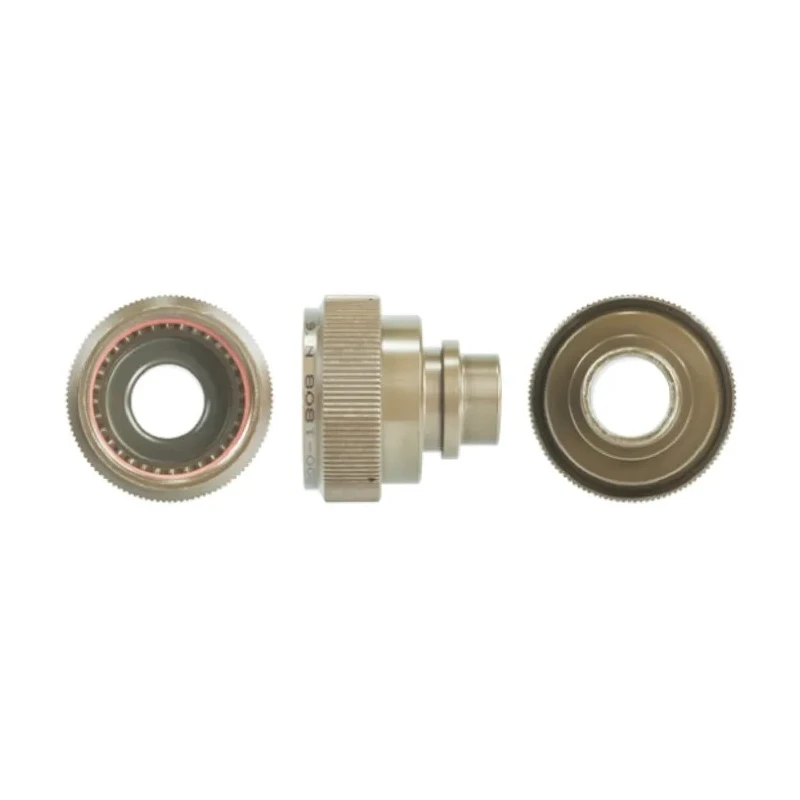

TE Connectivity Straight Circular Connector Adapter 1 M22 Female Cadmium Plated Aluminium Contacts TXR40AB00-1410AI
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 26.9mm |
| Model | TXR40AB00-1410AI |
| Contact Material | Aluminium |
| Series | TXR |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | 0°C |
| Contact Plating | Cadmium |
| Connector Gender A | Female |
| Shell Plating | Cadmium |
| Number of Contacts A | 1 |
| Connector Size A | M22 |
| Contact Gender A | Female |
| Number of Ports A | 1 |
| D38999/20, Series III | Class C, F, K, W - Receptacle, wall mount flange |
| D38999/24, Series III | Class C, F, K, W - Receptacle, jam nut mount |
| D38999/26, Series III | Class C, F, K, W - Plug, EMI grounding fingers |
| D38999/40, Series IV | Class C, F,W - Receptacle, wall mount flange |
| D38999/46, Series IV | Class F,W - Plug, EMI grounding fingers |
| D38999/47, Series IV | Class C,W - Plug |
Key Features
- This adapter is designed to terminate braided cable shields to MIL-C-38999 connectors using a two-piece Tinel Lock system.
- The aluminium alloy spin coupling terminates the braid and interfaces with the connector's rear threads.
- The Tinel-Lock ring made of shape memory metal ensures a permanent 360° termination resistant to shock and corrosion.
- Suitable for applications requiring water-tight sealing meeting MIL-C-85049 standards.
- Operating temperature ranges from 0°C to 175°C for high reliability in demanding environments.
- Shell plating and contact plating are cadmium for corrosion resistance.
- Compatible with several MIL-DTL-38999 Series III and IV connectors.
- This product is new and intended for industrial, electronic, and military applications.
Product Description
TE Connectivity TXR40AB00-1410AI is a straight circular connector adapter designed for terminating braided cable shields to MIL-C-38999 connectors. It features a robust aluminium body with cadmium plating on both the shell and contacts, enhancing corrosion resistance and electrical performance. This adapter utilizes the TXR series Tinel Lock system, comprising a two-piece assembly including an aluminium alloy modified spin coupling and a special shape memory metal Tinel-Lock ring.
The Tinel-Lock ring uniformly shrinks when heated, providing a permanent 360° termination that withstands shock, vibration, thermal cycling, and corrosion. This assembly ensures reliable cable shield termination essential for military and industrial-grade connector applications.
The device has a connector size of M22 with female gendered contacts and a length of 26.9 mm in a straight orientation. Operating temperature ranges from 0°C to 175°C, suitable for harsh environmental conditions. The connector adapter is compatible with Raychem code 40 MIL-C-38999 connectors, including Series III and IV receptacles and plugs under various class designations.
Such adapters provide water-tight sealing compliant with MIL-C-85049 standards when mated with appropriate connectors, making them ideal for critical electronic, aerospace, military, automotive, and industrial applications.
This adapter terminates cable shields with a Tinel Lock two-piece spin coupling system. The Tinel Lock ring is a shape memory metal providing permanent cable attachment upon heating. Shell and contacts are plated with cadmium for corrosion resistance.
Designed for use with MIL-C-38999 Series III & IV connectors across multiple classes and mounting types. Operates reliably within a temperature range of 0°C to 175°C. Ensures reliable EMI grounding and environmental sealing.
Length of 26.9 mm and M22 female connector size for broad compatibility. Offers robust cable termination solutions for demanding industrial and military standards. This product is new and meets strict quality and performance criteria.
TE Connectivity products are renowned for industrial and electronic connector solutions applied in aerospace, defense, manufacturing, and other high-reliability sectors. Explore further options in Circular Connector Adapters for all your connection needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector adapter is 175°C.
This model has a length of 26.9 mm.
This adapter utilizes a two-piece Tinel Lock system for terminating braided cable shields.
The connector size of this unit is M22 with female gendered contacts.
The orientation of this connector adapter is straight.
This model has one contact.
The country of origin for this product is India.
This adapter is intended for industrial, electronic, and military applications, providing robust cable termination solutions.
