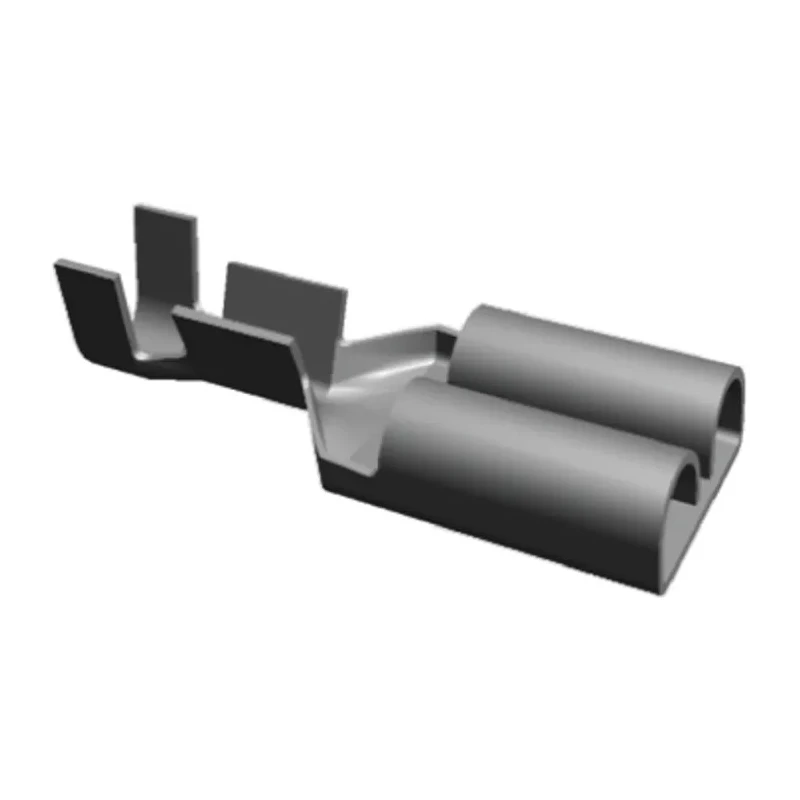

TE Connectivity FASTIN-FASTON 250 Black Uninsulated Female Spade Connector Crimp 6.35 x 0.81 mm Tab Size 5-160526-9
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Orientation | Straight |
| Gender | Female |
| Insulation | Uninsulated |
| Overall Length | 19.2mm |
| Contact Material | Phosphor Bronze |
| Series | FASTIN-FASTON .250 |
| Termination Type | Crimp |
| Interfaces | lances for secure retention in housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 15AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.35 x 0.81 mm |
Key Features
- Designed for quick application to conductor using the appropriate crimp tooling.
- Includes locking lances for secure retention in housings.
- Precisely controlled crimping specifications ensure consistent performance.
- Constructed from phosphor bronze contact material with tin plating for corrosion resistance.
- Suitable for wire sizes ranging from 20 AWG to 15 AWG (0.5 to 1.5 mm²).
- Black uninsulated coating with a straight orientation enhances compatibility.
- Overall length of 19.2 mm supports versatile installation.
- Commonly used in appliance and automotive industries including electric ranges and vehicle harness wiring.
Product Description
TE Connectivity 5-160526-9 FASTIN-FASTON 250 Black Uninsulated Female Spade Connector is designed for crimp termination applications with a tab size of 6.35 x 0.81 mm, providing reliable electrical and mechanical performance. The uninsulated connector is made from phosphor bronze with a tin plating to ensure durability and resistance to corrosion.
These connectors feature locking lances that secure the terminal in the housing, preventing accidental disconnection. The precisely controlled crimping specifications guarantee uniform reliability and maximum tensile strength, contributing to long-lasting circuit connections. The product is engineered for quick and accurate conductor attachment using compatible crimp tooling sold separately.
Ideal for use with wire sizes from 20 AWG (0.5 mm²) to 15 AWG (1.5 mm²), the connector’s overall length of 19.2 mm and straight orientation facilitate easy installation in a variety of electronic and electrical components.
Applications for these FASTIN-FASTON 250 series connectors are prevalent in the appliance industry - including electric ranges, washers, and dryers - as well as in the automotive sector for wiring harnesses. Their design offers excellent resistance against vibration and corrosion, making them suitable for demanding environments.
Quick application to conductor with use of correct tooling. Locking lances for secure retention within housings. Precisely controlled crimping for reliable connections. Constructed from phosphor bronze with tin plating. Accommodates wire sizes 20 AWG to 15 AWG (0.5 to 1.5 mm²).
Uninsulated black finish and straight orientation. Overall length of 19.2 mm for versatile use. Used in appliance and automotive wiring applications.
These Spade Connectors are key components in electrical assembly, manufacturing, and repair, especially in industrial, automotive, and household appliance manufacturing environments. For further exploration and compatible accessories, browse the comprehensive selection of TE Connectivity connectors and crimp tools on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tab size of this connector is 6.35 x 0.81 mm.
It accommodates wire sizes ranging from 20 AWG (0.5 mm²) to 15 AWG (1.5 mm²).
This connector is constructed from phosphor bronze with tin plating for corrosion resistance.
The overall length of this connector is 19.2 mm.
It uses a crimp termination type for secure connections.
No, this connector is uninsulated.
It is commonly used in the appliance and automotive industries, including applications in electric ranges and vehicle harness wiring.
It features locking lances that secure the terminal in the housing, preventing accidental disconnection.
The connector has a straight orientation, which enhances compatibility for installation.
The country of origin for this connector is India.
The contact plating of this connector is tin, which provides additional corrosion resistance.
The connector requires compatible crimp tooling for quick and accurate conductor attachment, which is sold separately.
