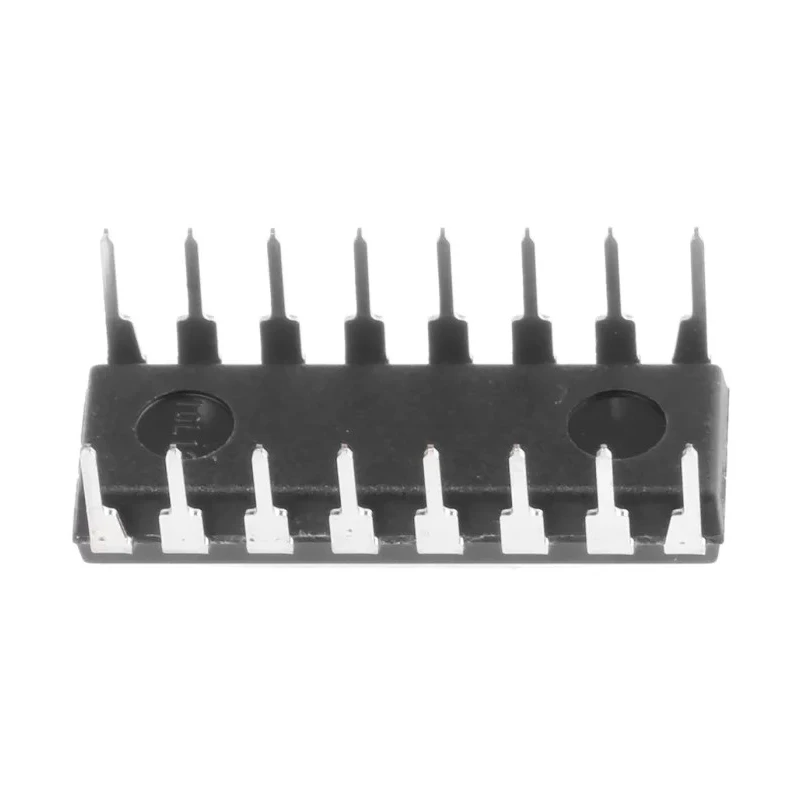

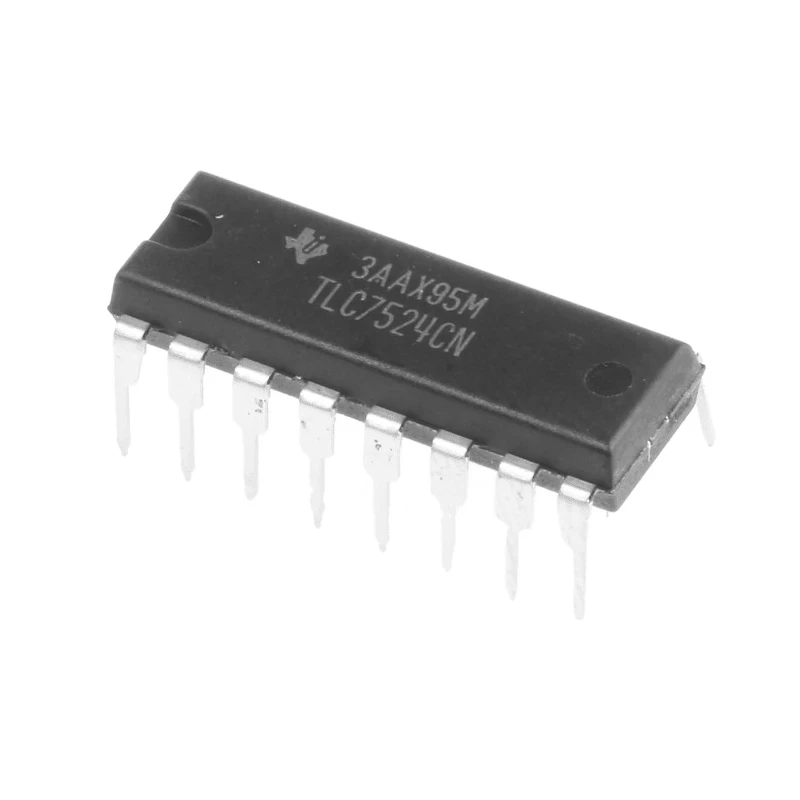

Texas Instruments Digital to Analogue Converter DAC 8 bit Parallel 10 Msps 16-Pin PDIP TLC7524CN
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 8 bit |
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 26.9mm |
| Model | TLC7524CN |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Settling Time | 0.1μs |
| Sampling rate | 10Msps |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Interface Type | Parallel |
| Architecture | R-2R, Resistor String |
| Pin Count | 16 |
| Maximum Supply Voltage | 16.5V |
| Minimum Supply Voltage | 5.5V |
Key Features
- Features 8-bit resolution for precise digital to analog conversion.
- Supports a maximum sampling rate of 10 megasamples per second for fast operation.
- Equipped with 16 pins in a through hole PDIP package for easy mounting.
- Operates within a supply voltage range of 5.5V to 16.5V.
- Has a fast settling time of 0.1 microseconds to provide rapid output stabilization.
- Operates reliably within 0°C to 70°C temperature range for industrial applications.
- Parallel interface type ensures simple and direct digital signal input.
- Compact dimensions with length 26.9mm, width 6.6mm, and height 5.08mm.
Product Description
Texas Instruments TLC7524CN is a high-performance 8-bit Digital to Analogue Converter (DAC) employing an R-2R resistor string architecture. This device provides accurate and fast conversion of digital signals to analog voltage outputs, suitable for various electronic and industrial applications.
It features a parallel interface with 16 pins in a through hole PDIP package, allowing for easy integration into circuit boards. Operating voltage range spans from 5.5V up to 16.5V, enabling flexible power supply configurations.
The device achieves sampling rates up to 10 megasamples per second, making it suitable for applications requiring rapid analog signal generation. A settling time of 0.1 microseconds ensures quick stabilization of output signals.
Designed to function reliably in ambient temperatures from 0°C to 70°C, this DAC is suitable for standard industrial environments. Its compact package dimensions are 26.9mm (length), 6.6mm (width), and 5.08mm (height), enabling space-efficient circuit designs.
No specific automotive standards or additional approvals are applicable to this model. The device requires an external voltage reference for operation. This DAC is ideal for use in industrial automation, data acquisition systems, signal processing, and embedded control systems requiring precise analog output from digital data.
Features 8-bit resolution for precise digital to analog conversion. Supports a maximum sampling rate of 10 megasamples per second for fast operation. Equipped with 16 pins in a through hole PDIP package for easy mounting.
Operates within a supply voltage range of 5.5V to 16.5V. Has a fast settling time of 0.1 microseconds to provide rapid output stabilization. Operates reliably within 0°C to 70°C temperature range for industrial applications.
Parallel interface type ensures simple and direct digital signal input. Compact dimensions with length 26.9mm, width 6.6mm, and height 5.08mm. No automotive or specific compliance standards applied. Explore additional Texas Instruments DAC and data converter products on EnvMart for your electronics design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum sampling rate of this model is 10 megasamples per second (Msps).
The operating voltage range is from 5.5V to 16.5V.
The dimensions are 26.9mm in length, 6.6mm in width, and 5.08mm in height.
It uses a parallel interface type for simple and direct digital signal input.
The settling time is 0.1 microseconds, allowing for rapid output stabilization.
It operates reliably within a temperature range of 0°C to 70°C.
This model is equipped with 16 pins in a through hole PDIP package.
No specific automotive standards or additional approvals are applicable to this model.
It is suitable for industrial automation, data acquisition systems, signal processing, and embedded control systems requiring precise analog output.
It supports through hole mounting for easy integration into circuit boards.
