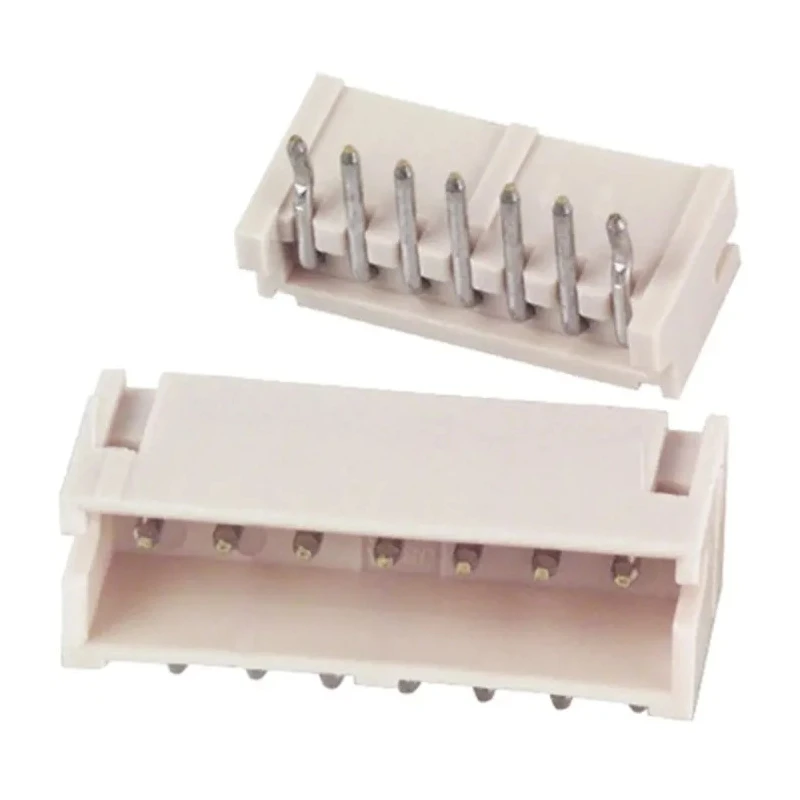

JST ZH Series Right Angle Through Hole Shrouded PCB Header 7 Contacts 1.5 mm Pitch S7B-ZR (LF)(SN)

The JST S7B-ZR (LF)(SN) is part of the ZH Series offering a right angle, through hole mounted, shrouded PCB header designed for wire-to-board connectivity with a 1.5 mm pitch and 7 contacts arranged in a single row.

Constructed with a polyamide housing and brass contacts plated with tin, this connector balances mechanical stability and electrical performance. Its shrouded structure provides protection for the contacts and reduces the risk of damage or short circuits during assembly and operation.

With an operating temperature range from -25°C to 85°C, this PCB header is suited for industrial, electronic, telecommunications, and manufacturing applications requiring dependable wire-to-board connections under varying thermal conditions.

The 1A current and 50V voltage ratings make it ideal for low-power signal and control circuits. The through hole mount type ensures robust mechanical retention on printed circuit boards, particularly in vibration-prone environments.

Its right angle orientation facilitates space-saving horizontal mounting on PCBs, which is beneficial for compact electronic device design or dense board layouts. The single-row contact configuration supports straightforward circuit designs with 7 connections.

Typical uses include industrial electronic assemblies, embedded system boards, communication equipment, and other applications where secure, durable, and precision connectors are critical.

Features 7 male contacts made of brass with tin plating. 1.5 mm pitch between contacts to accommodate compact board spacing. Polyamide housing provides electrical insulation and environmental protection. Right angle orientation with through hole mounting for secure PCB attachment.

Supports current of 1A and voltage up to 50V suitable for low-power applications. Shrouded design enhances contact protection and prevents accidental electrical shorts. Operates reliably within temperature range of -25°C to 85°C.

Solder termination type provides strong electrical and mechanical connections. Manufactured in Republic of Korea ensuring quality control and reliability. Widely used in industrial, electronic, and manufacturing sectors for PCB interconnects.
