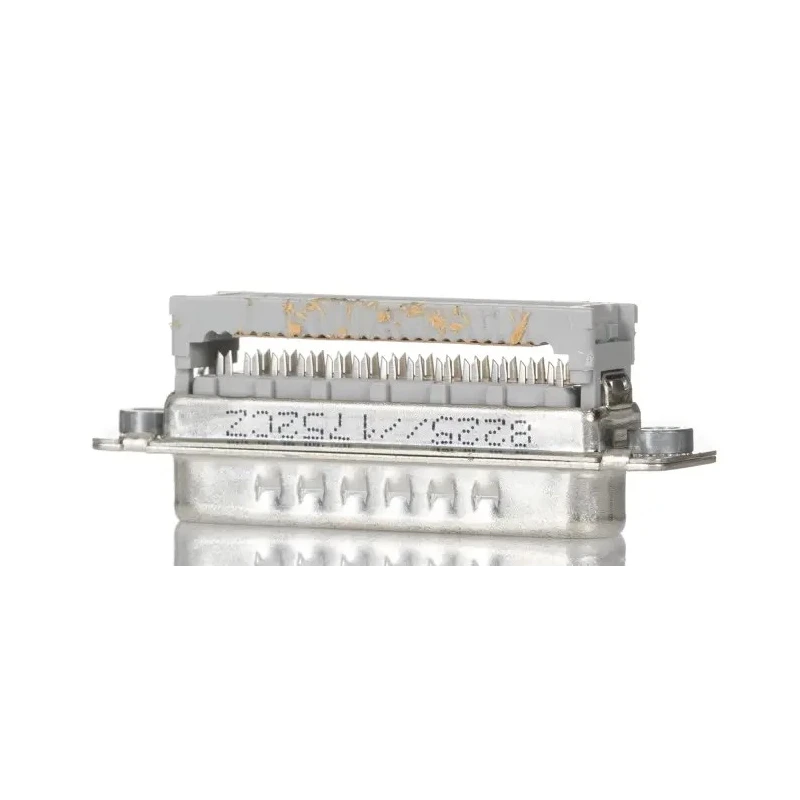

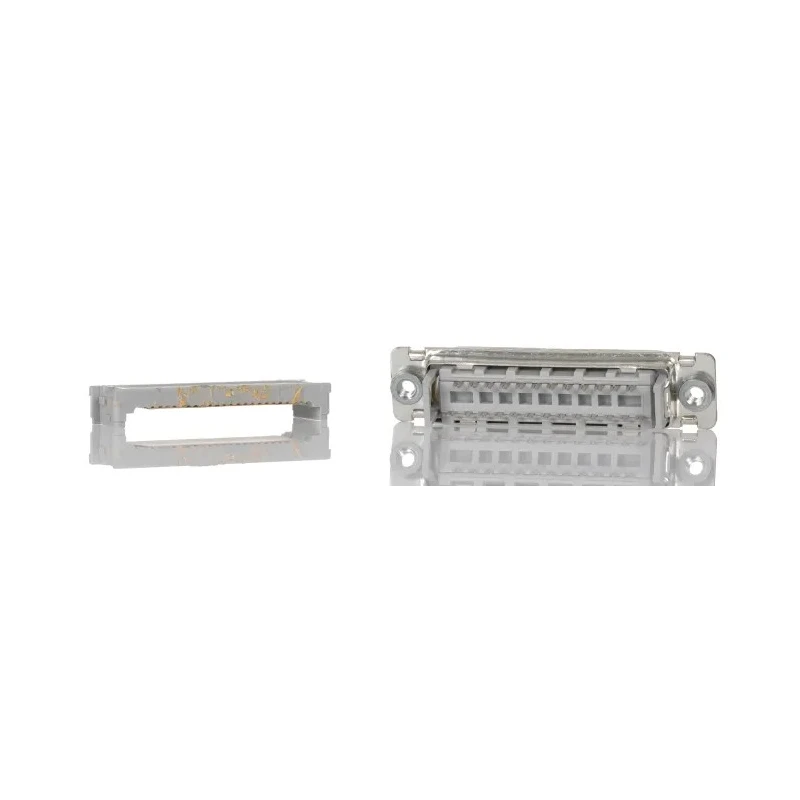

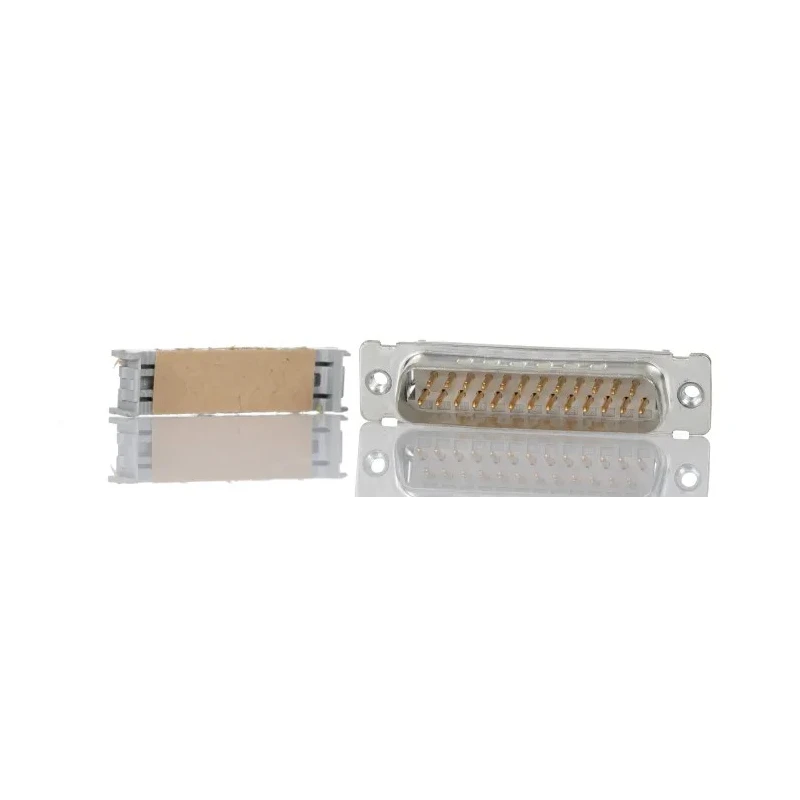

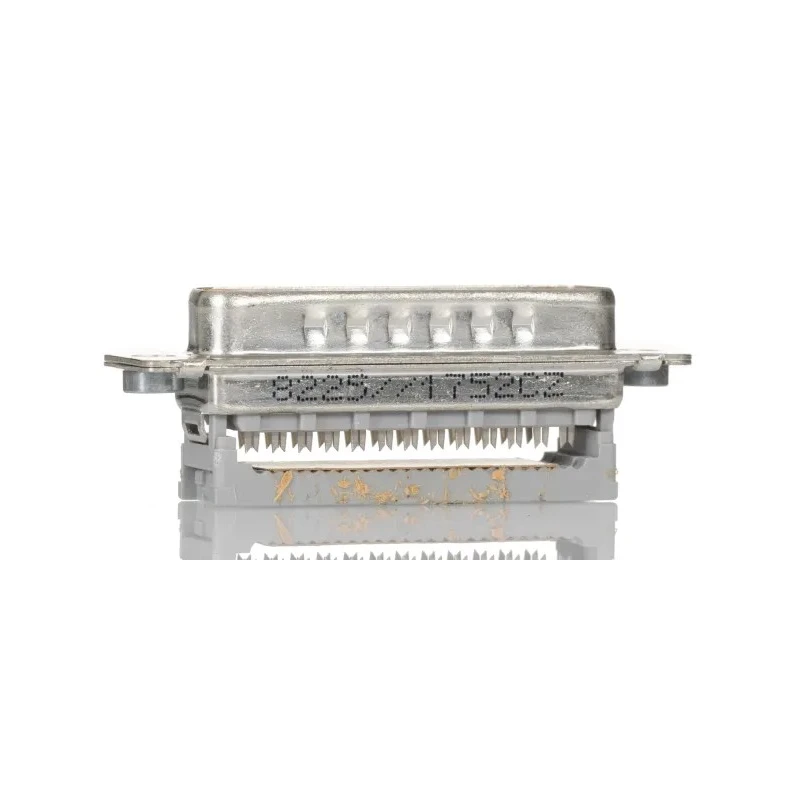

3M 8200 25 Way Right Angle 1.27 mm Pitch Cable D-Sub Connector 8225-6003
Specifications
| Country of Origin | India |
|---|---|
| Brand | 3M |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | 8200 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 1.27mm |
| Standards/Approvals | UL 94V-0, RoHS |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Connector Type D | D-Sub |
Key Features
- The right-angle body orientation facilitates installation in confined spaces.
- It features 25 gold-plated copper alloy contacts ensuring excellent signal integrity.
- Steel housing provides robust durability and long service life.
- Rated for current up to 1A, suitable for industrial controls.
- Supports a wide temperature range from -55°C to 105°C for harsh environments.
- IDC termination enables secure cable mounting and easy assembly.
- Compliant with UL 94V-0 flame retardant standards and RoHS regulations.
Product Description
3M 8225-6003 25 Way Right Angle 1.27 mm Pitch Cable D-Sub Connector is designed for reliable and durable electronic interconnections requiring precise mating and secure cable termination.
Its right-angle orientation allows for space-saving mounting in electronic and automation equipment installations. The connector comprises 25 male contacts made from copper alloy with gold over nickel plating, ensuring optimal electrical conductivity and corrosion resistance.
The sturdy steel housing protects the connector in demanding industrial environments and resists mechanical stresses. It is rated for 1 ampere current carrying capacity, making it suitable for low power signal and control applications.
The wide operating temperature range from -55°C to 105°C enables usage in harsh ambient conditions typical in industrial and manufacturing settings. The IDC (Insulation Displacement Contact) termination style offers quick, reliable connection to cables without soldering.
The right-angle form factor allows installation in tight enclosures. Gold-plated contacts ensure consistent signal transmission with low contact resistance. Steel housing enhances connector durability under mechanical stresses.
RoHS compliance supports environmentally responsible manufacturing requirements. Rated for operation in extreme temperature conditions from -55°C to +105°C. Supports 25 individual signal paths for multi-channel connectivity.
Ideal for industrial automation, electronic instrumentation, and communication equipment. This 3M D-Sub Connector is a trusted choice in electronics, automation, and power connector applications where reliability, durability, and compliance are critical.
Explore EnvMart's extensive range of 3M connectors and related components for professional industrial and electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for a current carrying capacity of 1 ampere, making it suitable for low power signal and control applications.
It supports a wide operating temperature range from -55°C to 105°C, enabling usage in harsh ambient conditions typical in industrial environments.
The connector features 25 male contacts, allowing for multi-channel connectivity in electronic applications.
It uses IDC (Insulation Displacement Contact) termination, which allows for quick and reliable cable connections without soldering.
The housing is made of steel for durability, while the contacts are composed of copper alloy with gold over nickel plating for optimal electrical conductivity.
The pitch of the contacts is 1.27 mm, which is standard for D-Sub connectors.
Yes, it is compliant with UL 94V-0 flame retardant standards and RoHS regulations, supporting environmentally responsible manufacturing.
This model is ideal for industrial automation, electronic instrumentation, and communication equipment, where reliable connections are critical.
It features a right-angle orientation, which facilitates installation in confined spaces, making it suitable for tight enclosures.
The contacts in this connector are male, designed for secure mating with corresponding female connectors.
The gold plating over nickel ensures excellent signal integrity and corrosion resistance, contributing to reliable performance in electronic applications.
The connector is manufactured in India, which is noted as its country of origin.
