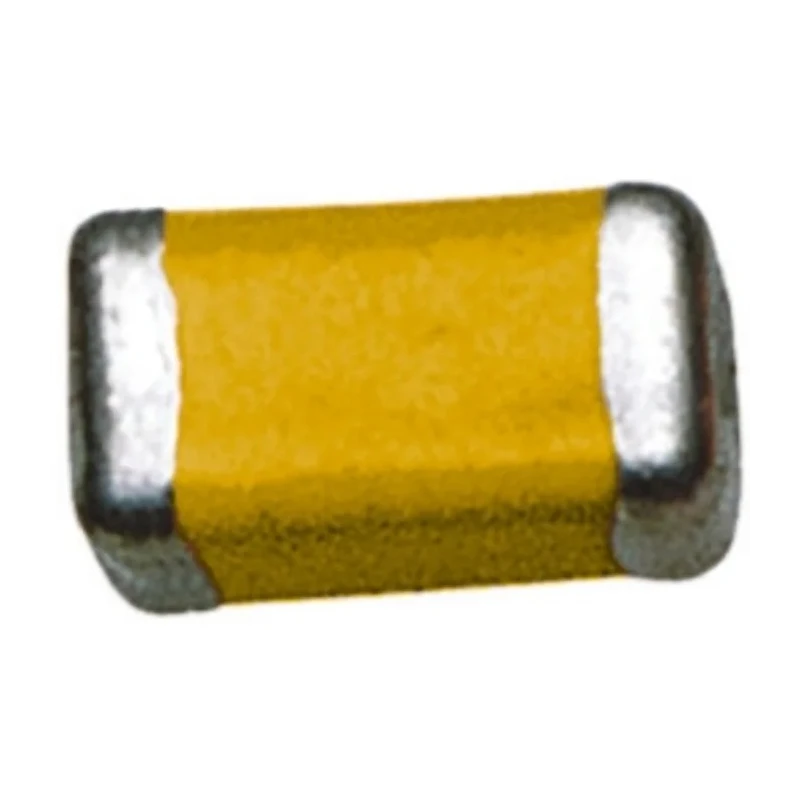

TDK 470 pF Multilayer Ceramic Capacitor 2kV dc ±10 % Surface Mount Tape & Reel 1808 C4520X7R3D471K130KA
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 2kV dc |
| Brand | TDK |
| Height | 1.3mm |
| Length | 4.5mm |
| Model | C4520X7R3D471K130KA |
| Packaging | Tape & Reel |
| Width | 2mm |
| Mount Type | Surface |
| Series | C |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 470pF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Package/Case | 1808 |
| Dielectric | X7R |
Key Features
- High voltage rating of 2kV dc enables use in demanding electrical circuits.
- Compact 1808 package size ensures space-saving PCB design.
- X7R dielectric provides stable temperature performance from -55°C to 125°C.
- Surface mount termination facilitates automated assembly.
- Packaged in tape and reel format for efficient manufacturing integration.
- Capacitance tolerance of ±10 % ensures reliable performance.
- Complies with RoHS standards for environmental safety.
- Series C type capacitor optimized for high voltage and reliability.
Product Description
TDK C4520X7R3D471K130KA is a precision multilayer ceramic capacitor designed for surface mount technology (SMT) applications requiring high voltage operation. Featuring a nominal capacitance of 470 pF and a rated voltage of 2kV dc, it supports a wide operating temperature range from -55°C up to 125°C. The compact 1808 package dimensions of 4.5mm length, 2mm width, and 1.3mm height allows efficient PCB layout where space is critical.
This component uses an X7R dielectric which maintains capacitance stability across temperature variations, making it suitable for industrial, power electronics, and automotive systems where electrical reliability is paramount. Its termination type is surface mount, compatible with automated pick-and-place assembly and solder reflow processes. The capacitor is supplied in tape and reel packaging, ensuring streamlined manufacturing insertion.
The ±10 % capacitance tolerance delivers predictable performance in filter, timing, and coupling applications. This capacitor series 'C' is part of TDK's high voltage 1808 range, engineered for durability and consistent results. It complies with RoHS directives, emphasizing environmental and user safety.
Capacitance: 470 pF with ±10 % tolerance. Voltage rating: 2kV dc for high voltage stability. Package type: 1808 form factor measuring 4.5 x 2 x 1.3 mm. Dielectric material: X7R offers temperature range -55°C to 125°C. Surface mount termination suitable for modern electronics manufacturing.
Tape & reel packaging supports automated assembly. Applications include industrial, automotive, power electronics, and precision filtering.
This TDK multilayer ceramic capacitor is ideal for engineers and manufacturers requiring reliable high voltage capacitors with stable temperature characteristics and efficient assembly processes. Browse more electronic components and Multilayer Ceramic Capacitors at EnvMart for your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 470 pF with a tolerance of ±10%.
It has a voltage rating of 2kV dc, making it suitable for high voltage applications.
The capacitor has a compact 1808 package size with dimensions of 4.5mm in length, 2mm in width, and 1.3mm in height.
This unit uses an X7R dielectric, which provides stable temperature performance.
It operates within a temperature range of -55°C to 125°C.
It is packaged in tape and reel format, which facilitates efficient automated assembly processes.
This model features surface mount termination, suitable for modern electronics manufacturing.
It belongs to the C series, which is optimized for high voltage and reliability.
Yes, it complies with RoHS standards for environmental safety.
This capacitor is suitable for applications in industrial, automotive, and power electronics, as well as precision filtering.
Key features include a high voltage rating of 2kV dc, compact size, X7R dielectric, and surface mount termination.
The country of origin for this capacitor is India.
