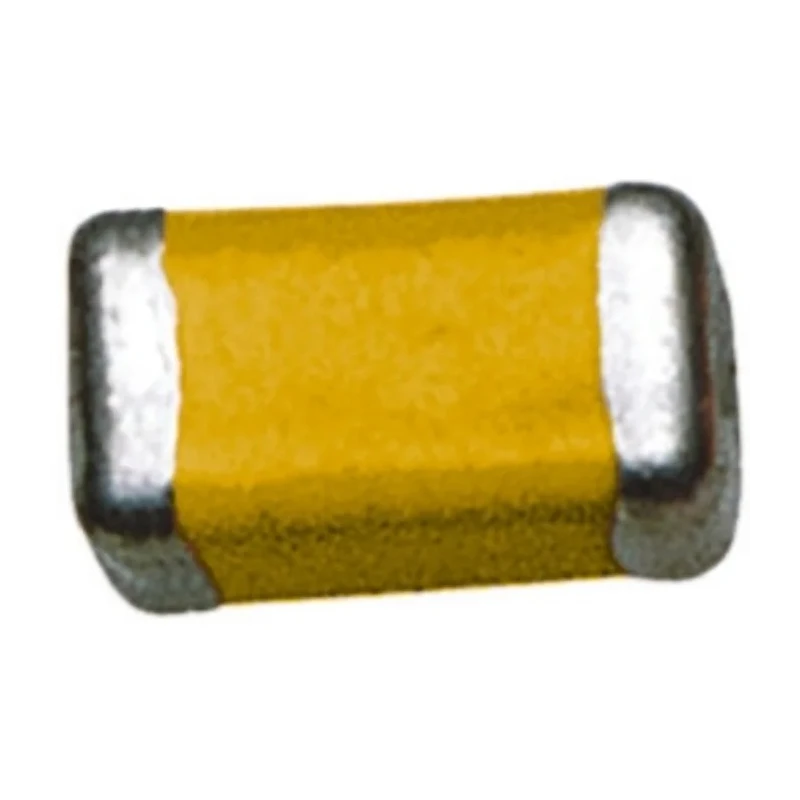

TDK 1 nF Multilayer Ceramic Capacitor, 630V dc, ±5 % Tolerance, Surface Mount 1206 Case C3216C0G2J102J085AA

TDK C3216C0G2J102J085AA is a 1 nF multilayer ceramic capacitor rated at 630V dc with a ±5 % capacitance tolerance. It features a surface mount assembly type in a compact 1206 package size, designed for high reliability and consistent performance in diverse commercial electronic applications. The capacitor employs a C0G dielectric, known for its superior temperature stability and low equivalent series resistance, making it ideal for circuits requiring accurate capacitance over a wide temperature range from -55°C to 125°C.

This MLCC’s monolithic multilayer structure enhances mechanical strength and frequency characteristics, reducing circuit parasitics like equivalent series inductance (ESL), thus improving overall electronic circuit response and reliability. The capacitor’s low self-heating and high ripple resistance ensure robust operation in power supply circuits, LED displays, office automation, mobile communications, and other general electronic systems.

Packaged in tape & reel, this capacitor suits automated pick-and-place manufacturing processes in electronics assembly. Although it does not meet automotive standards, it is widely used in industrial and commercial grade applications such as servers, PCs, notebooks, and consumer electronics, providing cost-effective, stable capacitance where tight tolerance and high voltage ratings are required.

High reliability multilayer ceramic capacitor with C0G dielectric. 1 nF capacitance with ±5 % tolerance for precision applications. 630V dc voltage rating suitable for power circuits and LED display use. Compact 1206 surface mount package facilitates space-saving PCB design.

Wide operating temperature range from -55°C to 125°C ensures performance stability. Low ESR and ESL for excellent frequency characteristics and minimal signal distortion. Tape & reel packaging supports automated electronic assembly line processes.

Ideal for general electronic equipment, communication devices, and office automation tools. Explore more Multilayer Ceramic Capacitors and passive components to optimize your electronic designs on EnvMart.
