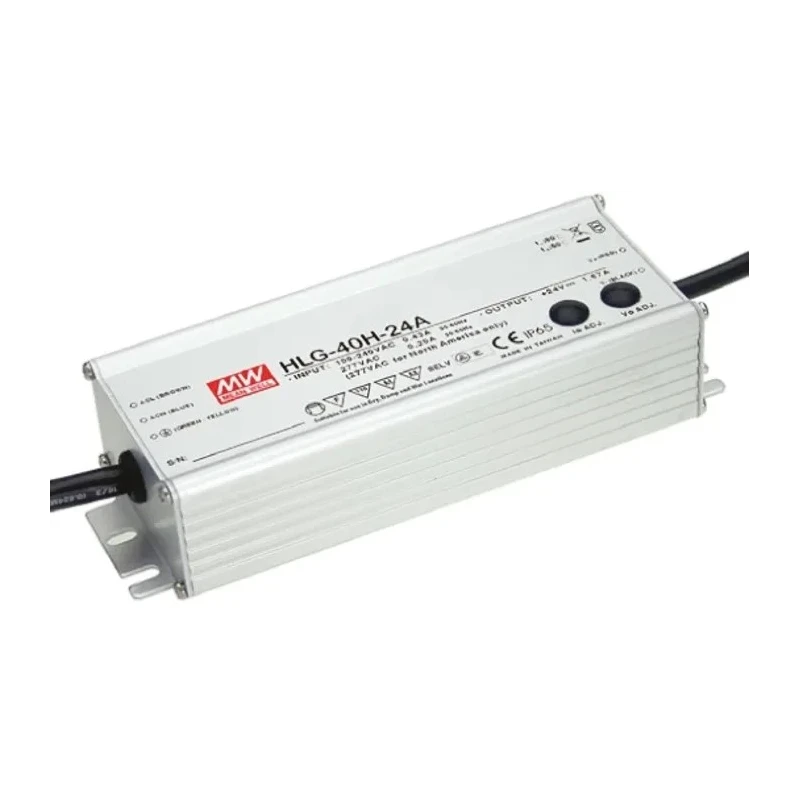

MEAN WELL Dimmable Constant Voltage LED Driver 24V 40.08 W, 1.67A, 5 Outputs IP67 Waterproof

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL Dimmable Constant Voltage LED Driver 24V 40.08 W, 1.67A, 5 Outputs IP67 Waterproof

Name: MEAN WELL Dimmable Constant Voltage LED Driver 24V 40.08 W, 1.67A, 5 Outputs IP67 Waterproof
Brand: MEAN WELL
SKU: 129091



Category LED Drivers Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Model	IP67
IP Rating	IP67
Mount Type	Screw
Series	HLG-40H
Configuration	Enclosed
Sub Type	LED Driver
Operating Modes	Constant Voltage
Number of outputs	5
Terminal type	Wire
Maximum Output Power	40.08W
Input Voltage	305, 90, 127, 431V ac
Output Voltage	24V
Power Dissipation	40.08W
Standards/Approvals	EAC, CSA, CE, CB, BIS, SELV, UL
Dimming Operation	1 to 10 V PWM Resistance
Primary Type	AC-DC
Driver Current	1.67A

Key Features

Offers universal AC input voltage range with IP67 waterproof design.
Supports 1 to 10 V PWM resistance dimming operation.
Equipped with active power factor correction for efficient energy use.
Provides overload, short circuit, over temperature, and over voltage protection.
Suitable for indoor and outdoor LED lighting applications in harsh environments.
Enclosed mounting style using screw terminals for robust installation.
Complies with major international electrical safety standards including UL, CSA, CE, and CB.
Maintains constant voltage output mode with adjustable current level via output cable.

Product Description

MEAN WELL HLG-40H-24B is a premium-grade IP67 rated dimmable LED driver delivering a maximum output power of 40.08 W at 24 V DC and 1.67 A current. Designed for robust industrial and commercial LED lighting applications, this constant voltage driver operates safely in indoor and outdoor environments thanks to its waterproof enclosure and high ingress protection rating.

The driver features a wide universal AC input voltage range, spanning from 90 V up to 431 V AC, supported by built-in active power factor correction (PFC) for optimized electrical efficiency. It incorporates a 3-in-1 dimming function, comprising 1 to 10 V dimming control, PWM signal input, and resistance dimming capability, allowing flexible brightness adjustment tailored to diverse lighting setups.

Safety and reliability are ensured through integrated protections against short circuit, overload, over voltage, and over temperature conditions, making it suitable for demanding industrial environments. The enclosed configuration with screw mount type and wire terminals provides secure and straightforward installation.

MEAN WELL's HLG-40H-24B is certified according to multiple international standards including UL8750, EN61347-1, EN61347-2-13, CE, CB, CSA, BIS, and carries corroborating EMC and harmonic current compliance to EN55015 Class B and EN61000-3-2 Class C respectively. This driver is ideal for use in LED lighting, moving signs, and other commercial outdoor lighting where dependable dimmable power supplies are required.

Universal AC input with active PFC function. IP67 rated for waterproof, dustproof protection in harsh conditions. 3 in 1 dimming: 1 to 10 V, PWM, and resistance dimming. Multiple protections for enhanced operational safety.

Suitable for dry, damp, and wet locations. Conforms to global safety regulations and EMC standards. Enclosed design with screw mount terminals. Constant voltage output with 5 output channels. Applications include industrial and outdoor LED lighting systems.
