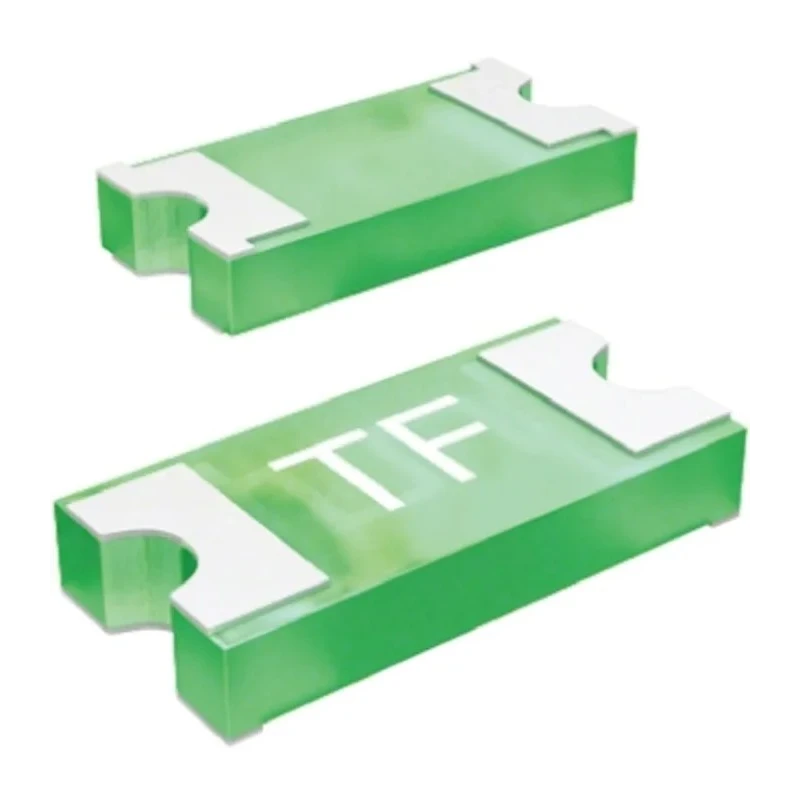

Littelfuse Surface Mount Non-Resettable Fuse 1A, 63V Epoxy Substrate Body 468 Series 0468001.NR

Littelfuse 0468001.NR is a surface mount non-resettable fuse from the 468 series designed for secondary protection of circuits in compact electronic devices. It features a 1A current rating and a voltage rating of 63V, making it ideal for low voltage applications in handheld and portable electronic devices.

The fuse body is made from an epoxy substrate material that ensures excellent insulation and durability under varying environmental conditions. This fuse is characterized by its time delay capability, allowing it to withstand transient surges without unnecessary tripping, ensuring reliable circuit protection.

With a breaking capacity of 50A, this fuse can safely interrupt high fault currents, protecting sensitive components such as silicon ICs in alarm systems, audio/visual equipment, computer boards, power supplies, and medical apparatus.

The compact dimensions (width: 1.52 mm, height: 0.58 mm, depth: 3.18 mm) allow space-saving PCB design via surface mount technology, improving production efficiency and device miniaturization.

This product operates efficiently within a temperature range from -55°C to 90°C and features tin terminals for optimal electrical conductivity. It complies with international standards including CSA and RoHS, ensuring quality and environmental conformity.

Compact 468 series fuse for space-constrained applications. Time delay characteristics for selective circuit protection. Epoxy substrate body enhances durability and insulation. 50A breaking capacity for high fault tolerance.

Surface mount technology for efficient PCB layout. Protects high-value silicon ICs in various electronic devices. Wide operating temperature range suitable for diverse environments. Low resistance of 0.08 Ohm ensures minimal voltage drop.

RoHS and CSA compliant for safety and environmental standards.

This Littelfuse fuse is commonly used in industrial electronics, consumer electronics, telecommunications, medical devices, and other applications requiring compact, reliable circuit protection. EnvMart offers this premium quality fuse for professional electrical and automation projects, facilitating effective current limiting and device safeguarding.
