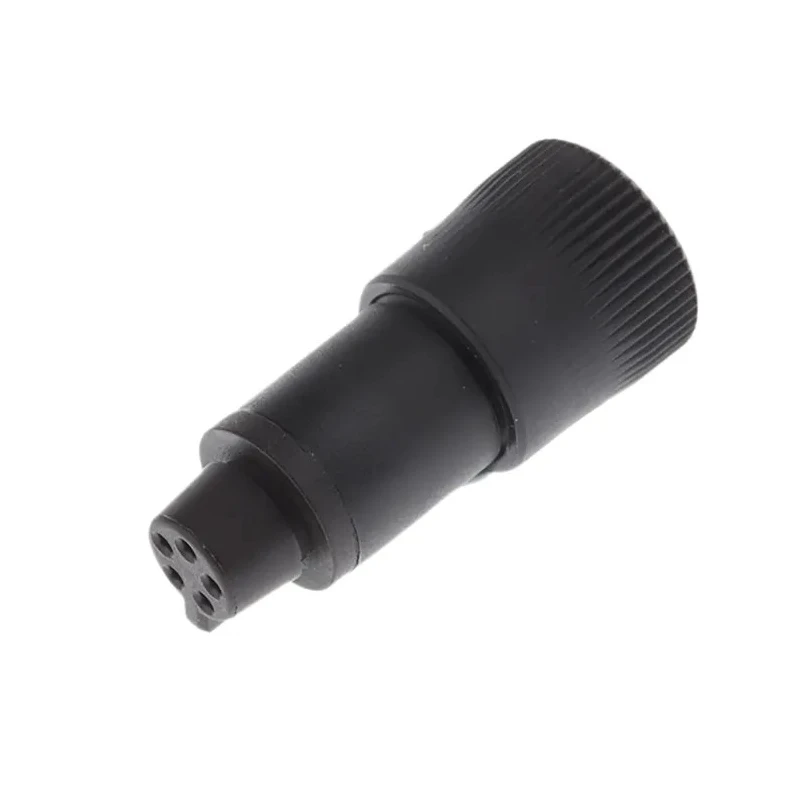

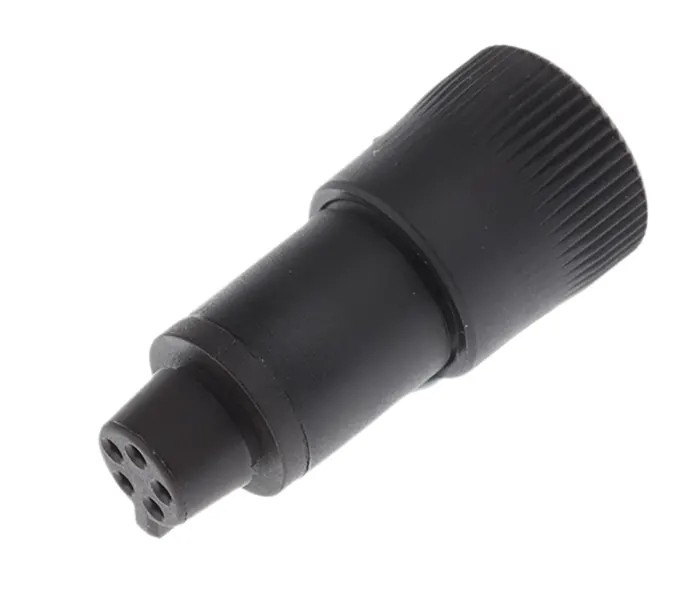

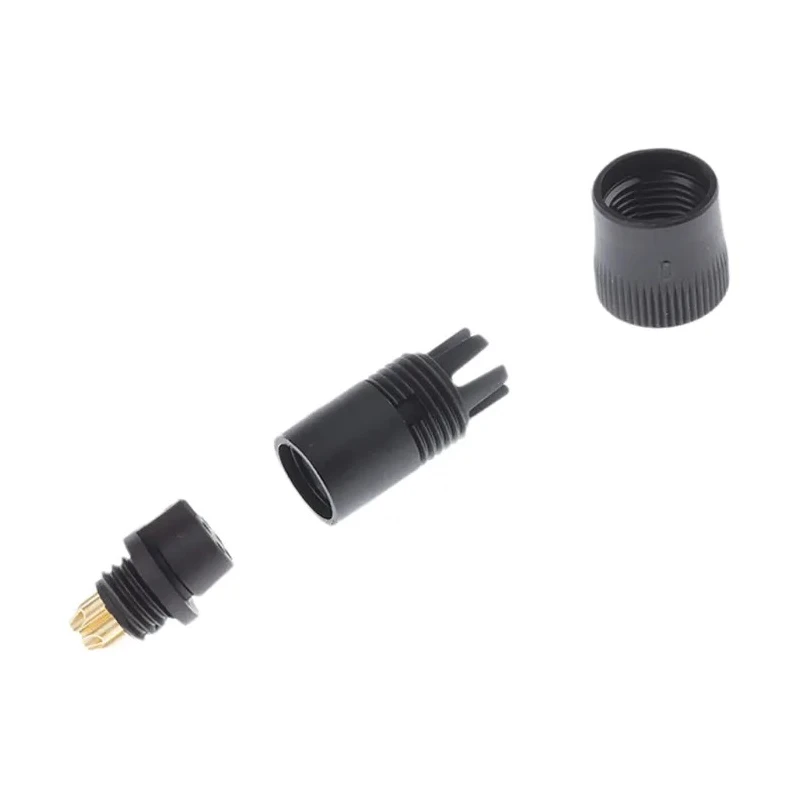

binder Circular Connector 5 Contacts Cable Subminiature Socket Female IP40 719 Series 09-9790-70-05
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125V |
| Brand | binder |
| Orientation | Straight |
| Current | 3A |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Nylon |
| Contact Material | Beryllium Alloy |
| Series | 719 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Shell Size | 10 |
| Mating Type | Snap-In |
| Connector Size | Subminiature |
| Plug/Socket | Socket |
Key Features
- The circular connector features 5 contacts allowing secure signal or power transmission.
- It is a cable mount, subminiature size 10 connector with female socket contact gender.
- Rated for 3A current and 125V voltage for reliable operating conditions.
- The connector has a snap-in mating type and solder termination for stable wire connection.
- Constructed with nylon housing and gold over nickel contact plating for durability and corrosion resistance.
- Operates within -40°C to 85°C temperature range suitable for diverse environments.
- Offers IP40 ingress protection ensuring resistance against solid particles.
- Designed in the 719 Series with straight orientation and beryllium alloy contact material.
Product Description
binder 09-9790-70-05 circular connector 5 contacts cable socket subminiature connector, female, IP40, 719 Series is engineered for demanding industrial and electronic applications where compact, reliable connections are essential.
This cable mount circular connector features 5 solder termination contacts designed for currents up to 3A at 125V, making it ideal for instrumentation, micro electronics, and low power electrical control systems. Its subminiature size 10 shell and snap-in mating mechanism facilitate quick and secure connections.
The connector's female socket contact gender with gold over nickel plating and beryllium alloy material ensures excellent conductivity and corrosion resistance for long-term reliability. Housing made of durable nylon withstands operating temperatures from -40°C to 85°C, supporting use in harsh environments. The IP40 ingress protection rating safeguards against solid foreign objects, enhancing operational stability in industrial and laboratory settings.
With its compact 719 Series design and straight orientation, this connector is suitable for instrumentation wiring, microelectronics manufacturing, and other industrial equipment requiring consistent electrical connectivity.
The circular connector features 5 contacts allowing secure signal or power transmission. Cable mount with subminiature size 10 design supports compact installations. Female socket contact and snap-in mating type enable robust and quick connections.
Solder termination contacts accept wire sizes up to 0.25 mm². Gold over nickel plating on beryllium alloy contacts provides corrosion resistance. Nylon housing material ensures mechanical durability across temperature extremes.
Operating temperature range from -40°C to 85°C suits industrial environments. IP40 rating offers protection against intrusion of solid particles.
This connector is manufactured in Germany to high industrial standards and is widely used in industrial automation, control systems, instrumentation, and microelectronic manufacturing environments where reliable cable connections are critical. The snap-in locking system provides ease of assembly and maintenance, improving production efficiency.
Discover more Industrial Circular Connectors and related power components with binder products at EnvMart for enhanced connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 3A.
The voltage rating for this connector is 125V.
It operates within a temperature range of -40°C to 85°C.
The connector features solder termination for stable wire connections.
The connector has an IP40 ingress protection rating, which protects against solid particles.
The housing is made of nylon, and the contacts are made of beryllium alloy with gold over nickel plating.
This circular connector features 5 contacts.
The shell size of this model is size 10.
It utilizes a snap-in mating type for secure connections.
This connector is manufactured in Germany.
It is suitable for instrumentation, microelectronics, and low power electrical control systems.
The contact gender of this model is female.
