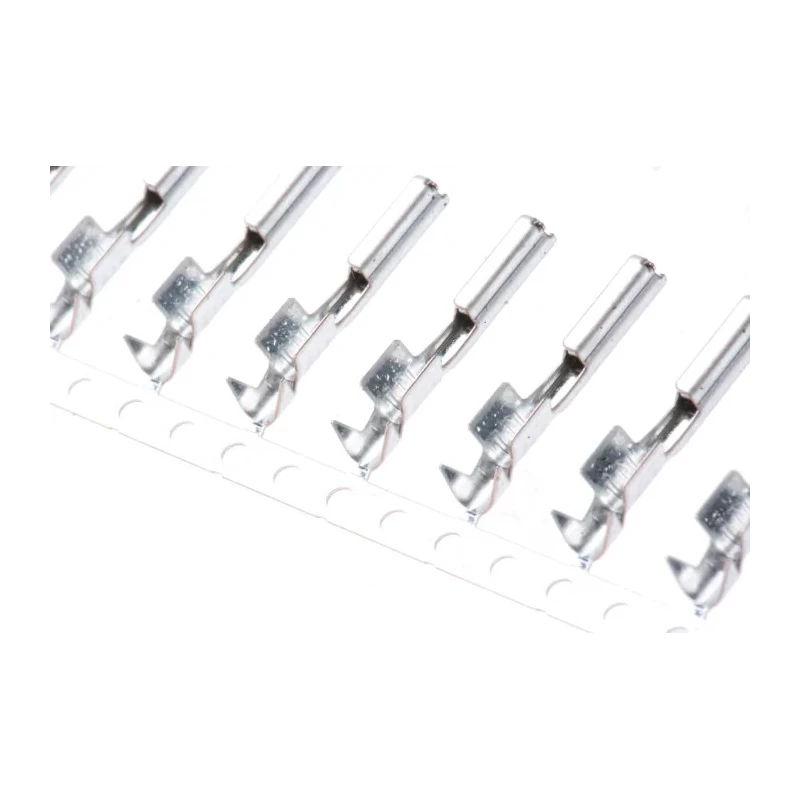

JAE MX23A Series Female Crimp Terminal, 22 AWG Min Crimp, 16 AWG Max

JAE M23S05K351 Female Crimp Terminal is a critical component for MX23A series waterproof connectors, optimized for use with 22 AWG minimum and 16 AWG maximum wire sizes. It features a crimp termination type offering secure and reliable electrical connections. The contact parts are made of copper alloy plated with tin, ensuring durability and excellent conductivity in diverse industrial environments.

This crimp terminal is designed to operate securely within a temperature range of -40°C to 85°C, making it suitable for automotive applications including motorcycles and automobiles, and other sealed equipment requiring robust waterproof connectors.

The MX23A socket connector system includes complementary components such as housing socket, front cap, and dummy pins to provide full connector assembly. The socket contacts feature a double fin structured design that enhances reliability and prevents insertion errors during assembly.

The terminal's front edge is chamfered to protect sealing grommets and ensure effective ingress protection against water, supporting long-term use in harsh environmental conditions.

Constructed with copper alloy contact material for reliable conductivity. Contact plating features tin for corrosion resistance. Operates effectively within temperature range -40°C to 85°C. Termination type is crimp providing secure wire connection.

Compatible with MX23A series 40-way socket connectors. Ensures high-reliability double fin structured socket contact design. Includes large chamfer on front-edge to avoid damage to sealing grommets. Widely used in automotive and sealed equipment applications requiring waterproof performance.

It is mainly used in electronics and electrical applications including power connectors and PCB connector assemblies. The MX23A series is trusted for providing compact, low-profile, and waterproof connectivity solutions at industrial standards.

For complete connector assembly, use in combination with JAE MX23A housing socket (stock number 731-9020), orange front cap (stock number 731-9023), and optionally dummy pins (stock number 731-9036) for unused cavities.

EnvMart offers this JAE terminal as part of a broad electronics component portfolio ideal for industrial automation, automotive manufacturing, and high-reliability electronic equipment production.
