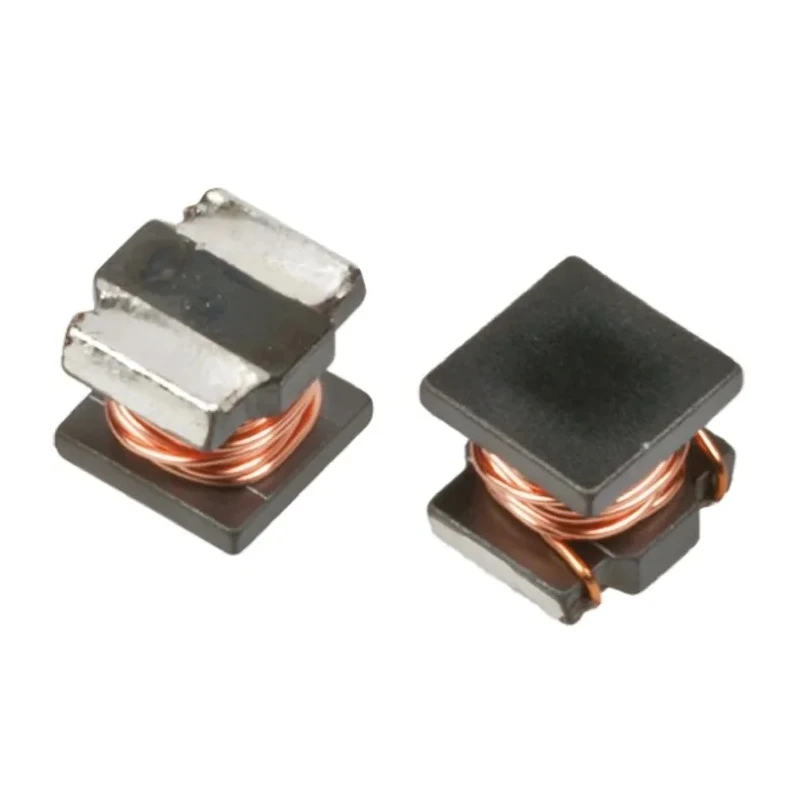

Murata Wirewound Surface Mount Inductor 2220 Package, Ferrite Core, 100 μH ±20% Inductance, 560 mA DC Current LQH55DN101M03L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 4.7mm |
| Length | 5.7mm |
| Model | LQH55DN101M03L |
| Depth | 5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | RoHS |
| Package/Case | 2220 |
| Maximum DC Current | 560mA |
| Maximum DC Resistance | 1.204Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 6.5MHz |
| Inductor Construction | Wirewound |
Key Features
- Constructed with high-performance thick wire winding technology for enhanced current capacity.
- Ferrite core material ensures stable inductance and reduces core loss.
- Surface mount package size 2220 allows for compact PCB integration.
- Low DC resistance of 1.204 Ω improves efficiency in power circuits.
- Operates within -40°C to 80°C temperature range for reliable performance.
- Moulded design provides consistent quality and mechanical strength.
- Maximum self-resonant frequency of 6.5 MHz suitable for high-frequency applications.
- Solder termination style enables easy surface mounting and soldering.
Product Description
Murata LQH55DN101M03L is a wirewound surface mount inductor featuring a ferrite core and an inductance value of 100 μH with a tolerance of ±20%. This 2220 package size component supports a maximum DC current of 560 mA, making it suitable for choke applications in DC-DC converters and DC power supply circuits.
The inductor is constructed using high-performance thick wire wound technology, which offers low direct current resistance of 1.204 Ω and results in high current capacity and low power loss. The ferrite core material enables stable inductance with reduced core losses, ideal for demanding electronic circuits.
This surface mount inductor is designed for use in industrial electronic equipment, power electronics, telecommunications, and consumer electronics requiring compact and reliable inductors. It operates reliably within a temperature range of -40°C to 80°C and has a maximum self-resonant frequency of 6.5 MHz, supporting various high-frequency filtering and energy storage applications.
The solder termination style and moulded construction facilitate straightforward PCB mounting and durability during assembly and operation. Packaging in embossed tape format enhances automated manufacturing efficiency.
High current capacity with low DC resistance enhances power efficiency. Ferrite core provides excellent magnetic performance. Compact 2220 package suitable for space-constrained designs. Wide operating temperature range ensures stability.
Moulded wirewound construction for reliable performance. Compliance with RoHS standards ensures environmental safety. Ideal for applications including DC-DC converters and power supplies.
This Murata wirewound surface mount inductor provides a dependable solution for industrial, telecommunications, automotive electronics, and consumer electronic applications. Explore more Surface Mount Inductors and electronic components within EnvMart's comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 100 μH with a tolerance of ±20%.
This model supports a maximum DC current of 560 mA.
It comes in a 2220 package size, which allows for compact PCB integration.
It operates reliably within a temperature range of -40°C to 80°C.
The maximum self-resonant frequency is 6.5 MHz, suitable for high-frequency applications.
This inductor uses a ferrite core material, which ensures stable inductance and reduces core loss.
The inductor has a low DC resistance of 1.204 Ω, which improves efficiency in power circuits.
It features a solder termination style, facilitating easy surface mounting and soldering.
This inductor is constructed using wirewound technology, which enhances current capacity.
It complies with RoHS standards, ensuring environmental safety.
It is suitable for use in DC-DC converters, power supplies, and various electronic equipment.
The height of this inductor is 4.7 mm.
