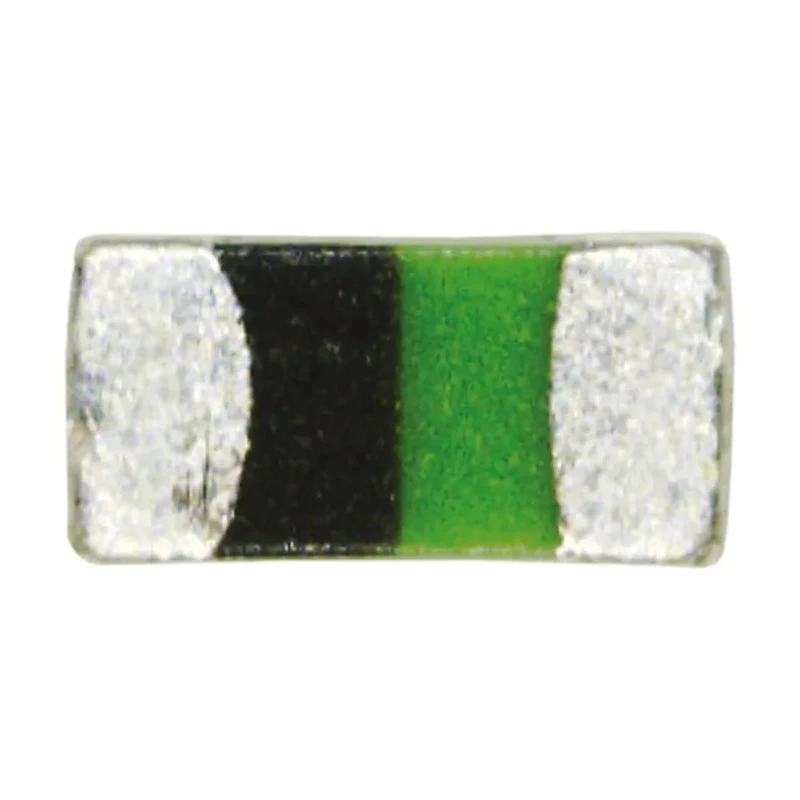

Murata 0402 Shielded Wirewound Surface Mount Inductor 10 nH ±5 % 300 mA Idc Q:8 LQG15HN

Murata LQG15HN is a 0402 shielded wirewound surface mount inductor featuring 10 nH inductance with ±5% tolerance. It supports a maximum DC current of 300 mA and features a robust wirewound construction that provides excellent shielding and stability for high frequency circuits. The Murata LQG15HN Series is specifically designed for high frequency applications such as resonance circuits in mobile communications, WLAN networks, and chokes.

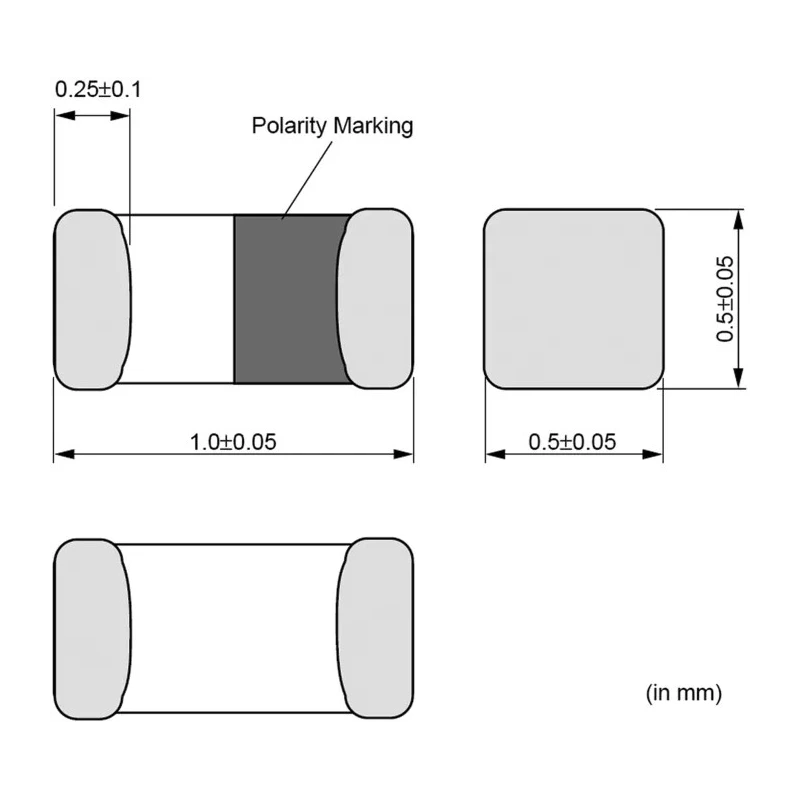

This inductor comes in a compact 0402 package with dimensions of 1 mm length, 0.5 mm height, and 0.5 mm depth, making it ideal for space-constrained designs. It operates efficiently within a temperature range of -55°C to 125°C, with a maximum DC resistance of 350 mΩ that ensures minimal power loss under load conditions.

The product features a high maximum self-resonant frequency of 3.2 GHz and a minimum quality factor (Q) of 8, highlighting its suitability for RF and high frequency applications. Shielded construction reduces electromagnetic interference, further enhancing its performance.

Termination style is solder, and it is supplied in paper tape packaging for efficient automated assembly. The inductor is molded and conforms to high standards with reliable wirewound construction, guaranteeing consistent performance in industrial, laboratory, telecommunications, and commercial electronic applications.

Compact 0402 package size enables high-density PCB layouts. 10 nH inductance with ±5% tolerance for precise circuit tuning. Supports up to 300 mA DC current with low resistance losses. High resonant frequency and quality factor ensure reliable RF performance.

Wide operating temperature range from -55°C to 125°C. Shielded design reduces electromagnetic interference risk. Paper tape packaging compatible with automated manufacturing processes.
