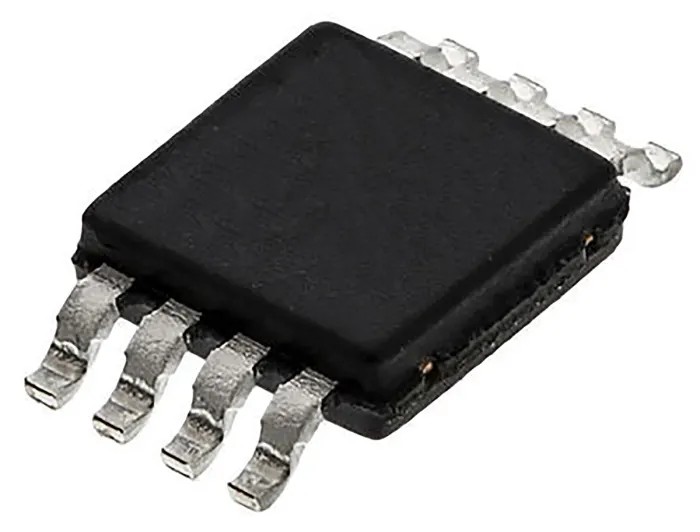

Microchip Non-volatile Digital Potentiometer 64-Position 10 kΩ Linear 1-Channel 8-Pin MSOP MCP4021-103E/MS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 0.95mm |
| Length | 3mm |
| Model | MCP4021-103E/MS |
| Width | 3mm |
| Mount Type | Surface |
| Memory type | Non-Volatile |
| Series | MCP4021 |
| Temperature Coefficient | 50 ppm/°C |
| Maximum Operating Temperature | 125°C |
| Number of Positions | 64 |
| Resistance | 10kΩ |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial-2 Wire |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Taper Type | Linear |
| Number of Pots per Package | 1 |
Key Features
- Features one channel with 64 programmable resistance positions.
- Operates on a supply voltage range from 1.8V to 5.5V.
- Packaged in a compact 8-pin MSOP surface mount package.
- Functions with a Serial 2-Wire interface for easy integration.
- Designed to operate over a temperature range from -40°C to 125°C.
- Has a temperature coefficient of 50 ppm/°C ensuring stability.
- Complies with RoHS standards for environmental compliance.
- Ideal for industrial, laboratory, and electronic design applications requiring precise resistance control.
Product Description
Microchip MCP4021-103E/MS is a non-volatile digital potentiometer designed for precision resistance control in industrial and electronic component applications. This device offers 64 steps of resistance with a 10 kΩ nominal value and features a linear taper, suitable for applications requiring adjustable resistance with non-volatile memory retention.
The potentiometer boasts a single channel controlled via a Serial 2-Wire interface, facilitating simple communication and integration with microcontrollers and digital systems. The compact 8-pin MSOP package measures 3 mm by 3 mm with a height of 0.95 mm, making it ideal for space-constrained environments and surface mount applications.
Operating voltage ranges between 1.8 V and 5.5 V, allowing flexibility in various circuit designs, and it functions reliably within a wide temperature range from -40°C to 125°C, making it suitable for harsh industrial environments. The temperature coefficient of 50 ppm/°C assures minimal resistance deviation with temperature fluctuations.
This digital potentiometer complies with RoHS environmental standards, ensuring it meets industry regulations for restricted substances. It is utilized in diverse industries such as industrial machines, laboratory instrumentation, telecommunications, and consumer electronics where precise electronic tuning is necessary.
Offers 64 discrete resistance steps for fine control. Non-volatile memory retains settings without power. Compact MSOP package for surface mount applications. Serial 2-Wire interface simplifies system integration. Wide supply voltage range from 1.8 V to 5.5 V.
Temperature tolerance from -40°C to 125°C. Low temperature coefficient ensures stability. RoHS compliant for environmental safety. Explore Microchip Digital Potentiometers on EnvMart for reliable components suited to advanced electronic design and manufacturing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a nominal resistance value of 10 kΩ.
It features 64 programmable resistance positions.
The MCP4021-103E/MS operates within a supply voltage range of 1.8V to 5.5V.
It utilizes a Serial 2-Wire interface for communication and integration with other systems.
The device is packaged in an 8-pin MSOP format measuring 3 mm by 3 mm with a height of 0.95 mm.
It operates reliably within a temperature range from -40°C to 125°C.
The temperature coefficient is 50 ppm/°C, ensuring stability with temperature changes.
Yes, it complies with RoHS standards for environmental safety.
It is designed for surface mount applications.
It is ideal for industrial, laboratory, and electronic design applications requiring precise resistance control.
This model features a single channel for resistance control.
