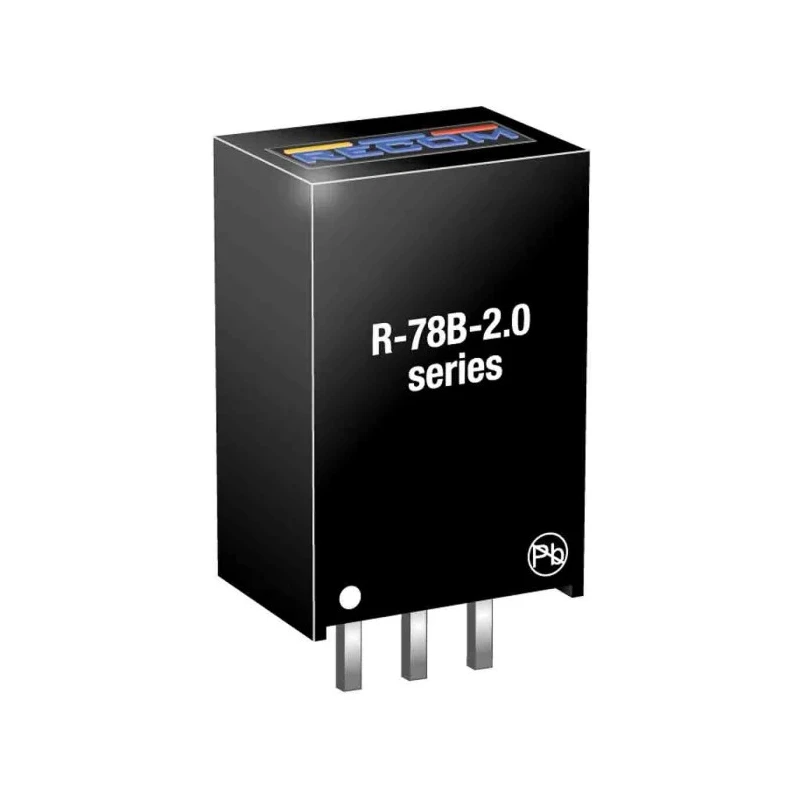

Recom Switching Regulator Through Hole 5V DC Output 32V DC 2A SIP-3 R-78B5.0-2.0
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / Switching Regulators Recom Switching Regulator, Through Hole, 5V dc |
| Brand | Recom |
| Power | 10W |
| Efficiency | 0.94% |
| Length | 11.5mm |
| Model | R-78B5.0-2.0 |
| Depth | 17.5mm |
| Gross Weight | 4g |
| Width | 8.5mm |
| Mount Type | Through Hole |
| Series | R-78B-2.0 |
| Output Current | 2A |
| Maximum Operating Temperature | 70°C |
| Package Type | SIP-3 |
| Load Regulation | ±1 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 6349000h |
| Number of outputs | 1 |
| Ripple and Noise | 75mV Pk-Pk |
| Maximum Input Voltage | 32V dc |
| Line Regulation | ±0.5 % |
| Standards/Approvals | CB Report, EN 55022, IEC/EN 62368-1 |
| Minimum Input Voltage | 6.5V |
| Number of Pins | 3 |
| Output Voltage 1 | 5V dc |
Key Features
- Compact switching regulator for PCB-mounted power applications.
- Supports input voltage from 6.5V to 32V DC and delivers a stable 5V DC output at up to 2A.
- High efficiency up to 94% reduces heat generation and eliminates the need for a heatsink.
- Three-pin SIP-3 package allows for easy through-hole mounting.
- Wide operating temperature range from -40°C to 70°C ensures reliability in harsh environments.
- Built-in short-circuit protection automatically restarts after tripping for minimal downtime.
- Ripple and noise of 75mV Pk-Pk ensures clean power suitable for sensitive electronic devices.
Product Description
The Recom R-78B5.0-2.0 is a high-efficiency, through-hole switching regulator designed for demanding PCB-mounted power supply applications. This compact regulator supports input voltages ranging from 6.5V DC to 32V DC and reliably delivers a stable 5V DC output with a maximum current of 2A. Its three-pin SIP-3 package allows for straightforward through-hole installation on printed circuit boards.
Efficiency is a standout feature, with rates up to 94%, ensuring minimal energy loss as heat and eliminating the need for external heatsinks. The regulator’s narrow footprint - just 11.5mm in length, 17.5mm in height, and 8.5mm in width - makes it ideal for space-constrained designs in consumer electronics, industrial controls, and embedded systems.
Designed to operate reliably in a wide temperature range from -40°C to 70°C, the R-78B5.0-2.0 is suitable for applications exposed to harsh environmental conditions. Its built-in short-circuit protection ensures system safety by automatically restarting the regulator after tripping, minimizing downtime and risk.
Electrical noise is kept low, with a ripple and noise specification of 75mV Pk-Pk, making this regulator suitable for sensitive electronics and radio communication devices. Line regulation of ±0.5% maintains consistent output voltages, while load regulation of ±1% supports stable operation under varying load conditions.
This model achieves a Mean Time Between Failure (MTBF) of over 6.3 million hours, offering robust reliability. Certification standards include CB Report, EN 55022, and IEC/EN 62368-1. The R-78B-2.0 series is well suited to remote controls, lighting systems, vehicle dashboards, and numerous other low-voltage electronics applications.
Use cases include industrial automation, laboratory instrumentation, commercial consumer electronics, embedded system design, lighting equipment, and mobile device charging or supply modules.
For more Recom Voltage Regulators and other electronic components, browse the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an input voltage range from 6.5V DC to 32V DC.
It delivers a maximum output current of 2A.
The efficiency of this switching regulator is up to 94%.
The ripple and noise is specified at 75mV Pk-Pk.
The dimensions are 11.5mm in length, 17.5mm in depth, and 8.5mm in width.
It operates reliably within a temperature range of -40°C to 70°C.
This model features a through-hole mounting type.
It is certified with CB Report, EN 55022, and IEC/EN 62368-1.
The line regulation is ±0.5%.
The load regulation is ±1%.
The MTBF is over 6.3 million hours.
This switching regulator has 3 output pins.
