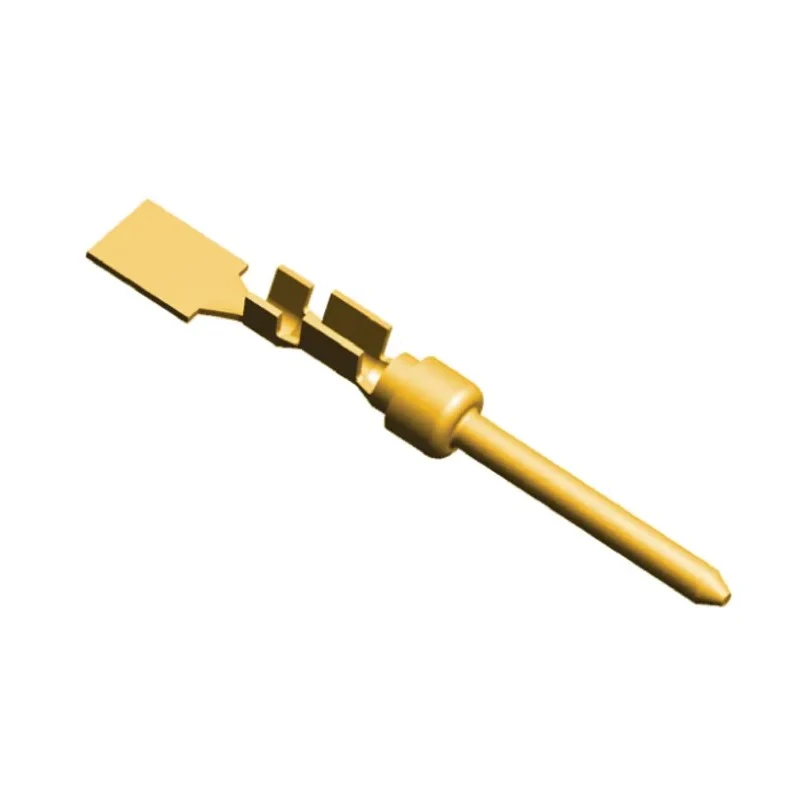

TE Connectivity AMPLIMITE HDP-20 Series Size 20 Male Crimp D-Sub Connector Contact Gold over Nickel 24 AWG 66682-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 1.2A |
| Length | 14.86mm |
| Model | 66682-2 |
| Gender | Male |
| Contact Material | Brass |
| Series | AMPLIMITE HDP-20 |
| Termination Type | Crimp |
| Contact Type | Signal |
| Contact Plating | Gold over Nickel |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 24AWG |
| Contact Size | 20 |
| Maximum Contact Resistance | 15mΩ |
| • Pin diameter | 0.04 (1.02) |
Key Features
- Contact size is 20DF designed for D-Sub connectors.
- Constructed from brass with gold over nickel plating for excellent conductivity and corrosion resistance.
- Current rating is 1.2 amperes suitable for low power signal connections.
- Crimp termination supports 24 AWG wires for precise, secure connections.
- Maximum contact resistance is 15 milliohms ensuring reliable signal quality.
- Compatible with dedicated crimp and insertion/extraction tools for efficient installation.
- Designed for male gender contact applications in industrial and electronic equipment.
Product Description
TE Connectivity 66682-2 AMPLIMITE HDP-20 Series Size 20 Male Crimp D-Sub Connector Contact is engineered for reliable signal transmission in electronic and industrial applications. The contact features a 20DF size with a pin diameter of 1.02 mm, constructed of brass material with gold over nickel plating to ensure durability and optimal electrical conductivity. Rated for currents up to 1.2A, this crimp-type contact supports 24 AWG wire sizes and is designed for crimp termination, facilitating secure and precise connections.
With a contact length of 14.86 mm and a maximum contact resistance of 15 milliohms, it provides consistent electrical performance essential for demanding environments. Specifically manufactured for the AMPLIMITE HDP-20 connector series, these contacts support male gender signal types and are widely used in communication, computing, and industrial electronics setups.
Installation is streamlined via compatible crimp tools (model 446-816) and insertion/extraction tools (model 446-822), enhancing productivity and ensuring proper contact placement. The series does not have formal standards or approvals but meets industry expectations for electronic component quality.
Applications include industrial controls, instrumentation, data acquisition, and other environments requiring robust, long-lasting D-Sub Connector Contacts. The gold plating over nickel provides excellent resistance against corrosion and wear, extending the product’s lifecycle.
Contact size is 20DF designed for D-Sub connectors. Constructed from brass with gold over nickel plating for excellent conductivity and corrosion resistance. Current rating is 1.2 amperes suitable for low power signal connections.
Crimp termination supports 24 AWG wires for precise, secure connections. Length of the contact is 14.86 mm for compatibility with standard AMPLIMITE HDP-20 connectors. Maximum contact resistance is 15 milliohms ensuring reliable signal quality.
Compatible with dedicated crimp and insertion/extraction tools for efficient installation. Designed for male gender contact applications in industrial and electronic equipment. Explore TE Connectivity connectors and related components on EnvMart for quality assured electronic hardware solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this connector contact is 1.2 amperes, suitable for low power signal connections.
This crimp contact supports wire sizes from 24 AWG to 28 AWG, with a maximum wire size of 0.2 mm².
The maximum contact resistance for this model is 15 milliohms, ensuring reliable signal quality.
The contact length is 14.86 mm, designed for compatibility with standard AMPLIMITE HDP-20 connectors.
This connector contact is constructed from brass and features gold over nickel plating for enhanced conductivity and corrosion resistance.
It is compatible with dedicated crimp tools (model 446-816) and insertion/extraction tools (model 446-822) for efficient installation.
This connector contact utilizes a crimp termination type, facilitating secure and precise connections.
The pin diameter of this contact is 1.02 mm (0.04 inches).
This connector contact is designed for male gender applications.
The connector contact is manufactured in India.
This contact belongs to the AMPLIMITE HDP-20 series.
This connector contact is used in applications such as industrial controls, instrumentation, and data acquisition.
