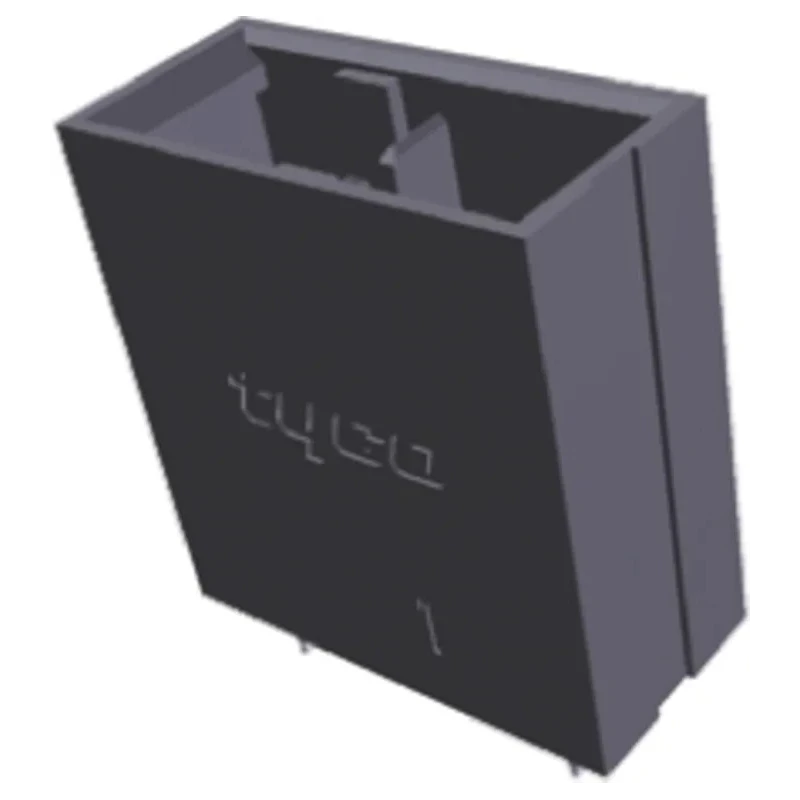

TE Connectivity Dynamic 4000 Series Straight Through Hole PCB Header 3 Contacts 6.35 mm Pitch 1 Row Shrouded 1-1747277-3
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 23A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | Dynamic 4000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 6.35mm |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Rated for a maximum current of 23 amperes.
- Provides a voltage rating up to 600 volts.
- Constructed with glass-filled polyester housing for durability.
- Contact material utilizes copper alloy with gold plating for reliable conductivity.
- Designed for through-hole mount type with solder termination.
- Operates reliably between -55°C and 105°C temperature range.
- Features a straight orientation with male contact gender configuration.
- Incorporates keying system to prevent mis-mating during connection.
Product Description
TE Connectivity 1-1747277-3 Dynamic 4000 Series Straight Through Hole PCB Header features a robust 3-contact design with a 6.35 mm pitch and single row configuration. This shrouded header is engineered for secure and precise wire-to-board connections, providing reliable electrical performance in various electronic applications.
Its housing is made from glass-filled polyester, ensuring mechanical strength and stability, while the contacts are crafted from copper alloy with gold plating to guarantee superior conductivity and corrosion resistance. The header is designed for through-hole mounting with solder termination for durable PCB attachment.
The header supports a high current of 23 amperes and can operate up to 600 volts, making it suitable for demanding power and signal applications. It maintains performance across a wide temperature range from -55°C to 105°C, enabling use in industrial, commercial, and laboratory environments.
The integrated keying system prevents incorrect mating, enhancing system reliability and reducing the risk of damage. Recommended PCB thickness for installation ranges from 1.6 mm to 2.4 mm. This product is manufactured in China to meet international quality standards.
Rated for a maximum current of 23 amperes. Voltage rating up to 600 volts for versatile usage. Durable glass-filled polyester housing. Copper alloy contacts with gold plating. Straight orientation, male contact gender. Designed for through-hole mounting with solder termination.
Wide operating temperature range from -55°C to 105°C. Shrouded with keying system to prevent mis-mating. Suitable for wire-to-board connector applications.
This PCB header is ideal for use in electronics manufacturing, testing equipment, industrial machinery, and other electrical systems requiring reliable power and signal connections. Explore a wide range of electronic components and connectors on EnvMart to complement this product for your project requirements.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this PCB header is 23 amperes.
This connector has a voltage rating of up to 600 volts.
The housing is constructed from glass-filled polyester, which provides mechanical strength and stability.
This model is designed for through-hole mounting with solder termination.
It operates reliably within a temperature range of -55°C to 105°C.
This PCB header features 3 contacts.
The pitch of this PCB header is 6.35 mm.
The contacts are made from copper alloy and are plated with gold for reliable conductivity.
Yes, it incorporates a keying system to prevent mis-mating during connection.
The contact gender configuration of this model is male.
This product is manufactured in China.
This PCB header is suitable for wire-to-board connector applications in electronics manufacturing, testing equipment, and industrial machinery.
