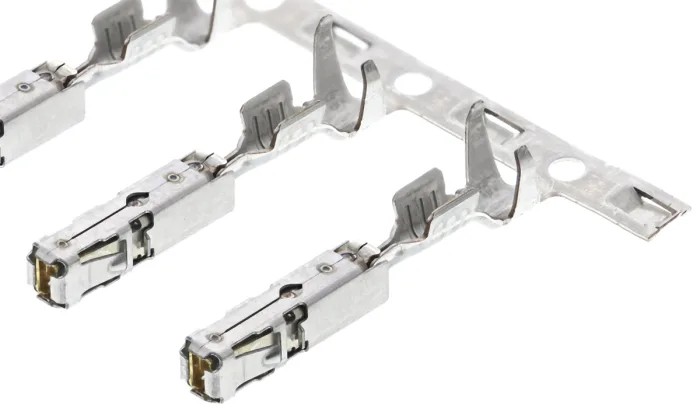

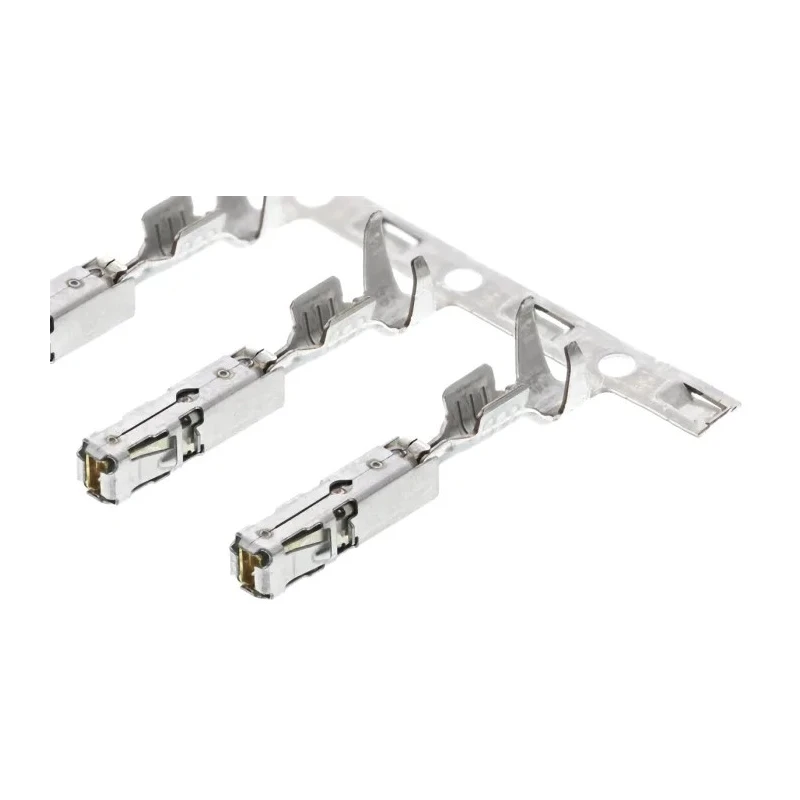

TE Connectivity AMP MCP 1.5K Series Female Crimp Terminal, 12A Current, 17 AWG to 20 AWG Wire Size, Gold Plating 1241380-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 12A |
| Length | 19.8mm |
| Gender | Female |
| Contact Material | Copper Nickel Silicon |
| Series | AMP MCP 1.5K |
| Termination Type | Crimp |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| For Use With | AMP MCP 1.5K Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1mm² |
| Minimum Wire Size AWG | 17AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 2mΩ |
Key Features
- The terminal supports AMP MCP 1.5K Connector Housing compatibility.
- Gold plating ensures superior corrosion resistance and reliable electrical contact.
- The contact material is copper nickel silicon for excellent conductivity and durability.
- Operational temperature range is from -40°C to 150°C for harsh conditions.
- The design includes a single wire sealing system (SWS) enhancing environmental protection.
- Maximum contact resistance is 2 milliohms, ensuring efficient current flow.
- The terminal offers a mating and unmating force of 6N with a mating area of 1.50 x 0.60 mm.
- It is compatible with Heavy Duty Sealed Connector Series (HDSCS) for automotive and off-road vehicle applications.
Product Description
TE Connectivity 1241380-2 Female Crimp Terminal from the AMP MCP 1.5K Series is engineered for reliable electrical connections in industrial and automotive applications. This crimp terminal supports wire sizes ranging from 17 AWG (0.5 mm²) to 20 AWG (1 mm²) and carries a current rating up to 12 amps safely. The contact is plated with gold for corrosion resistance and excellent conductivity, with a copper nickel silicon base ensuring durability.
The terminal features a single wire sealing system (SWS) that provides environmental protection for usage in harsh environments. It withstands operating temperatures from -40°C to 150°C, making it suitable for demanding industrial, automotive, and off-road vehicle applications.
These MCP 1.5K receptacle timer contacts have a 6 Newton mating and unmating force and a mating area measuring 1.50 x 0.60 mm, ensuring secure and stable connections. The terminal length is 19.8 mm to fit standard AMP MCP 1.5K connector housings.
This terminal is also compatible with the Heavy Duty Sealed Connector Series (HDSCS), which provides IP67 protection against dust and water ingress. This makes it highly suitable for commercial and off-road vehicles requiring rugged and reliable connections under vibration and harsh operating conditions.
The terminal supports AMP MCP 1.5K Connector Housing compatibility. Gold plating ensures superior corrosion resistance and reliable electrical contact. The contact material is copper nickel silicon for excellent conductivity and durability.
Operational temperature range is from -40°C to 150°C for harsh conditions. The design includes a single wire sealing system (SWS) enhancing environmental protection. Maximum contact resistance is 2 milliohms, ensuring efficient current flow.
The terminal offers a mating and unmating force of 6N with a mating area of 1.50 x 0.60 mm. It is compatible with Heavy Duty Sealed Connector Series (HDSCS) for automotive and off-road vehicle applications. The robust thermoplastic housings provide IP67 protection for dust and water resistance.
Length of the terminal is precisely 19.8 mm for consistent assembly.
This TE Connectivity product is ideal for electronics, industrial automation, automotive wiring harnesses, and other applications requiring reliable Crimp Contacts with environmental sealing. Browse more in the EnvMart electronics connectors category for related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this crimp terminal is 12A.
This terminal supports wire sizes ranging from 17 AWG (0.5 mm²) to 20 AWG (1 mm²).
It operates within a temperature range of -40°C to 150°C.
The contact material is copper nickel silicon, which provides excellent conductivity and durability.
The length of this terminal is 19.8 mm.
It features a single wire sealing system (SWS) that enhances environmental protection.
The maximum contact resistance is 2 milliohms, ensuring efficient current flow.
This terminal is compatible with AMP MCP 1.5K Connector Housing.
It requires a mating and unmating force of 6N.
Yes, it is compatible with the Heavy Duty Sealed Connector Series (HDSCS), making it suitable for automotive and off-road vehicle applications.
The contacts are plated with gold for superior corrosion resistance and reliable electrical contact.
The country of origin for this crimp terminal is India.
