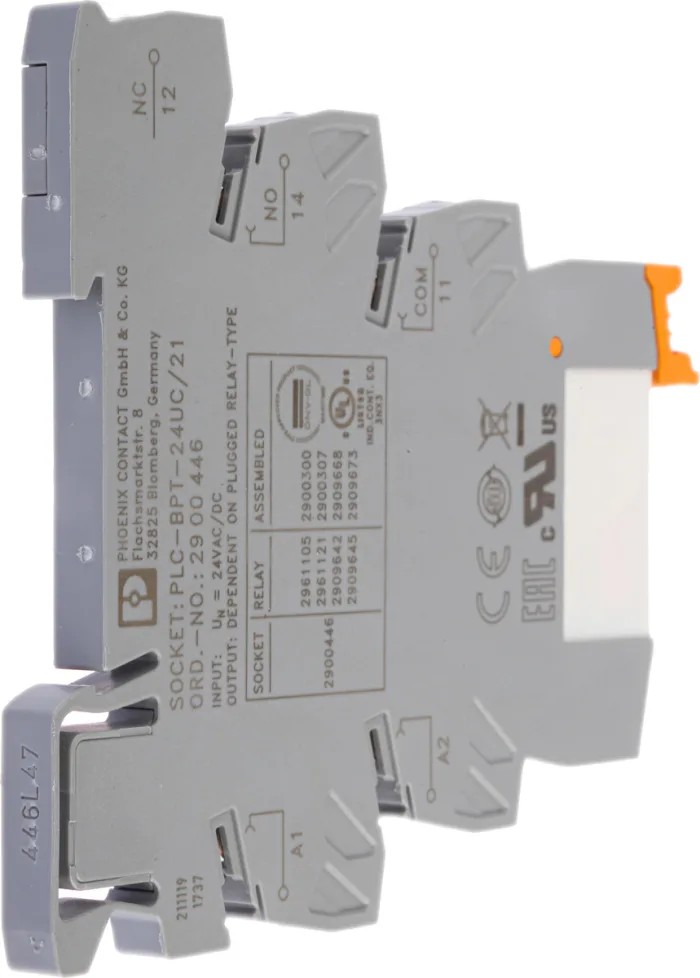

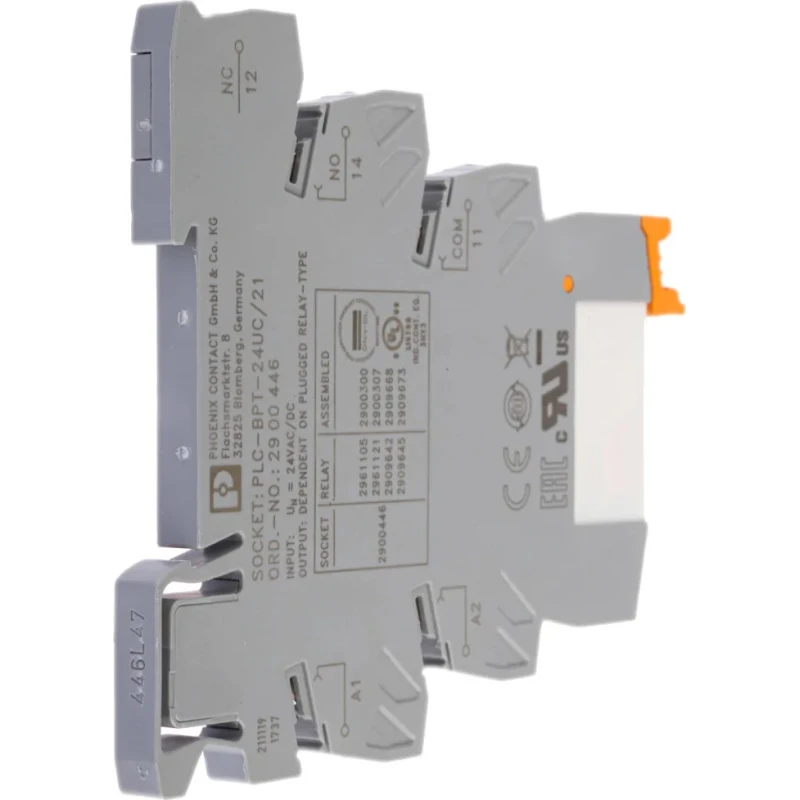

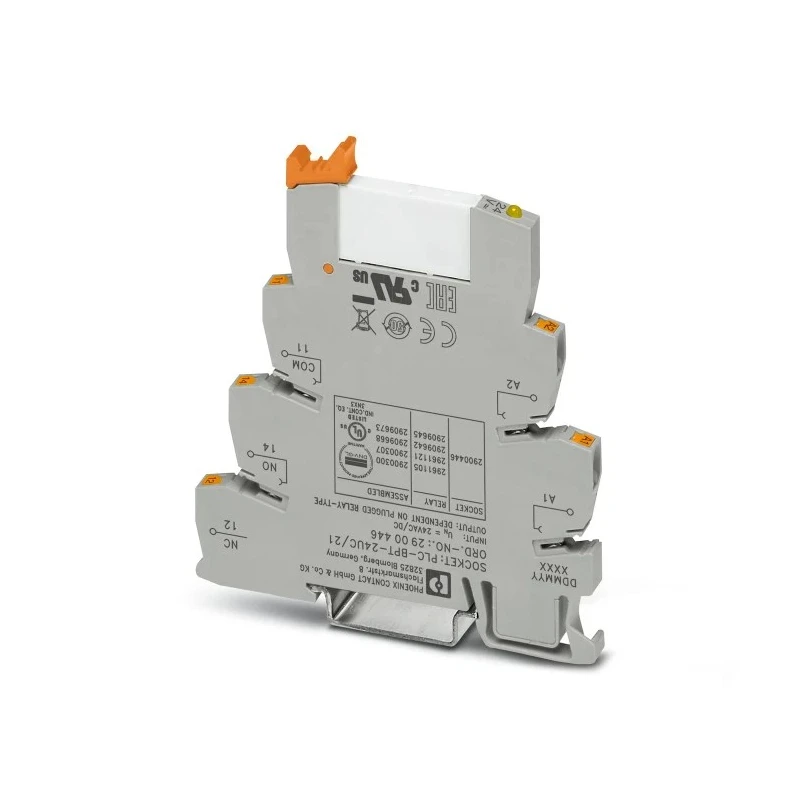

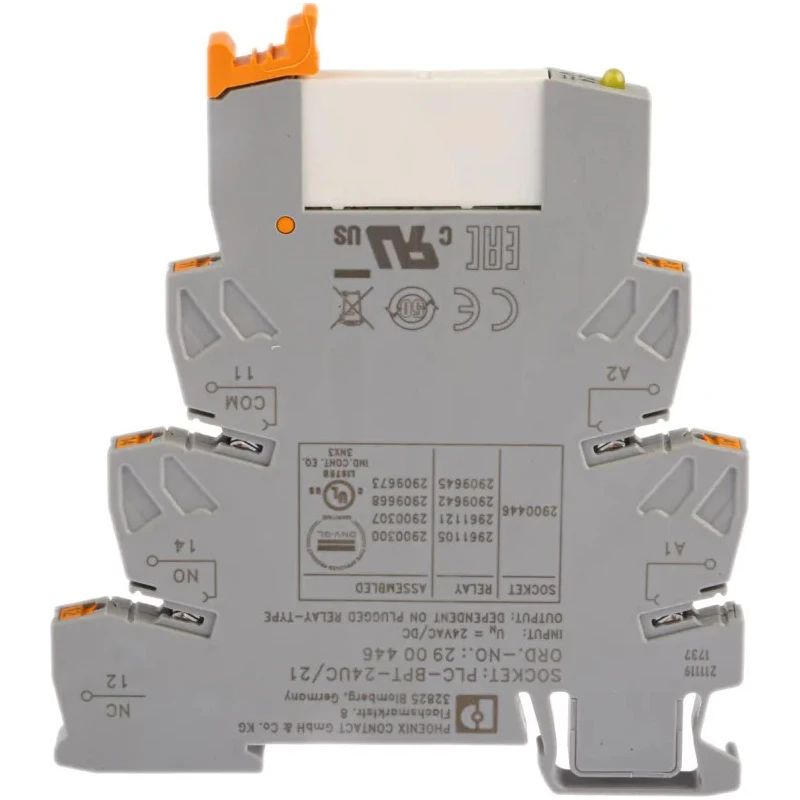

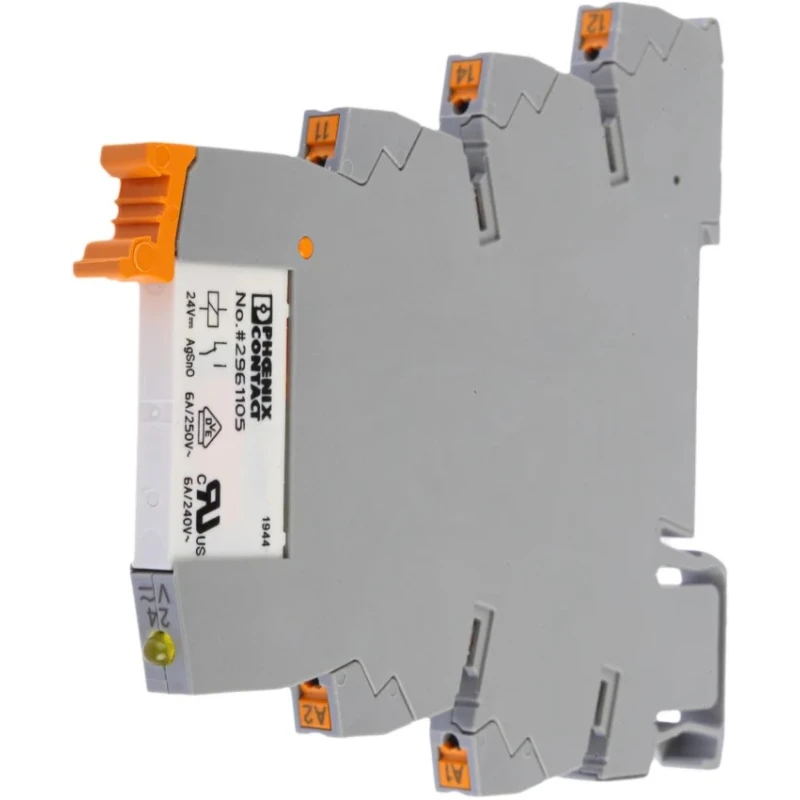

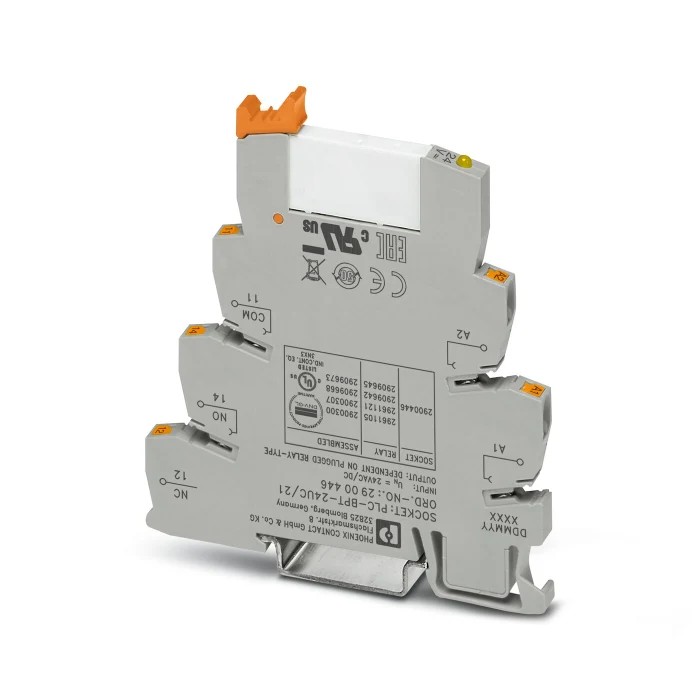

Phoenix Contact Electromechanical Interface Relay, DIN Rail Mount, 24V AC/DC Coil, SPDT Contact Configuration, 11mA 2900300

Phoenix Contact 2900300 is an electromechanical interface relay designed for DIN rail mounting in industrial automation and control systems. It features a 24V AC/DC coil voltage with a single pole double throw (SPDT) contact configuration, enabling versatile signal interfacing and switching options.

This relay acts as an electrical buffer between input and output signals, protecting sensitive electronics from voltage spikes and reducing interference. It integrates a push-in terminal block with a miniature plug-in relay, streamlining assembly and reducing installation time.

The device is compact with a width of 6.2 mm, height of 80 mm, and length of 94 mm, making it ideal for installations where rail space is limited. The coil current draw of 11 mA ensures low power consumption while maintaining reliable operation. It supports switching currents up to 10 A AC and switching voltages of 24 V AC and 24 V DC, suitable for diverse industrial applications.

Constructed with silver alloy contacts, it provides excellent conductivity and corrosion resistance, enhancing reliability and durability. The relay is rated for operation in harsh environments, with a temperature range from -40°C to 60°C, extending its suitability across a wide range of conditions.

Compliant with IEC and DIN standards, this relay meets stringent industrial safety and performance requirements. Its mechanical service life of up to 20 million cycles ensures long-term dependable operation in demanding control systems.

Typical applications include industrial automation, manufacturing equipment, process control, HVAC control systems, and electrical signal isolation. This relay offers a robust and compact solution for integrating control signals and protecting system components on DIN rail setups.

Operates with a coil voltage of 24V AC/DC ensuring wide compatibility. Features a single pole double throw (SPDT) contact design for flexible switching. Compact dimensions of 6.2mm width, 80mm height, and 94mm length for space-saving integration.

Handles switching current up to 10A AC for robust performance. Coil current is low at only 11mA, minimizing power consumption. Designed for harsh environments with an operating temperature range of -40°C to 60°C. Silver alloy contact material ensures high conductivity and corrosion resistance.

Surface mount terminal type simplifies wiring and installation. Complies with IEC and DIN standards for industrial reliability. Mechanical service life is extensive, supporting long-term industrial use. Discover more quality Interface Relays and components at EnvMart to meet your industrial and automation needs.
