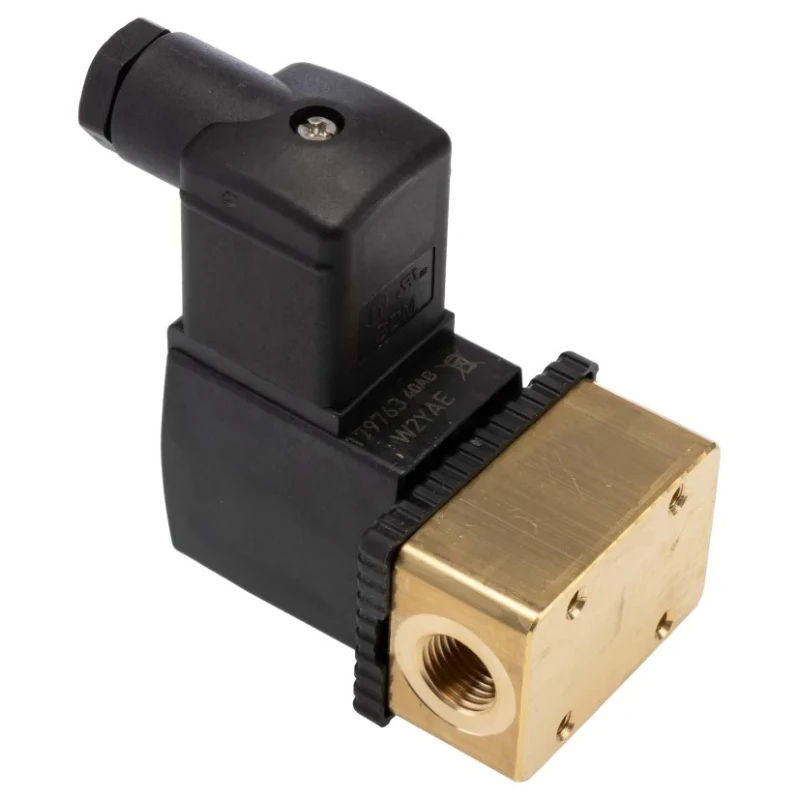

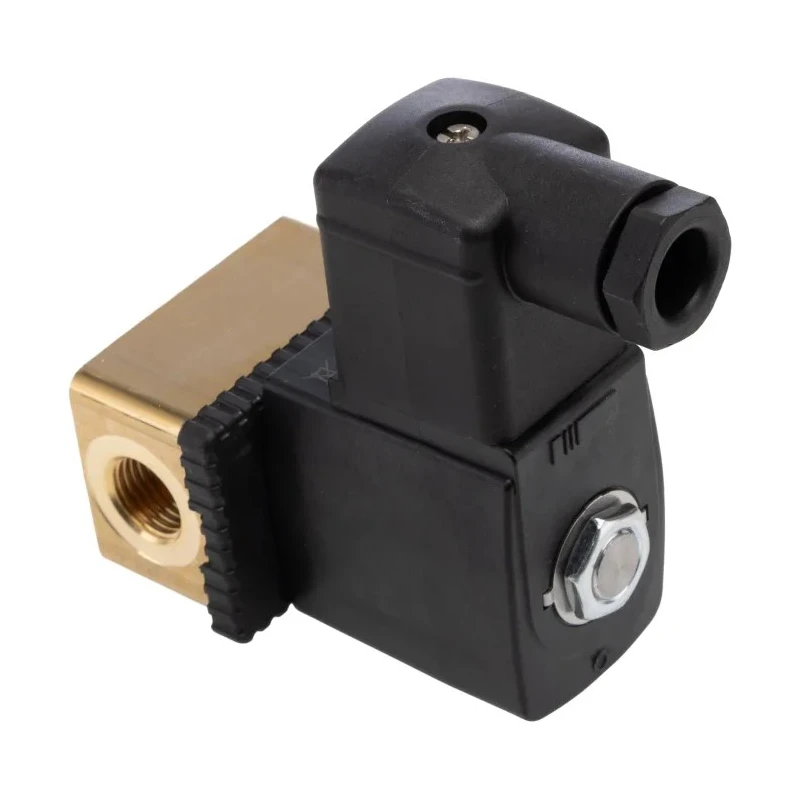

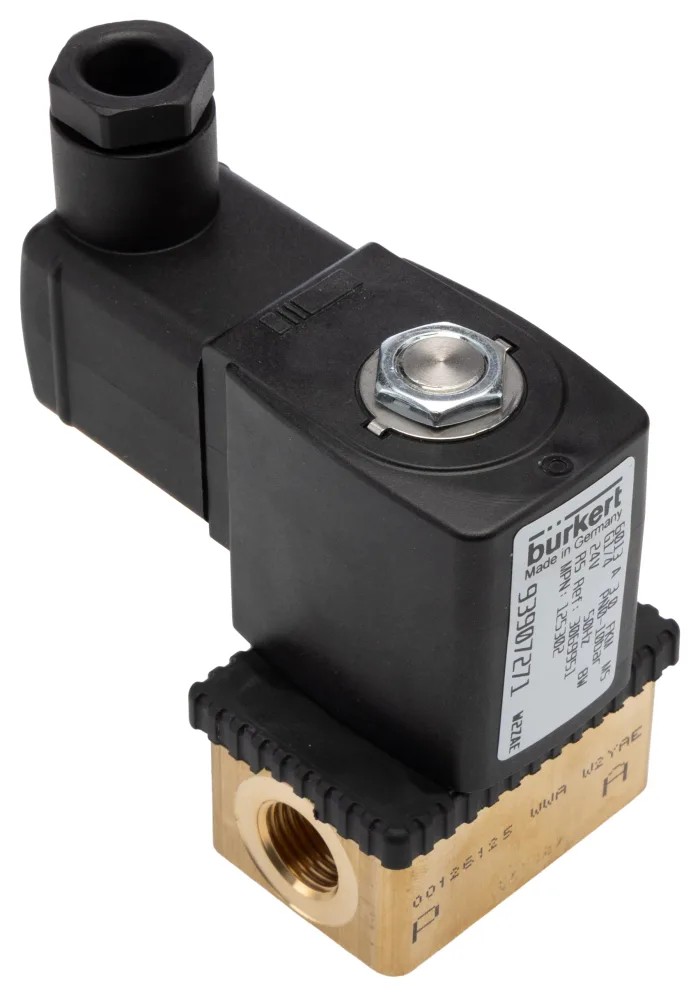

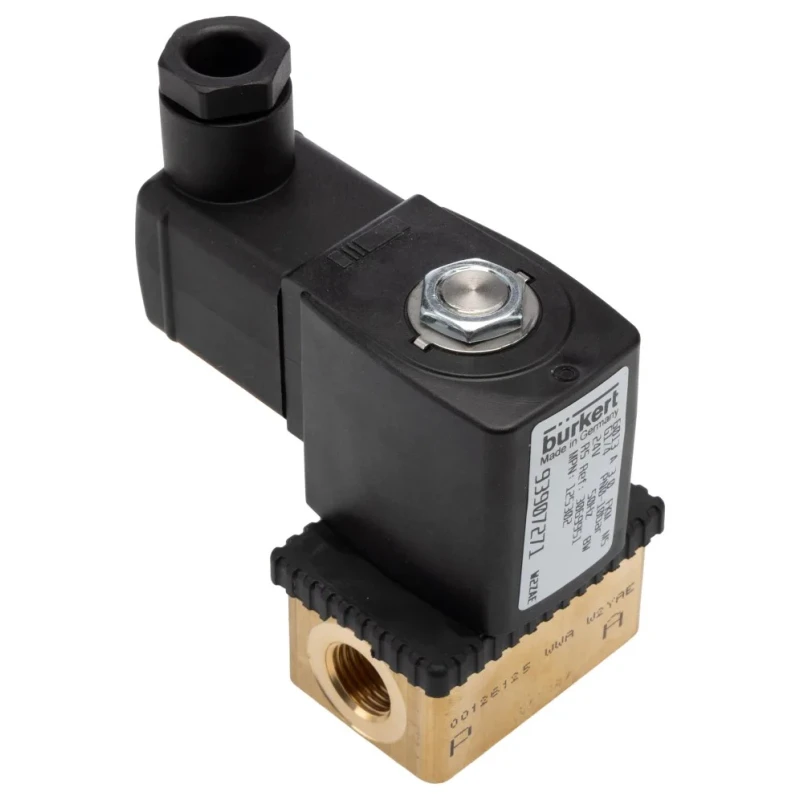

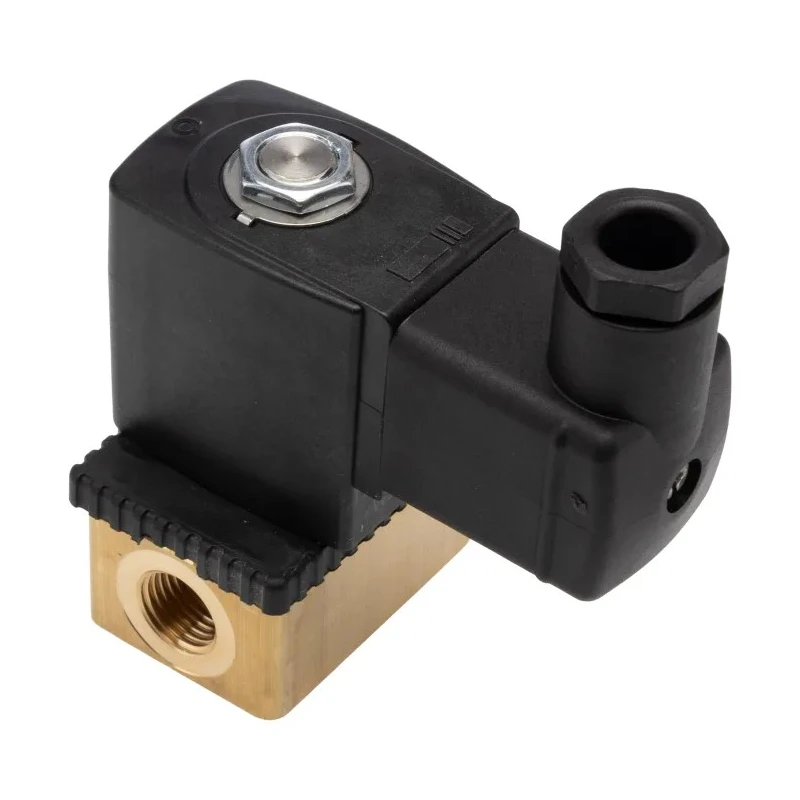

RS PRO Solenoid Valve 2 Port NC Brass Body 24V AC 6.35 mm Orifice Diameter 3mm 125302

Burkert 125302 Solenoid Valve with 2 ports in Normally Closed (NC) position offers reliable performance in fluid power and industrial automation applications. This valve features a robust brass body combined with a polyamide coil that enhances durability and chemical resistance. Designed for operation at 24V AC supply voltage, it efficiently controls liquid and neutral gas flow through a 6.35 mm female inlet and outlet ports with a 3 mm orifice diameter.

The valve operates with a maximum pressure rating of 10 bar and at temperatures ranging between -10°C and 55°C, making it suitable for pneumatic control, shut-off, dosing, filling, venting, and welding technology applications. The vibration-proof bolted coil system and an FKM seal ensure longevity and leak prevention, while the welded stopper and plunger guide tube enhance pressure resistance.

With rapid response times of 20 milliseconds to open and 30 milliseconds to close, this direct-acting compact valve achieves a flow coefficient Kv of 0.23 m³/h. The coil assembly allows a four-position locking mechanism by quarter-turn rotation or free movement between positions for installation convenience without dismantling the valve body.

This solenoid valve is widely deployed in pneumatic control systems, laboratory instrumentation, manufacturing lines, and HVAC operations where precise fluid handling is critical. The product is made in Germany and adheres to high manufacturing standards though it does not carry specific hazardous area certifications or approvals.

Durable brass body construction resistant to wear and corrosion. Vibration-proof bolted coil system for enhanced reliability. 24V AC power supply suitable for industrial environments. Rapid open and close times ensure precise flow control.

Suitable for compressed air, natural gas, water, and hydraulic fluids. Threaded female inlet and outlet ports sized at 6.35 mm. Operating temperature range from -10°C to 55°C for versatile use. Flow factor Kv of 0.23 m³/h supports moderate flow rates.

Coil replacement without removal of valve body saves maintenance time. Compact design ideal for integration in tight spaces. Explore our full selection of industrial Solenoid Valves at EnvMart for quality and performance you can trust.
