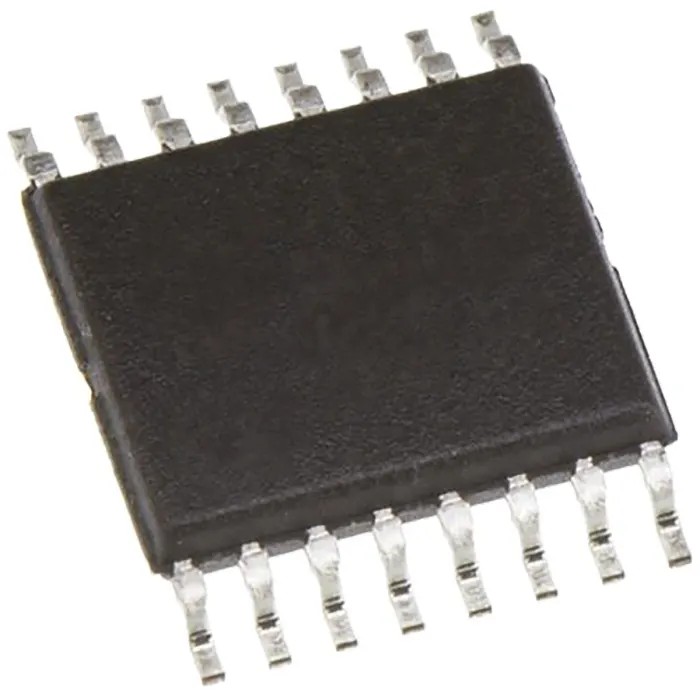

Texas Instruments 16-Bit 8-Channel Digital to Analogue Converter QSPI SPI Microwire 16-Pin TSSOP DAC8568ICPW
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 16 bit |
| Brand | Texas Instruments |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | DAC8568ICPW |
| Width | 4.5mm |
| Mount Type | Surface |
| Settling Time | 10μs |
| Output type | Analogue Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 8 |
| Interface Type | QSPI, SPI, Microwire |
| Architecture | Resistor String |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3.3V |
Key Features
- Features a resistor string DAC architecture for accurate signal conversion.
- Provides 16-bit resolution ensuring high precision analogue output.
- Supports 8 output channels suitable for multi-channel applications.
- Operates within a supply voltage range of 3.3V to 5.5V for versatility.
- Packaged in a 16-pin TSSOP surface mount for compact PCB integration.
- Interfaces include QSPI, SPI, and Microwire for flexible connectivity.
- Wide operating temperature range from -40°C to 125°C for industrial use.
- Compact dimensions of 5.1mm length, 4.5mm width, and 1.2mm height.
Product Description
Texas Instruments DAC8568ICPW is a 16-bit Digital to Analogue Converter (DAC) designed for precise and multi-channel analogue signal generation. Featuring 8 output channels, it utilizes a resistor string architecture to provide accurate and stable conversion from digital inputs via QSPI, SPI, and Microwire interfaces. This DAC supports a broad supply voltage range from 3.3V up to 5.5V, making it suitable for various electronic platforms requiring reliable analogue output signals.
Its compact 16-pin TSSOP surface-mount package measures 5.1mm in length, 4.5mm in width, and 1.2mm thickness, allowing efficient PCB space utilization in embedded and industrial applications. The device operates over a wide temperature range from -40°C to 125°C, ensuring functionality in demanding environmental conditions.
The DAC8568ICPW exhibits a fast settling time of 10 microseconds, ideal for applications requiring quick transitions and stable output levels. The output consists of analogue voltage suitable for audio, control, and instrumentation systems.
This DAC is engineered for industries such as industrial automation, instrumentation, telecommunications, and embedded systems development. It enables designers to produce multi-channel high-resolution analogue signals with industry-standard interface protocols.
Accurate 16-bit resolution with resistor string architecture. 8 independent output channels for multi-signal applications. Flexible input interfaces supporting QSPI, SPI, and Microwire standards. Surface mount 16-pin TSSOP package suitable for dense PCB layouts.
Wide supply voltage range and operating temperature for robust deployment. Fast settling time enhances performance in dynamic signal generation.
Leverage Texas Instruments DAC8568ICPW for advanced digital-to-analogue conversion in industrial, electronic research, and instrumentation setups. Browse EnvMart's electronics section for more semiconductor components and converters to complete your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a resolution of 16 bits, ensuring high precision in analogue output.
This digital to analogue converter supports 8 independent output channels, making it suitable for multi-channel applications.
It supports QSPI, SPI, and Microwire interfaces for flexible connectivity with various systems.
The DAC8568ICPW operates within a supply voltage range of 3.3V to 5.5V.
This model has a compact size with dimensions of 5.1mm in length, 4.5mm in width, and 1.2mm in height.
It has a fast settling time of 10 microseconds, which is ideal for applications requiring quick transitions.
This unit operates over a wide temperature range from -40°C to 125°C, suitable for industrial environments.
It outputs an analogue voltage, which is suitable for applications in audio, control, and instrumentation systems.
The DAC8568ICPW is packaged in a 16-pin TSSOP surface mount format, allowing for compact PCB integration.
It uses a resistor string architecture for accurate and stable conversion from digital inputs.
This digital to analogue converter is engineered for use in industrial automation, instrumentation, telecommunications, and embedded systems development.
With its 8 independent output channels, this model is designed to generate multiple high-resolution analogue signals simultaneously.
