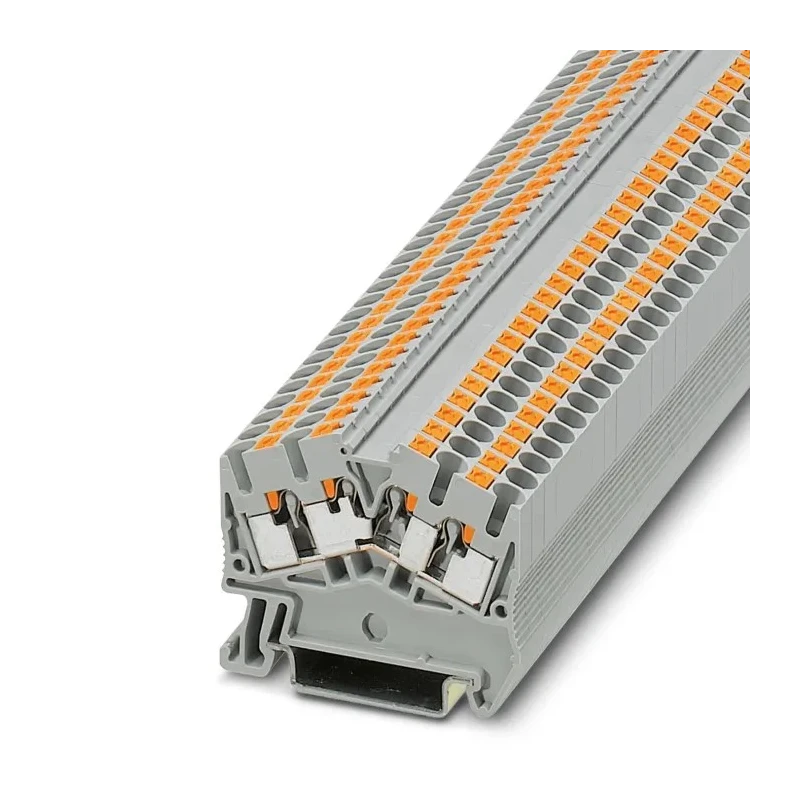

Phoenix Contact Feed Through Terminal Block PTS 2.5-QUATTRO Series, Grey, 0.14mm² to 4 mm², 1-Level, Push-in, 24A 3211993

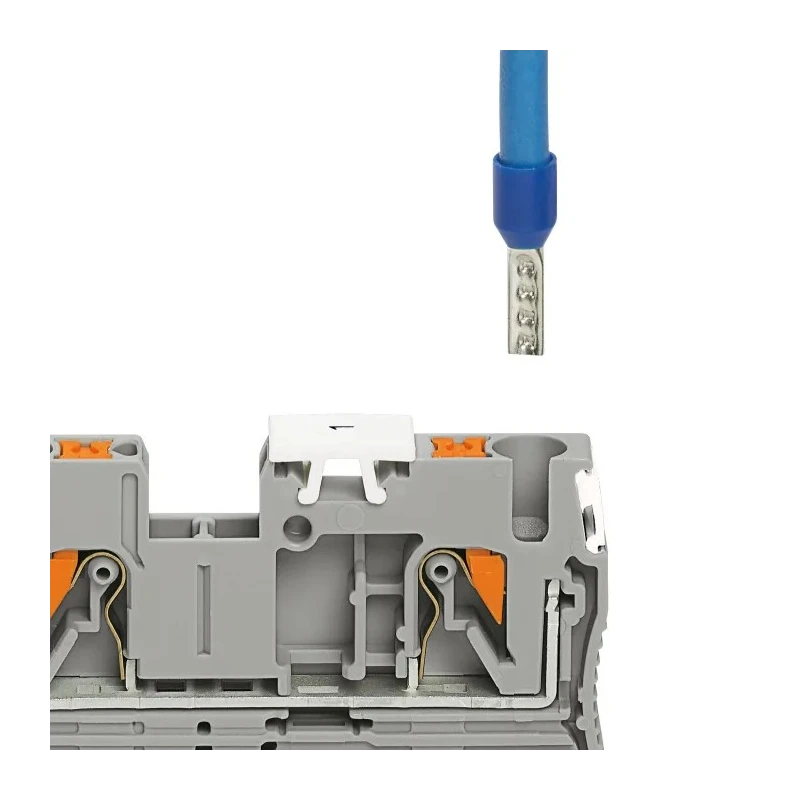

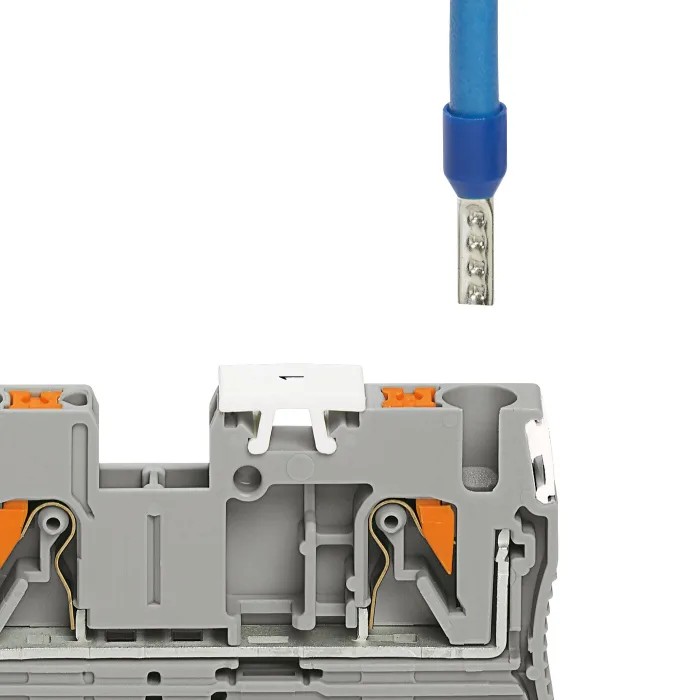

Phoenix Contact 3211993 feed through terminal block from the PTS 2.5-QUATTRO series is designed for secure multi-wire connections on DIN rails in industrial electrical installations. It allows easy connection of wires ranging from 0.14 mm² to 4 mm² cross-section with push-in termination technology, which simplifies wiring and reduces installation time.

This single-level terminal block supports a maximum current of 24A and a rated voltage of 800V, making it suitable for high-power applications. The grey polyamide housing ensures excellent insulation and mechanical shock resistance, maintaining safety and reliability under demanding industrial conditions.

The terminal block operates reliably within a wide temperature range of -60°C to 105°C, supporting harsh environmental applications. Its UL94 V-0 rated flammability class helps prevent fire spread, enhancing operational safety.

It is certified for use in hazardous areas according to ATEX and IECEx standards, making it ideal for explosive atmospheres in industrial automation, manufacturing, and processing plants.

Compact dimensions (49 mm length, 50.5 mm height, 5.2 mm width) allow efficient use of panel space. The minimal power dissipation of 0.77 Watts contributes to sustainable energy usage in control cabinets.

The product complies with certifications including CCC, CSA, and UL standards, assuring compliance with international quality norms.

This feed through terminal block is widely used in electrical distribution, control systems, and automation in industries such as manufacturing, HVAC, power generation, water treatment, and more.

The terminal block supports 1 connection level for compact design. Push-in termination allows easy and secure cable fixing without tools. Wide operating temperature range from -60°C to 105°C suits harsh conditions. ATEX and IECEx certification ensures safety in hazardous explosive environments.

Grey polyamide housing provides excellent insulation and mechanical shock resistance. Compact dimensions of 49 x 50.5 x 5.2 mm optimize panel space. Flammability rated UL94 V-0 enhances fire safety performance. Energy efficient with minimal power dissipation of 0.77W during operation.

Certified to international standards CCC, CSA, and UL for quality assurance. Explore our wide range of industrial electrical components and DIN Rail Terminal Blocks at EnvMart for reliable solutions and enhanced system performance.
