SMC 100 mm Pneumatic Piston Rod Cylinder Double Acting Both Ends Tapped Air Cushion Aluminium Alloy CD85

SMC CD85N16-100C-B Pneumatic Piston Rod Cylinder from the CD85 series is a high-performance, double acting pneumatic cylinder with a stroke length of 100 mm and a total length of 211 mm. Featuring a robust aluminium alloy body combined with stainless steel barrel and double-swaged anodised aluminium end caps, this cylinder ensures corrosion resistance and a long operational life.

This cylinder is designed with both ends tapped mounting, which allows flexible installation options in industrial automation, manufacturing, and mechanical machinery applications. It incorporates air cushioning for smooth piston motion and reduced impact noise. The maximum operating temperature is 60°C, making it suitable for diverse working environments.

It conforms to ISO 6432 standards and CETOP RP52P, guaranteeing mounting repeatability accuracy and standardized dimensions. The piston rod is a single rod type with a female metric-threaded end, designed to accommodate various tooling and attachments.

The CD85 series is optimized for high-speed operation, capable of piston speeds up to 1500 mm/s. A uniquely designed dust seal offers protection in dusty conditions, making this product applicable for demanding industrial environments such as pneumatic automation, packaging, material handling, and assembly line equipment.

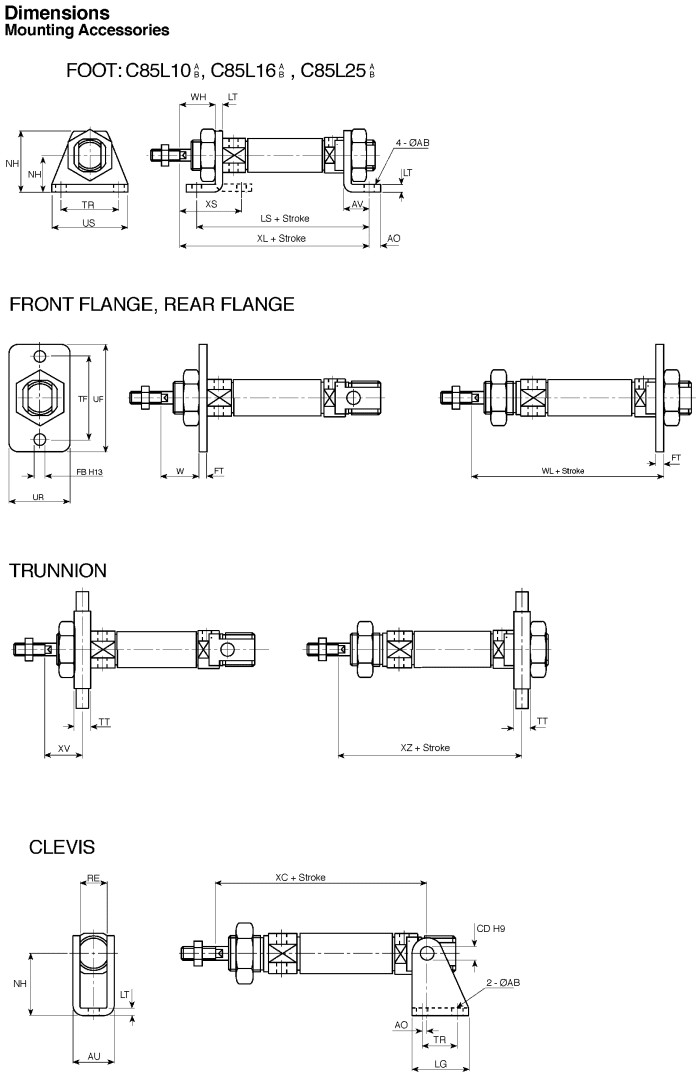

Additional features include abrasion-resistant seals and the availability of replaceable piston rod seals for maintenance convenience. The cylinder comes supplied with a piston rod locknut and nose-mounting nut, facilitating straightforward installation using large spanner flats and space-saving design.

The cylinder features both ends tapped mount type for versatile installation. Incorporates air cushioning to provide smooth operation and reduce wear. Constructed from corrosion-resistant aluminium alloy body with stainless steel barrel and piston rod.

Compliant with ISO 6432 standards ensuring consistent quality and dimensions. Offers a maximum piston speed of 1500 mm/s suitable for high-speed operations. Operates reliably up to a maximum temperature of 60°C. Includes a single rod type piston with female metric thread standard.

Designed with abrasion-resistant seals and a replaceable piston rod seal for extended service life. Ideal for pneumatic actuation in industrial tools, fluid power systems, and machine automation tasks. Available through EnvMart’s Hydraulic & Pneumatic Tools category.
