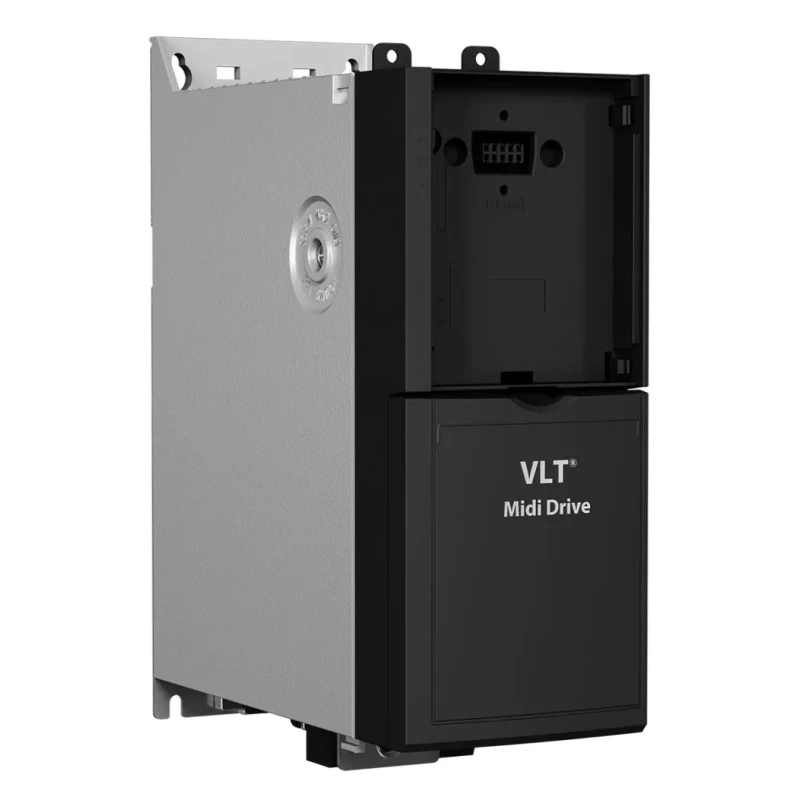

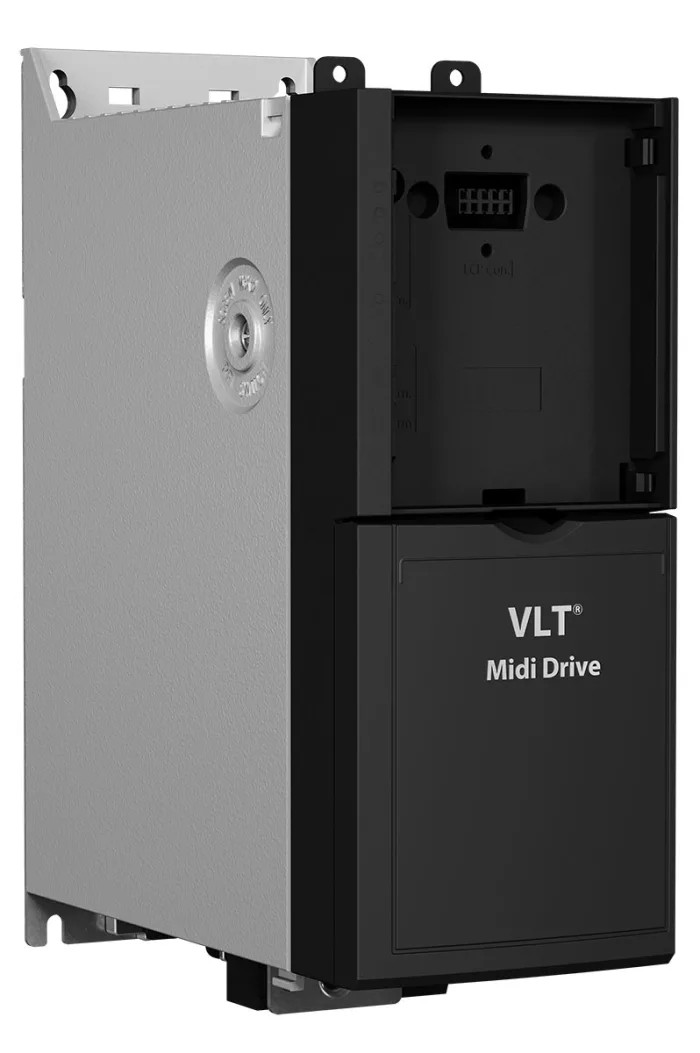

Danfoss Inverter Drive 370 W 3 Phase Variable Frequency Panel Mount FC280 1.2A 400V AC 500Hz IP20 Denmark FC280

Danfoss FC280 Inverter Drive model 134U7712 is a high-performance 370 W variable frequency drive specialized for 3-phase induction motors. It supports precise motor speed control with variable frequency output up to 500 Hz, operating on a 400 V AC supply with a maximum output current of 1.2 A. The compact panel mount design with dimensions 75 mm length, 168 mm width, and 210 mm depth makes it suitable for tight industrial installations.

Equipped with advanced features such as an integrated PID controller and dual-channel Safe Torque Off (STO) functional safety, the FC280 series ensures operational safety and flexibility. The drive supports various fieldbus communication protocols including Profibus, Profinet, Ethernet/IP, CANopen, and Modbus RTU, ensuring adaptable integration into modern industrial automation systems.

The product omits a control panel by default, with an option for an LCD control panel in two variants. Designed for energy efficiency, it is part of Danfoss Better World program aiding in reduced carbon footprint and cost savings.

Other features include pluggable connectors, integrated DC choke, RFI filter compliant with international safety and electromagnetic compatibility standards such as CE, cUL, UL, EMC, RCM, and TUV certifications, making it reliable for demanding industrial environments. It operates effectively up to 55°C ambient temperature and carries an IP20 ingress protection rating.

This inverter drive is ideal for a variety of industrial applications such as manufacturing machinery, HVAC systems, conveyor drives, and other automation equipment requiring precise and efficient motor control. With USB connectivity, it allows easy setup, parameterization, and diagnostics via PC software.

Compact design enables easy and fast panel installation. Supports induction motors with a maximum output current of 1.2 A. Operates on 400 V AC supply with output frequency up to 500 Hz. Features integrated USB port for easy PC connection and flexible fieldbus communication options.

Equipped with integrated PID controller and dual-channel STO functional safety. Includes pluggable connectors, integrated DC choke, and RFI filter for improved performance. Operating temperature range up to +55°C with IP20 protection rating.

Complies with CE, cUL, UL, EMC, RCM, and TUV standards. Designed as a Better World product, improving energy savings and operational efficiency. Manufactured in Denmark ensuring high-quality European standards.

The Danfoss FC280 series inverter drives are widely used in industrial automation, manufacturing, HVAC systems, conveyor systems, and water treatment plants. Their robust safety features, communication flexibility, and energy efficiency contribute to reliable and eco-friendly motor control solutions. Explore more Danfoss products and Inverter Drives at EnvMart for your automation needs.
