SICK Threaded Barrel Ultrasonic Proximity Sensor M30 x 1.5 6 m 200mA PNP 3V 30 V dc UM30-215112

Free Delivery in India | Lowest Global Shipping Charges

SICK Threaded Barrel Ultrasonic Proximity Sensor M30 x 1.5 6 m 200mA PNP 3V 30 V dc UM30-215112

Name: SICK Threaded Barrel Ultrasonic Proximity Sensor M30 x 1.5 6 m 200mA PNP 3V 30 V dc UM30-215112
Brand: SICK
SKU: 127104
Price: 855.62 USD
Availability: InStock



Category Ultrasonic Proximity Sensor Brand SICK Condition New

Specifications

Country of Origin	Germany
Brand	SICK
Response time	240ms
Length	105mm
Model	UM30-215112
Depth	105mm
IP Rating	IP67
Width	65mm
Housing Material	Nickel Plated Brass
Output type	PNP
Series	UM
Maximum Operating Temperature	70°C
Thread Size	M30 x 1.5
Minimum Operating Temperature	-25°C
Switching Current	200mA
Body Style	Threaded Barrel
Maximum dc Voltage	30V dc
Maximum Switching Frequency	2Hz
Standards/Approvals	CE, cULus, EAC
Maximum Supply Voltage	3V
Maximum Detection	6m

Key Features

Equipped with a threaded barrel body size M30 x 1.5 for secure mounting.
Capable of detecting objects up to 6 meters with high accuracy.
Operates with a supply voltage between 3V and 30 V dc and maximum switching current of 200mA.
Designed with nickel plated brass housing providing robust IP67 ingress protection.
Features integrated temperature compensation for reliable measurement across -25°C to 70°C.
Includes PNP output type with a maximum switching frequency of 2Hz and response time of 240ms.
Ideal for industrial automation, position detection, and contamination resistant applications.

Product Description

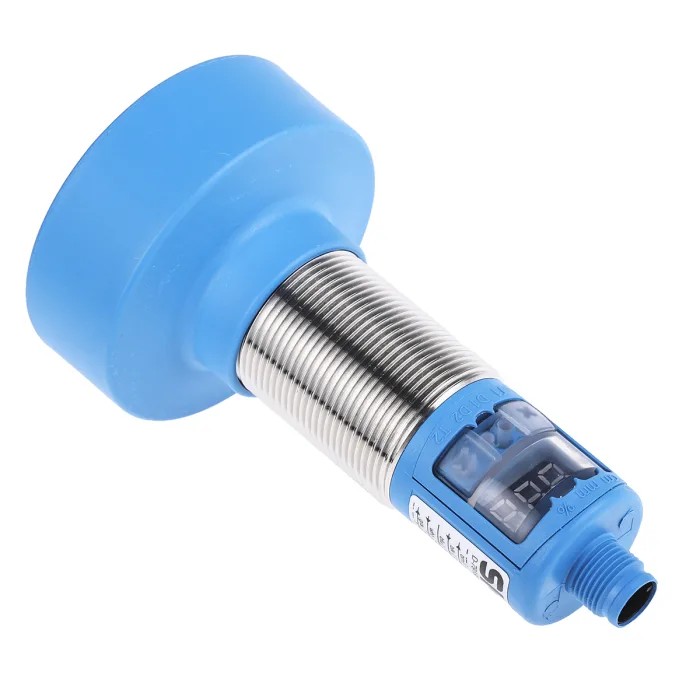

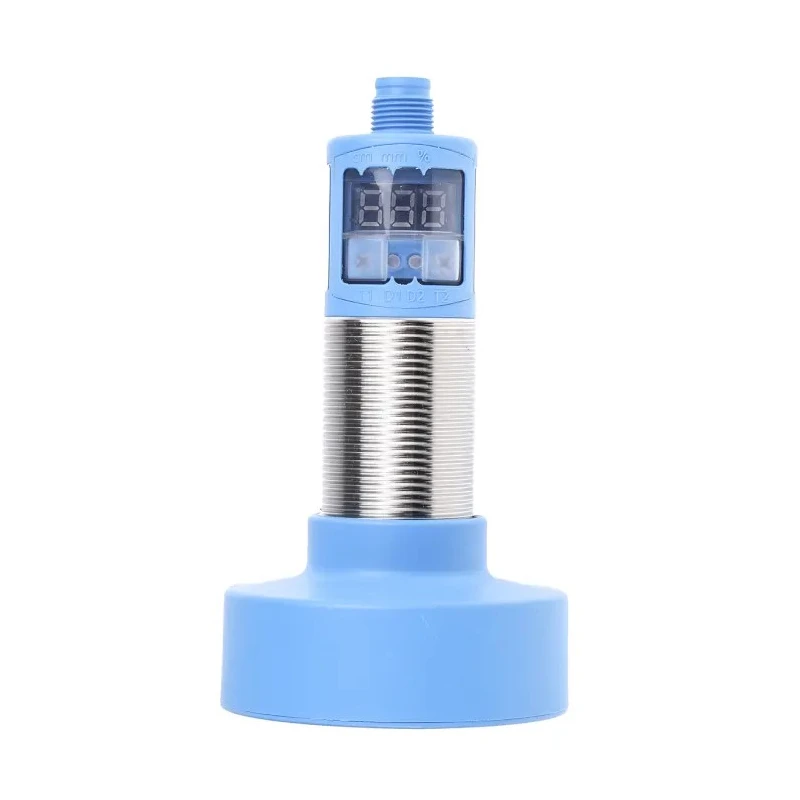

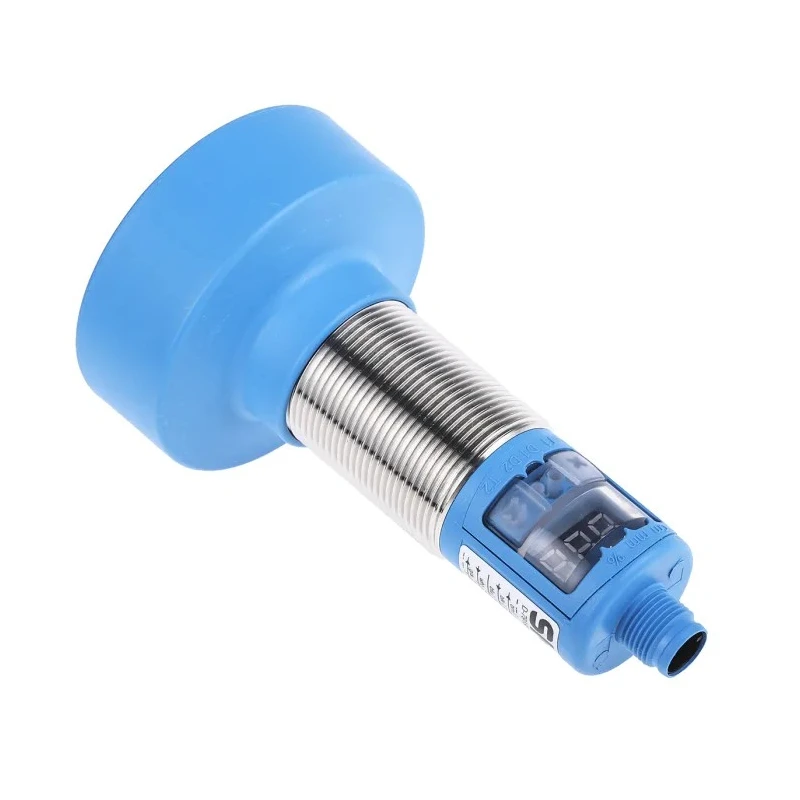

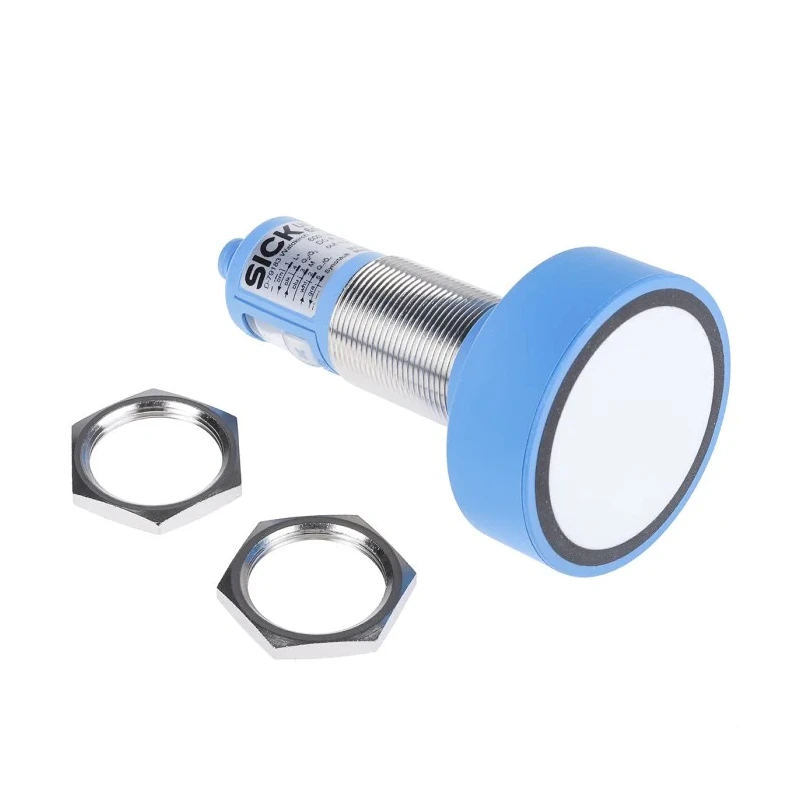

SICK UM30-215112 Threaded Barrel Ultrasonic Proximity Sensor is engineered for precise and reliable detection up to 6 meters distance. It features a rugged M30 x 1.5 nickel plated brass threaded barrel housing that ensures durability and secure installation in industrial environments.

The sensor operates with a supply voltage range from 3V to 30 V dc and a switching current up to 200mA, offering reliable PNP output switching capable of 2Hz frequency with a response time of 240ms. It provides IP67-rated protection making it resistant to dust and moisture, suitable for challenging conditions.

Integrated temperature compensation allows accurate measurements across a wide temperature range from -25°C to 70°C. The ultrasonic measuring principle guarantees detection performance unaffected by color or contamination, making it ideal for detecting solids, powders or liquids in automation, manufacturing, and process control.

This sensor supports flexible operation modes including distance to object detection, window mode, and detection of objects between sensor and background. Complementary switching outputs facilitate immediate fault detection, while synchronization and multiplex modes prevent interference in multi-sensor setups.

Threaded barrel with M30 x 1.5 dimension provides flexible, stable mounting options. Up to 6 meters maximum detection distance suitable for large area proximity sensing. Nickel plated brass housing ensures robust construction and industrial-grade durability.

PNP output type and 200mA switching current handle various control system integrations. IP67 rating protects against dust and water ingress for harsh environment use. Wide operating temperature range compensates for temperature-induced measurement variance.

Versatile operating modes tailor sensing response to specific application needs.

This sensor is widely used across industrial automation, material handling, packaging, and robotics due to its reliable operation in dusty, dirty, or foggy conditions. It is a preferred choice where optical sensors fail or require enhanced precision. Browse EnvMart for more SICK Ultrasonic Sensors and related industrial control solutions.
