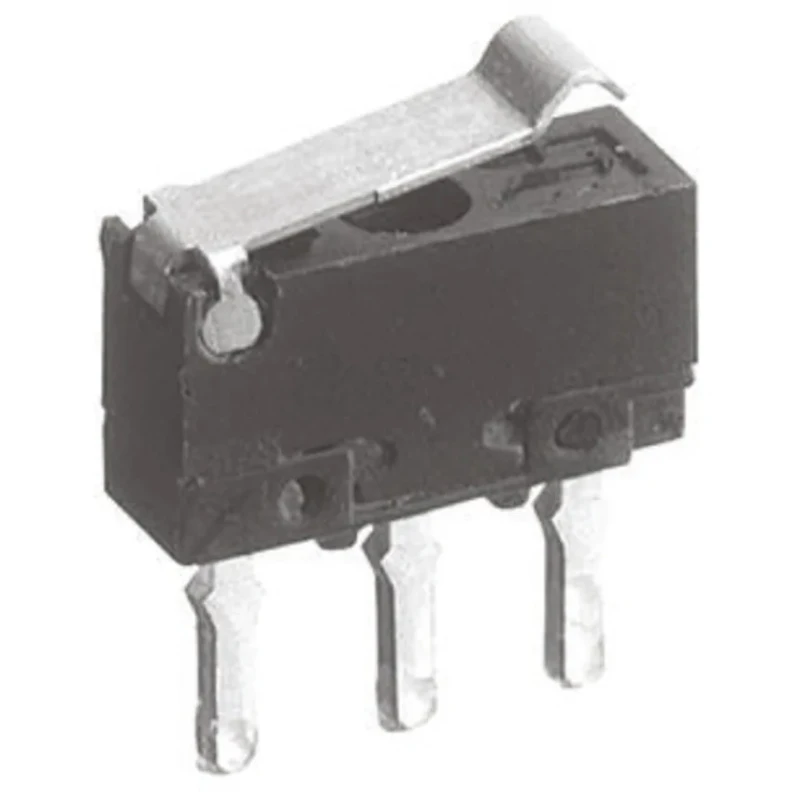

Panasonic Simulated Roller Lever Micro Switch, Right Angle PCB Terminal, 500mA, 500V AC, 30V DC, SPCO, IP40 AV4544

Panasonic AV4544 is a superminiature simulated roller lever micro switch featuring a right angle PCB terminal configuration. It supports switch contact current of 500mA with AC voltage up to 500V and DC voltage of 30V. The single-pole changeover (SPCO) contact arrangement ensures reliable switching performance with minimal operating force of 0.29N, making it suitable for sensitive electronic applications.

This micro switch is built for industrial, electronics, automation, and manufacturing uses, particularly in compact visual equipment, audio devices, and office automation where size and durability are critical.

Its snap-in latch mechanism and small dimensions (approximately 4.5 x 7.5 x 4.5 mm PCB size) enable close mounting and easy integration in dense electronic assemblies. The device features an IP40 ingress protection rating, ensuring protection against solid objects above 1mm in size.

With a wide operating temperature range from -25°C to 80°C and a mechanical life expectancy of 300,000 operations, this switch offers high reliability and durability. It is RoHS compliant, meeting environmental safety standards, and is manufactured in Japan under the AV4 series.

The micro switch operates with 500mA contact current and supports 500V AC and 30V DC ratings. Right angle PCB terminals facilitate proper PCB mounting and compact design. Low operating force of 0.29N enables sensitive actuation.

Designed for compact electronic equipment such as audio and office automation devices. Robust mechanical life rated at 300,000 operations ensures longevity. IP40 rating protects against ingress of small solid objects. Compliant with RoHS environmental standards.
