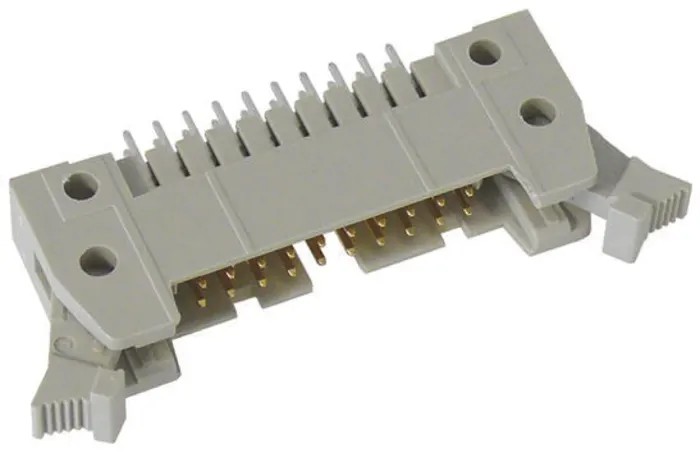

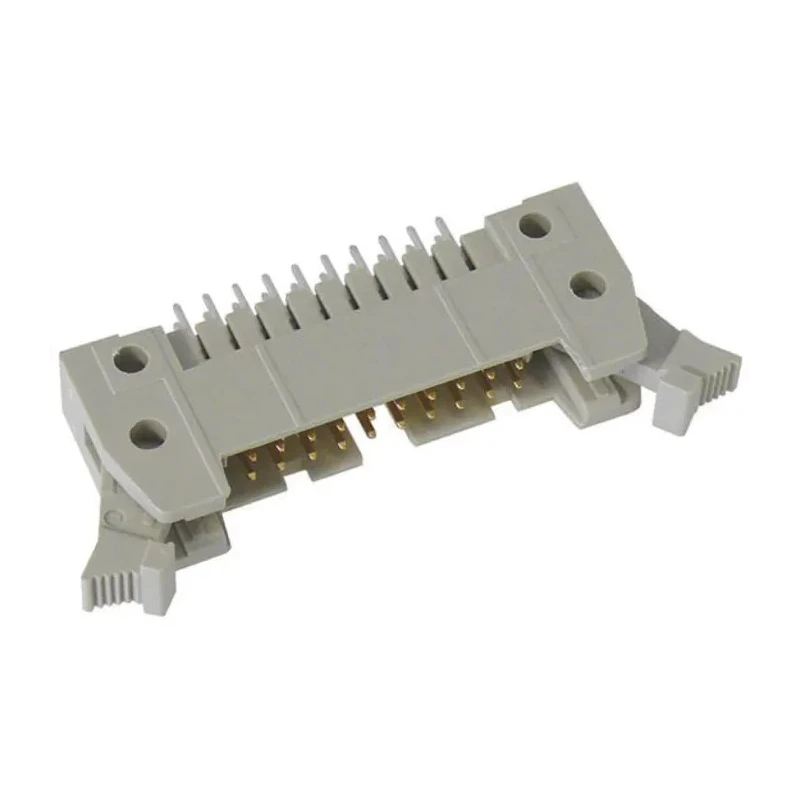

HARTING SEK 18 Series 20 Contact Shrouded Straight Through Hole PCB Header 2.54 mm Pitch 2 Row 09185206914
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Made with polybutylene terephthalate housing for durability.
- Gold-plated copper alloy contacts ensure excellent conductivity.
- Supports current rating of 1 ampere for standard applications.
- Suitable for PCB mounting with through-hole solder termination.
- Operates reliably within temperature range of -55°C to 125°C.
- Designed for industrial and electronic component assembly use.
- Compact 2.54 mm row pitch supports dense PCB layouts.
- Male contact gender with shrouded design protects contact points.
Product Description
HARTING 09185206914 SEK 18 Series Shrouded Straight Through Hole PCB Header is designed for high reliability in electronic assemblies requiring stable wire-to-board connections. This 20 contact connector features a 2.54 mm pitch spaced in two rows, enabling secure and compact PCB mounting.
The housing material is polybutylene terephthalate, providing excellent mechanical strength and thermal resistance. Contacts are manufactured from copper alloy and plated with gold to ensure superior electrical conductivity and corrosion resistance.
This PCB Header supports a current rating of 1A and withstands operating temperatures ranging from -55°C to 125°C, making it suited for various industrial, telecommunications, and instrumentation applications.
The connector's male, shrouded contact design protects against accidental damage and ensures reliable mating with complementary connectors. Through-hole mount type allows for robust soldered attachment to PCBs, suitable for automated manufacturing processes.
With a maximum voltage rating of 1kV and a 2.54 mm row pitch, the HARTING SEK 18 Series header is ideal for compact and precise electronic component designs requiring high-quality termination standards.
Made with polybutylene terephthalate housing for durability. Gold-plated copper alloy contacts ensure excellent conductivity. Supports current rating of 1 ampere for standard applications. Suitable for PCB mounting with through-hole solder termination.
Operates reliably within temperature range of -55°C to 125°C. Compact 2.54 mm pitch with 2 row configuration. Shrouded male contact for protection and secure connection. Voltage rating of 1kV supports industrial usage.
This product finds extensive use in industrial machinery, electronic manufacturing, automation systems, and communication equipment where precise and durable PCB connectors are essential.
Explore the range of electronic components at EnvMart for compatible connectors and complementary hardware.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 1 ampere for standard applications.
The maximum voltage rating of this model is 1kV, making it suitable for industrial usage.
It operates reliably within a temperature range of -55°C to 125°C.
The connector features a compact pitch size of 2.54 mm.
This PCB header has a total of 20 contacts arranged in two rows.
The housing is made from polybutylene terephthalate, and the contacts are made from copper alloy with gold plating for conductivity.
This model features a through-hole solder termination type, allowing for robust attachment to PCBs.
The contact gender of this connector is male, designed for secure connections.
Yes, the through-hole mount type is suitable for automated manufacturing processes.
This connector is suitable for use in industrial machinery, electronic manufacturing, automation systems, and communication equipment.
The country of origin for this PCB header is Switzerland.
The shrouded design of the male contacts protects against accidental damage and ensures reliable mating with complementary connectors.
