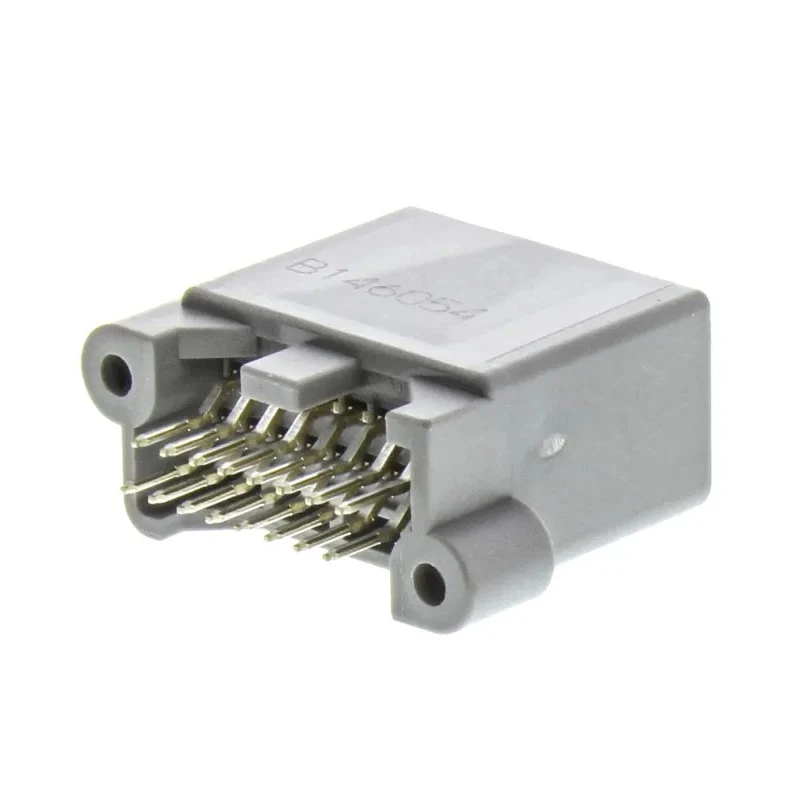

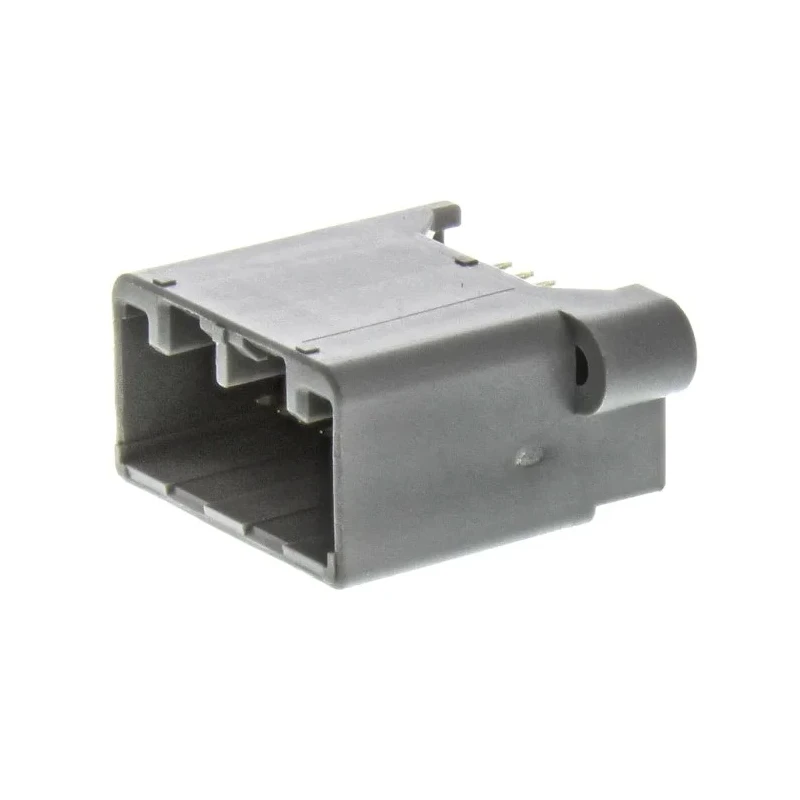

JAE MX34 Series Straight Through Hole PCB Header, 16 Contact(s), 2.2 mm Pitch, 2 Row, Shrouded MX34
Specifications
| Country of Origin | India |
|---|---|
| Brand | JAE |
| Orientation | Straight |
| Current | 3A |
| Model | MX34 |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Syndiotactic Polystyrene |
| Contact Material | Brass |
| Series | MX34 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.2mm |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Rated for a current of 3A, suitable for automotive and electronic component assembly.
- Constructed with glass filled syndiotactic polystyrene housing for durability.
- Contacts are made of brass with tin plating, terminated by soldering for secure connections.
- Operates reliably between -40°C to 85°C to suit harsh environments.
- Features a shrouded, straight orientation with a double locking mechanism for secure mating.
- Designed to reduce mating and unmating forces to 80N or less for improved usability.
- Equipped with a durable box-type pin header for enhanced resistance to external forces and twisting.
- Includes a preset-type retainer to ensure proper insertion and engagement of contacts.
Product Description
JAE MX34 Series Straight Through Hole PCB Header MX34 is a new, shrouded 2-row, 16-contact connector with a 2.2 mm pitch designed for wire-to-board applications, primarily targeted at automotive and electronic component assembly.
This connector supports a current rating of 3A and is constructed with glass filled syndiotactic polystyrene housing material ensuring robustness and resistance to environmental stress. Its brass contacts plated with tin provide reliable electrical conductivity and withstand solder termination.
The operating temperature range of -40°C to 85°C makes it suitable for demanding industrial and automotive environments. The straight orientation and shrouded design, featuring a double locking mechanism and box-type pin header, enhance connection security and durability under mechanical stress.
The MX34 series is engineered to minimize mating and unmating forces to 80N or less, improving handling and assembly efficiency in manufacturing settings. The preset-type retainer design ensures complete and secure insertion of contacts, avoiding incomplete engagements that could lead to connection failures.
Rated for a current of 3A, suitable for automotive and electronic component assembly. Constructed with glass filled syndiotactic polystyrene housing for durability. Contacts made of brass with tin plating, terminated by soldering for secure connections.
Operates reliably between -40°C to 85°C to suit harsh environments. Features a shrouded, straight orientation with a double locking mechanism for secure mating. Reduces mating force to 80N or less to improve workability.
Durable box-type pin header resists twisting and external forces. Preset-type retainer ensures fully engaged contacts.
This connector is widely used in industrial electronics, automotive manufacturing, and electronic component assembly where reliable PCB connections are critical. It supports efficient production and maintenance operations.
Explore more products in the PCB Headers category at EnvMart for compatible connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 3A, making it suitable for automotive and electronic component assembly.
The housing is made from glass filled syndiotactic polystyrene, while the contacts are made of brass with tin plating.
It operates reliably within a temperature range of -40°C to 85°C, suitable for harsh environments.
This connector features 16 contacts, arranged in a 2-row configuration.
The pitch size of the JAE MX34 Series header is 2.2 mm.
The contacts are terminated by soldering, ensuring secure connections.
The MX34 Series connector is shrouded, which enhances connection security.
It features a straight orientation, designed for ease of use in assembly.
It includes a double locking mechanism for secure mating during connections.
It is designed to reduce mating and unmating forces to 80N or less, improving usability.
This connector is designed for wire-to-board applications, making it suitable for various electronic assemblies.
The country of origin for this product is India.
