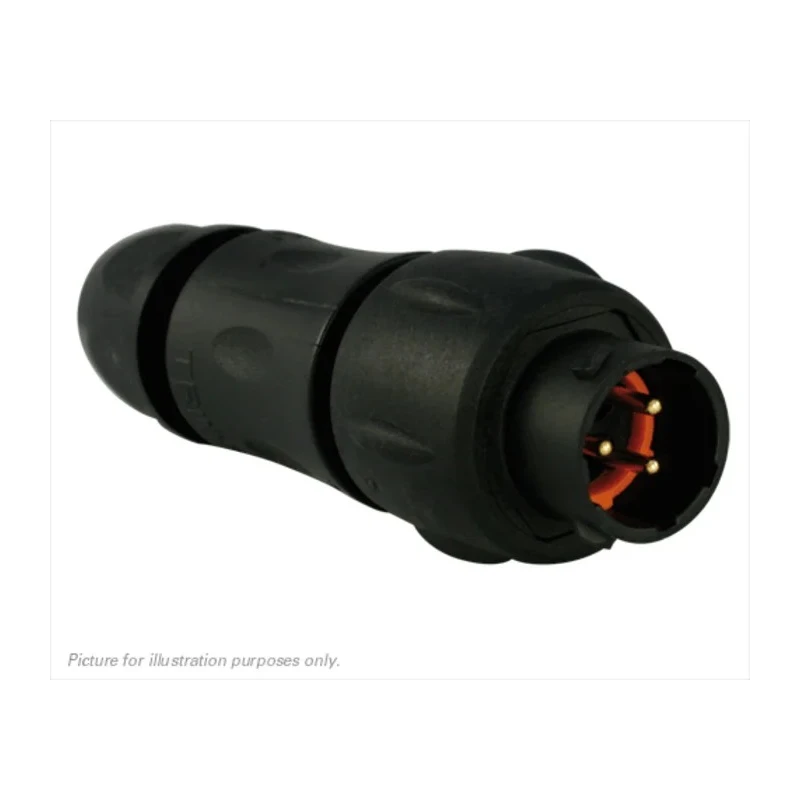

Souriau Sunbank by Eaton Circular Connector Standard Size 3 Contacts In-Line Plug Male IP68 IP69K 300V 13A UTS1JC103P
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 300V |
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 13A |
| Model | UTS1JC103P |
| IP Rating | IP68, IP69K |
| Mount Type | In-Line |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | UTS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shell Size | 10 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Plug |
| Coding | N |
| Typical applications for the UTS In-line receptacle | Renewable & Portable Energy, Factory Automation, & Control, Machine Tools/Special Machines, Robotics, Building Automation & Control, Instrumentation / Measurement, Off-Road, Lighting, Signalling, Stage Light & Sound, Civil marine etc |
Key Features
- Equipped with gold-plated copper alloy contacts to ensure reliable conductivity.
- Rated for a current capacity of 13A and voltage of 300V.
- Constructed with thermoplastic housing for durability and insulation.
- Operates reliably in temperatures ranging from -40° to 105°C.
- Features bayonet mating type with straight orientation for secure connection.
- Suitable for crimp termination and coded with 'N' for proper alignment.
- Designed for harsh environments with IP68 and IP69K ingress protection.
- Ideal for applications in renewable energy, factory automation, robotics, and marine industries.
Product Description
Souriau Sunbank by Eaton UTS1JC103P Circular Connector is a highly durable, standard-size circular connector featuring 3 male contacts arranged in an in-line plug configuration. Designed for industrial environments, this connector supports a voltage rating of 300V and a current capacity of 13A, making it suitable for robust electrical connections.
The connector's thermoplastic housing provides excellent mechanical strength and electrical insulation, while its gold-plated copper alloy contacts ensure superior conductivity and corrosion resistance. It is designed to operate under a wide temperature range from -40°C to 105°C, allowing it to withstand extreme conditions commonly encountered in industrial and outdoor applications.
This model utilizes a bayonet mating mechanism with a straight orientation that ensures quick and secure connections. The plug features a crimp termination type for reliable wire retention and an 'N' coding to prevent mismatching of connectors. Rated for IP68 and IP69K ingress protection, the connector offers resistance against dust, water, and high-pressure washdowns.
Typical applications include renewable and portable energy solutions, factory automation and control systems, machine tools, robotics, building automation, instrumentation and measurement devices, off-road vehicles, lighting, signaling, stage sound equipment, and civil marine installations.
Gold-plated copper alloy contacts provide excellent electrical reliability. Thermoplastic housing for rugged and long-lasting performance. IP68 and IP69K certified for water and dust ingress protection. Operates over a wide temperature range from -40°C to 105°C.
Crimp termination enables secure wire connection. Bayonet mating type with straight orientation for ease of use. Standard connector size suitable for industrial circular connections. Designed specifically for harsh industrial and outdoor environments.
This circular connector is manufactured in France to ensure high-quality standards and reliability. Souriau Sunbank by Eaton products are known for their performance and durability in demanding industrial applications.
Explore more Industrial Circular Connectors and related components in the Electronics & Electricals category at EnvMart to find compatible and complementary parts for your systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current capacity of 13A and a voltage of 300V.
It operates reliably in temperatures ranging from -40°C to 105°C.
This unit features a crimp termination type for secure wire connection.
It has an ingress protection rating of IP68 and IP69K, providing resistance against dust and water.
This circular connector features 3 male contacts.
The housing is constructed from thermoplastic, offering durability and insulation.
It uses a bayonet mating type with a straight orientation for secure connections.
Typical applications include renewable energy, factory automation, robotics, and marine industries.
The contacts are made of gold-plated copper alloy, ensuring reliable conductivity.
This model has a shell size of 10.
This circular connector is manufactured in France.
It is coded with 'N' to prevent mismatching of connectors.
