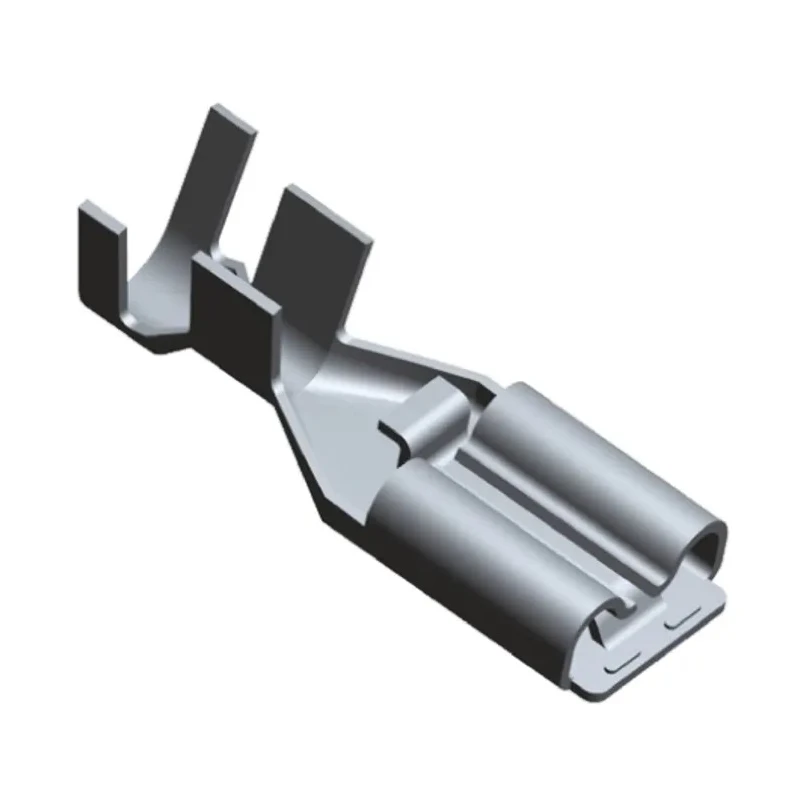

TE Connectivity Positive Lock .250 EX II Black Uninsulated Female Spade Connector Crimp 6.35 x 0.81 mm Tab Size 15 175024-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Orientation | Straight |
| Model | 175024-1 |
| Gender | Female |
| Insulation | Uninsulated |
| Overall Length | 21.2mm |
| Contact Material | Brass |
| Series | Positive Lock .250 EX II |
| Termination Type | Crimp |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1.6mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 15AWG |
| Maximum Wire Size AWG | 10AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.35 x 0.81 mm |
Key Features
- Constructed with brass contact material for durability.
- Features tin plating for corrosion resistance.
- Uninsulated design for standard electrical applications.
- Straight orientation optimizes connection layout.
- Supports wire sizes from 15 AWG to 10 AWG.
- Black color for easy identification.
- Positive Lock .250 EX II series ensuring reliable performance.
- Overall length of 21.2 mm enables compact installation.
Product Description
TE Connectivity 175024-1 Positive Lock .250 EX II Black Uninsulated Female Spade Connector is designed for secure and reliable wire connections in electronic and electrical systems. Featuring a crimp termination type, it provides a stable and high-quality contact for wire sizes ranging from 15 AWG to 10 AWG, suitable for industrial, commercial, and laboratory applications.
Manufactured using premium brass contact material and finished with tin plating, this connector ensures excellent conductivity and corrosion resistance. Its uninsulated construction allows for easy integration where insulation is not required, and the straight contact orientation facilitates effective connection alignment within assemblies.
This connector has a tab size of 6.35 x 0.81 mm, corresponding to the .250 EX II Positive Lock series, making it compatible with standardized spade/tab connectors for demanding electrical environments. With an overall length of 21.2 mm, the product is compact and suited for installation in limited-space configurations.
Key features include robust mechanical design, high reliability in industrial electrical wiring, and ease of use with crimp tools. This spade connector is applicable for power distribution, control panels, HVAC systems, manufacturing equipment wiring, and maintenance operations requiring durable and low-resistance electrical connections.
Constructed with high-quality brass contact material. Tin plating enhances conductivity and corrosion resistance. Uninsulated configuration for specific electrical layouts. Straight orientation supports diverse wiring designs.
Compatible with wire sizes from 15 AWG to 10 AWG. Black color identification for wiring standards. Compact overall length of 21.2 mm allows space-saving installation. Reliable Positive Lock .250 EX II series design. This product is categorized under Spade Connectors used in electronics components for efficient power and signal connections.
Explore more from TE Connectivity and other high-quality electronic component connectors in the Electronics & Electricals section at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports wire sizes ranging from 15 AWG to 10 AWG, corresponding to a minimum wire size of 1.6 mm² and a maximum wire size of 6 mm².
The tab size of this spade connector is 6.35 x 0.81 mm, which is compatible with the .250 EX II series.
The overall length of the connector is 21.2 mm, allowing for compact installation in limited-space configurations.
The contact material used in this connector is brass, which is finished with tin plating for enhanced conductivity and corrosion resistance.
This model features a crimp termination type, providing a stable and high-quality contact for electrical connections.
No, this connector is uninsulated, making it suitable for applications where insulation is not required.
The orientation of this connector is straight, which optimizes connection layout within assemblies.
This spade connector is applicable for power distribution, control panels, HVAC systems, manufacturing equipment wiring, and maintenance operations.
The connector is black, which aids in easy identification during wiring.
This connector is part of the Positive Lock .250 EX II series, ensuring reliable performance in demanding electrical environments.
The connector is manufactured in India.
This connector is a female spade connector, designed for secure and reliable wire connections.
