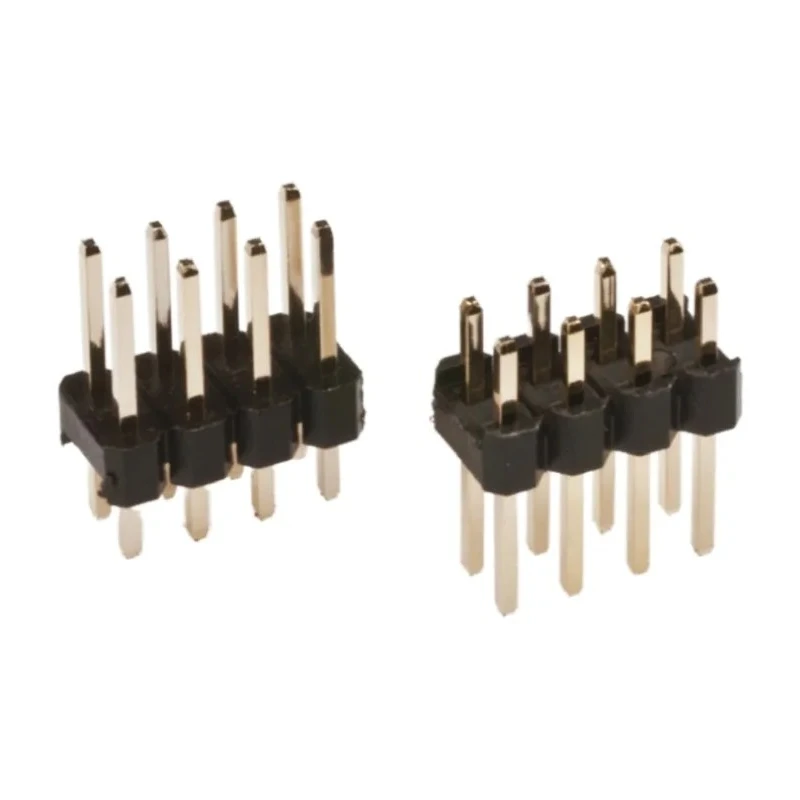

HARWIN M20 Series Straight Through Hole Pin Header, 12 Contacts, 2.54 mm Pitch, 2 Rows, Unshrouded M20-9980645

Free Delivery in India | Lowest Global Shipping Charges

HARWIN M20 Series Straight Through Hole Pin Header, 12 Contacts, 2.54 mm Pitch, 2 Rows, Unshrouded M20-9980645

Name: HARWIN M20 Series Straight Through Hole Pin Header, 12 Contacts, 2.54 mm Pitch, 2 Rows, Unshrouded M20-9980645
Brand: HARWIN
SKU: 126314
Price: 0.54 USD
Availability: InStock



Category PCB Pin Header Brand HARWIN Condition New

Specifications

Country of Origin	Taiwan
Brand	HARWIN
Orientation	Straight
Current	3A
Model	M20-9980645
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	M20
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	12
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3mm
Mating Pin Length	6.1mm

Key Features

Features a 2-row, unshrouded male pin header design.
Constructed with a durable nylon housing suitable for reflow soldering processes.
Gold-plated brass contacts provide reliable conductivity and corrosion resistance.
Supports maximum current of 3A with operating temperatures ranging from -40°C to 105°C.
Tail pin length measures 3 mm and mating pin length is 6.1 mm.
Compatible with M20 series PCB sockets, socket housings, and jumpers.
Suitable for embedded PCs, motherboards, and large electronic systems.
Widely used in consumer electronics, communications, drives and controls, industrial monitoring, and personal computing.

Product Description

HARWIN M20-9980645 Pin Header is a high-quality, straight through hole PCB connector from the M20 series, featuring 12 contacts arranged in 2 rows with a 2.54 mm pitch. Designed for board-to-board and wire-to-board connections, it offers robust performance suitable for a variety of industrial and commercial electronics applications.

The pin header’s nylon housing is thermoplastic and capable of enduring the thermal stresses of reflow soldering processes. This component’s male brass contacts are gold-plated to ensure low resistance and excellent durability, supporting operating currents up to 3A and temperatures from -40°C to 105°C, making it reliable under demanding environmental conditions.

The 3mm tail pin length and 6.1mm mating pin length options allow flexibility when designing PCB layouts. This unshrouded connector offers easy mating with corresponding M20 series sockets and housings, providing versatile configuration options and pin mating lengths to suit diverse design requirements.

These M20 series headers are widely employed in embedded computers, motherboards, and various large electronic systems. They deliver dependable connections for consumer electronics, communications equipment, industrial monitoring devices, drives and controls, and personal computing technology.

2-row, 12-contact pin header with 2.54 mm pitch. Unshrouded, straight orientation for through hole mounting. Nylon thermoplastic housing withstands reflow soldering. Gold-plated brass contacts ensure excellent conductivity.

Operational temperature range from -40°C to 105°C. Supports currents up to 3A. Compatible with M20 series sockets and jumpers.

Explore the Electronics Components category on EnvMart for more PCB connectors and header solutions from reliable brands like HARWIN, designed to meet diverse industrial and technical needs.

Explore more products in our PCB Pin Header category.
