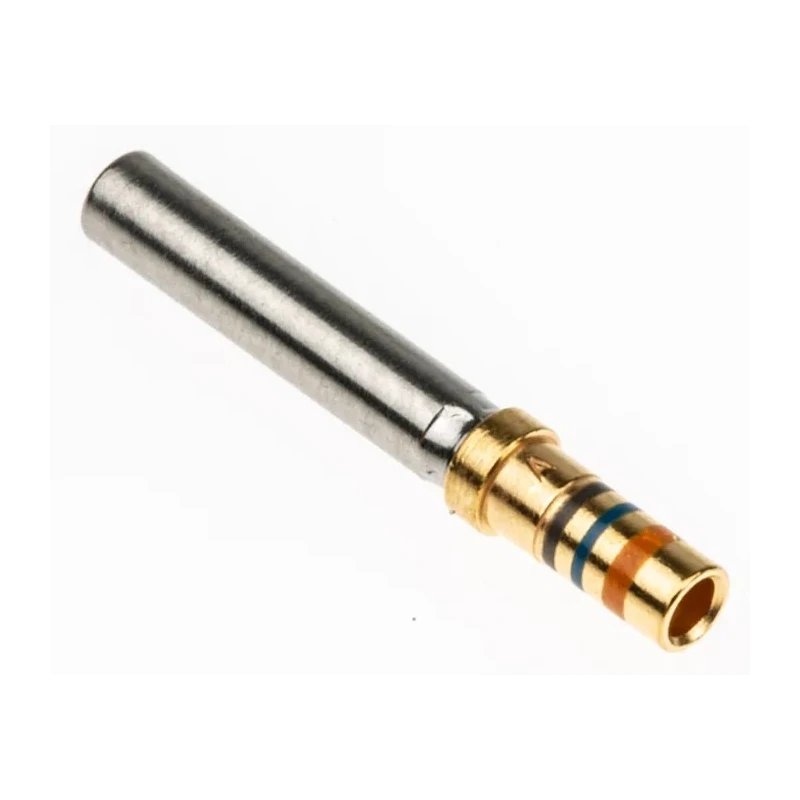

TE Connectivity AMPLIMITE 109 Series Size 20 Female Crimp D-Sub Connector Contact Gold Signal 20 AWG 205090-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 13.61mm |
| Model | 205090-1 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | AMPLIMITE 109 |
| Termination Type | Crimp |
| Contact Type | Signal |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Contact Size | 20 |
| • Post diameter | 0.04 mm |
| • Colour coded | Orange, Blue, Grey |
| 680-9210 | Crimp snap-in pin contact 24-20 awg, insulation diameter 1.83mm |
| 680-9222 | Crimp snap-in socket contact 24-20 awg, insulation diameter 1.83mm |
| 782-6196 | Posted pin contact |
| 782-6250 | Crimp snap-in pin contact 28-26 awg, insulation diameter 1.83mm |
Key Features
- Compatible with 20 AWG to 24 AWG wire sizes for versatile applications.
- Contact size 20 ensures effective signal transmission and 7.5A contact current rating.
- Constructed with copper alloy and gold plating for durable and corrosion-resistant performance.
- Crimp termination type for secure wire connections in electronic assemblies.
- Compact length of 13.61 mm to fit AMPLIMITE series 109 D-sub connectors.
- Color coded options include orange, blue, and grey for easy identification.
- Designed to snap-fit securely into connector housings for efficient assembly.
- Suitable for industrial, electronic components, and computer interface connector applications.
Product Description
TE Connectivity 205090-1 AMPLIMITE 109 Series Size 20 Female Crimp D-Sub Connector Contact is a high-precision electrical contact designed for signal transmission within D-sub connectors. It is engineered for use with 20 AWG to 24 AWG wire sizes and offers a robust 7.5A current rating. The contact is fabricated from copper alloy and features a gold plating to enhance conductivity and resistance to corrosion.
The contact measures 13.61 mm in length and is terminated using a crimp method, providing reliable and durable wire termination without soldering. The snap-fit design allows for quick and secure insertion into matching connector housings, simplifying assembly processes.
This connector contact is color coded in orange, blue, and grey variants to facilitate easy wiring identification and troubleshooting. It complies with AMPLIMITE 109 series standards but does not carry additional certifications. This product is ideal for industrial electronics, computing equipment, communication devices, and various manufacturing environments where precision and reliability are paramount.
Additional versions and accessories are available, including packs of 5 or bulk packs of 1000 for large-scale applications. For ease of maintenance and installation, specialized insertion/extraction tools are also recommended.
Compatible with 20 AWG to 24 AWG wire sizes for versatile applications. Contact size 20 ensures effective signal transmission and 7.5A contact current rating. Constructed with copper alloy and gold plating for durable and corrosion-resistant performance.
Crimp termination type for secure wire connections in electronic assemblies. Compact 13.61 mm length to fit AMPLIMITE 109 series housings. Color coded orange, blue, and grey for wiring identification. Snap-fit design for efficient assembly into connectors.
Ideal for industrial, laboratory, manufacturing, and electronic equipment use. Explore more TE Connectivity connectors and electronic components at EnvMart for robust, high-quality D-sub connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum wire size compatible with this connector contact is 20 AWG.
This contact has a current rating of 7.5A.
It is constructed from copper alloy and features gold plating for enhanced conductivity and corrosion resistance.
The length of this connector contact is 13.61 mm.
This connector contact is compatible with wire sizes ranging from 20 AWG to 24 AWG.
The wire is terminated using a crimp method, providing a secure connection without soldering.
The connector contact is available in color-coded options of orange, blue, and grey for easy identification.
Yes, it is designed to snap-fit securely into connector housings for efficient assembly.
It is suitable for industrial electronics, computing equipment, communication devices, and various manufacturing environments.
The contact size of this connector is size 20.
This connector contact is manufactured in India.
Yes, additional versions and accessories, including packs of 5 or bulk packs of 1000, are available for large-scale applications.
